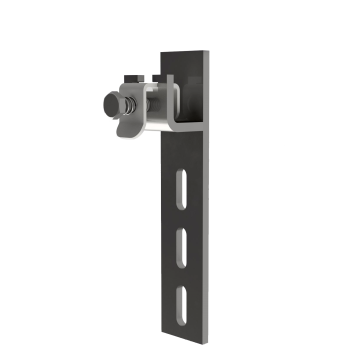

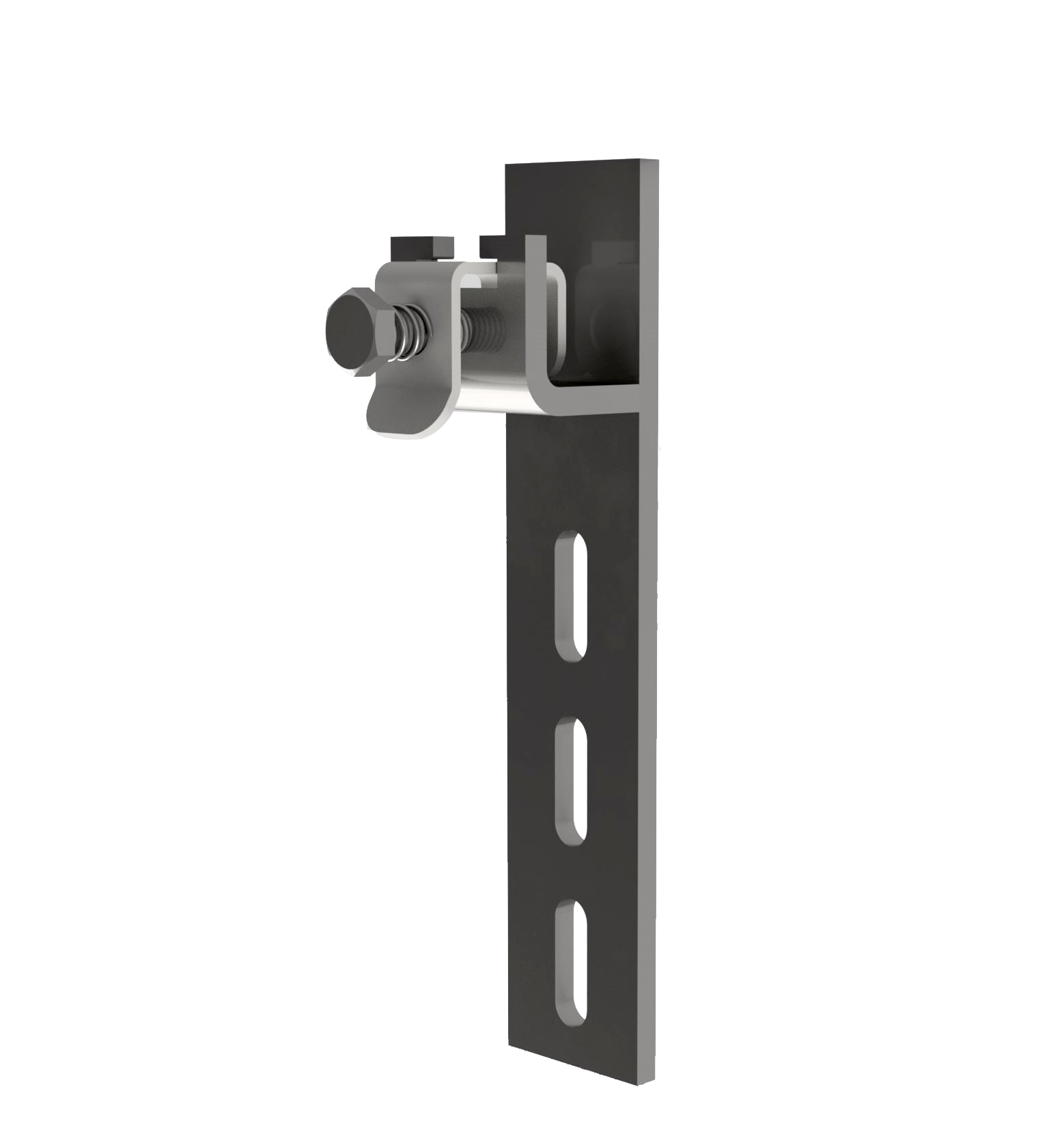

Beam clamp with jetty

Beam clamp with jetty

Art.no.: 173275
Weight/item: 0.312 kg

Field of application

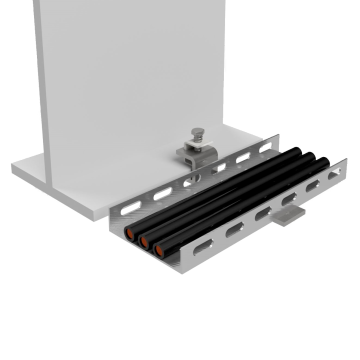

  • For quick and easy connection of light cable trays to T-beams in the ship‘s structure without welding

Advantages

  • Using just a single screw connection with little time required for fixing in comparison to the conventional fastenings
  • Direct and flexible attachment to any position on the T-beam
  • Subsequent fixing also possible after conclusion of the "hot work"
  • Slip-resistant fastening to the bulb profile without damaging the corrosion protection due to clamp mechanism
Surface:
zinc flake coated
Customs tariff number:
73269060
Tightening torque:
6 Nm
Product type:
Girder clamps
Material:
Steel

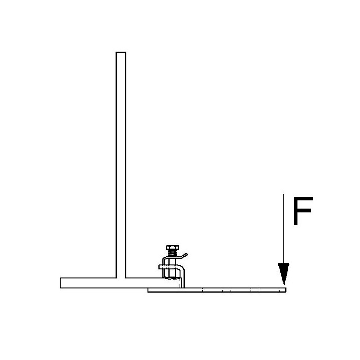

Max. recommended load:
200 N
