Girder clamps with clearance hole

Girder clamps with clearance hole

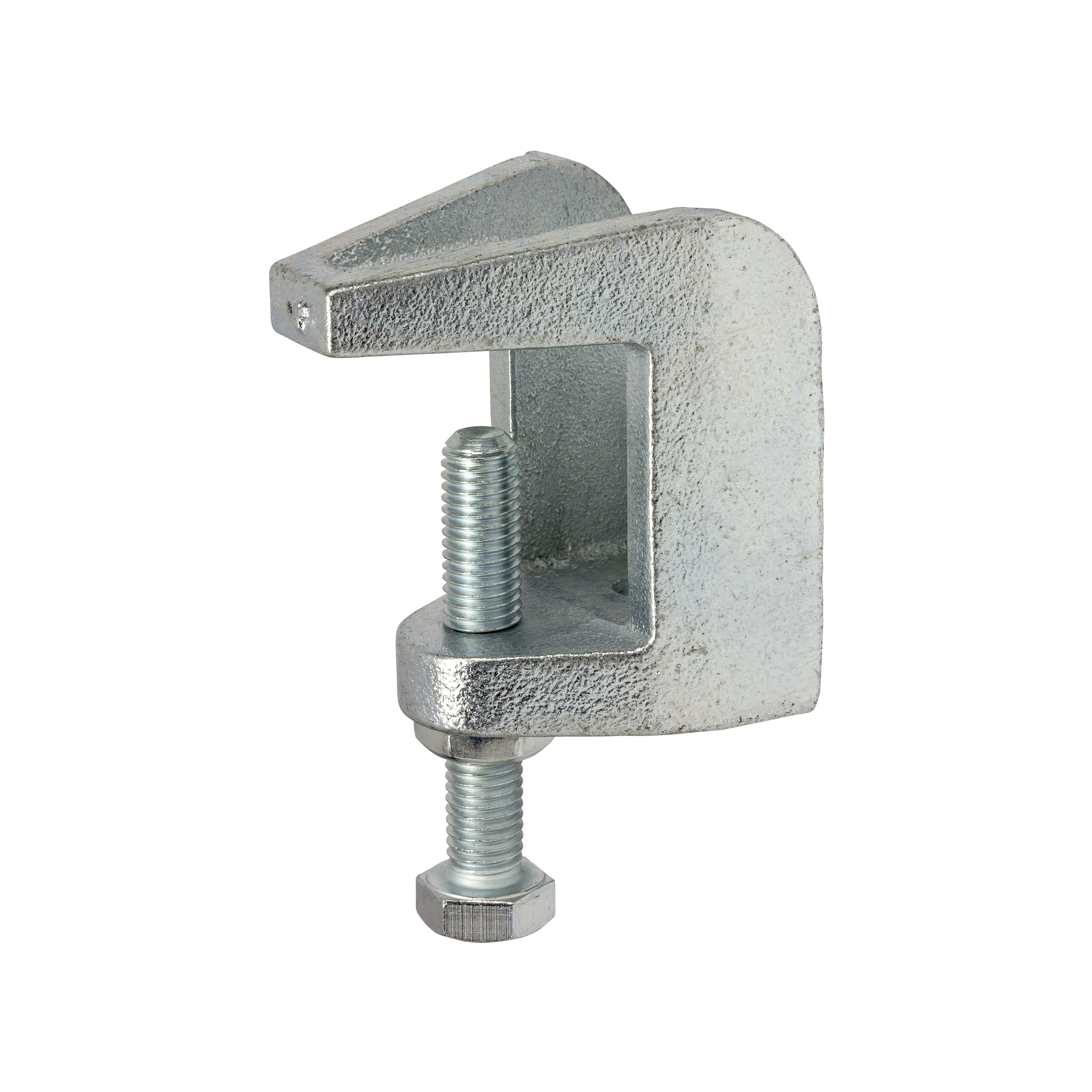

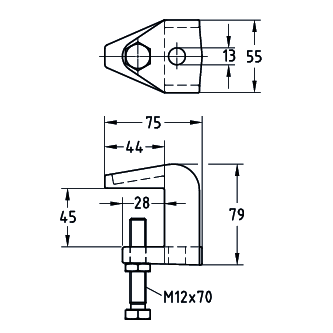

GIRDER-CLAMP for M12 Clamping thickn. 6-42 mm

Art.no.: 130241
Sales unit: 1 Pieces
Weight/item: 0.582 kg

Field of application

  • For attachment of pipelines, air ducts and sprinkler systems on steel girders
  • For suspension of threaded pins and threaded rods for the attachment of pipe clamps or crossbeams made with MPC-Support channels

Advantages

  • Attachment on girder without welding or drilling
  • Subsequent alignment on the girder possible
  • High loading capacity
  • Quick, subsequent height adjustment of the threaded rods at the non-threaded through-hole
Material
Steel
Design
with clearance hole
Max. recommended load
3500 N
Size
M12
Customs tariff number
73259910
Basic data text
GIRDER-CLAMP for M12 Clamping thickn. 6-42 mm
Product type
Girder clamps
Clamping thickness S
6 - 42 mm
Surface
galvanised
Further technical details can be found in the data sheet.
