MPC-Sliding shoes

New

MPC-Sliding shoes

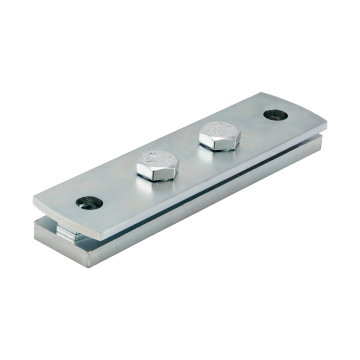

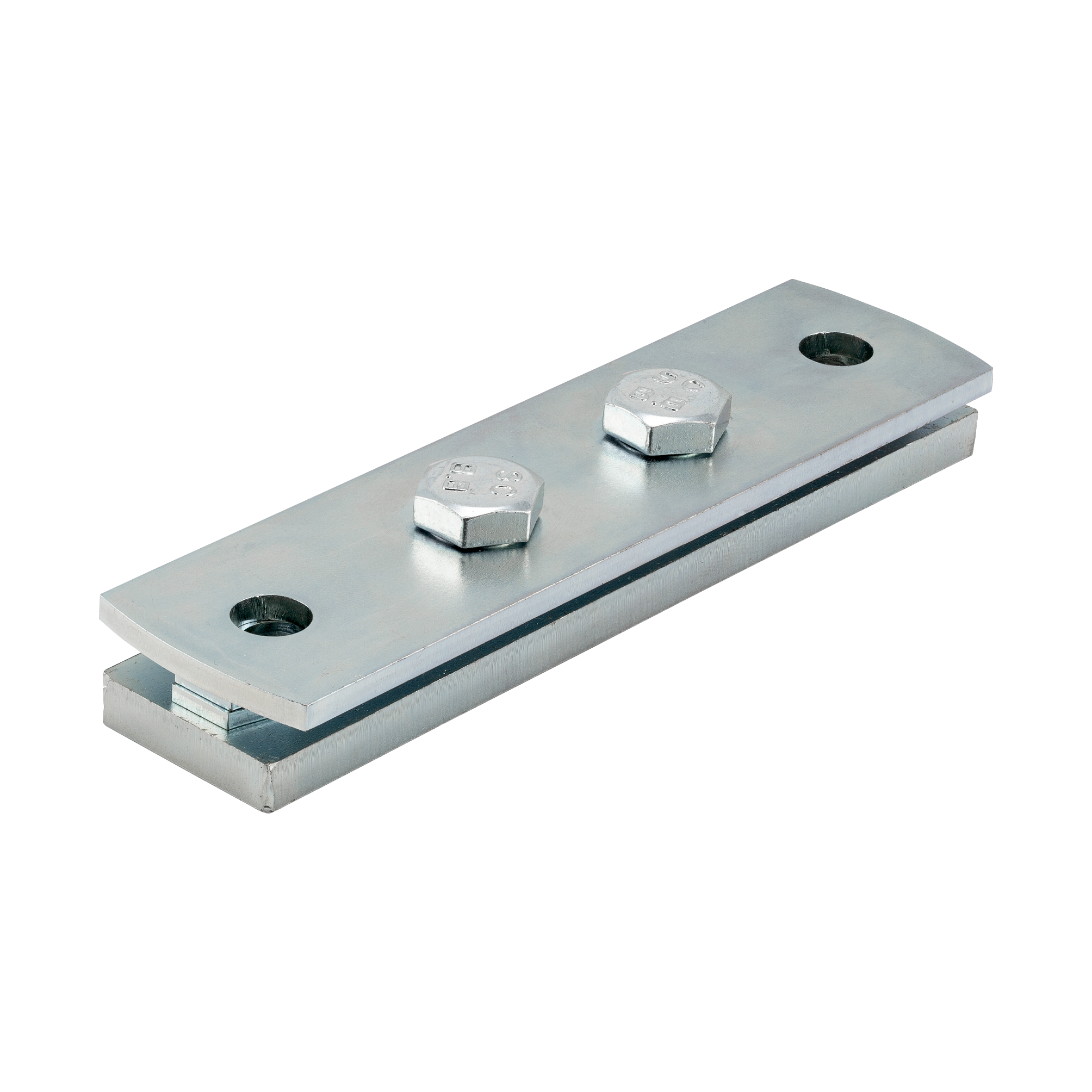

MPC-Sliding shoe M10 for MPC-support channels 38/40-40/120, galvanised

Art.no.: 179745

Sales unit:	25 Pieces
Weight/item:	0.585 kg

Field of application

Attachment of pipes with thermal, axial expansion
Suitable for pipes mounted from above and from below
Perfect solution for plastic pipes with large sliding movement
For use in dry interiors

Advantages

Length of sliding distance can be freely determined by suitable selection of support channel length
Can be mounted crosswise with slide guides 2.3 kN and 4 kN for large pipe movements in axial and radial directions
For use with MPC-Support channels from 38/40 to 40/120

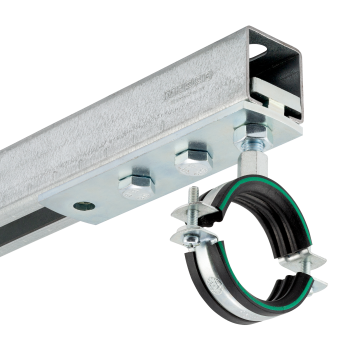

One or two pipe clamps can be mounted depending on the application

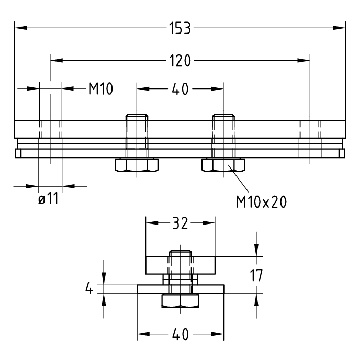

Connecting thread: M10
Basic data text: MPC-Sliding shoe M10 for MPC-support channels 38/40-40/120, galvanised
For profiles: 38/40-40/120
Temperature range: to +300 °C
Customs tariff number: 73089098
Surface: galvanised
Product type: Expansion points
Material: Steel
