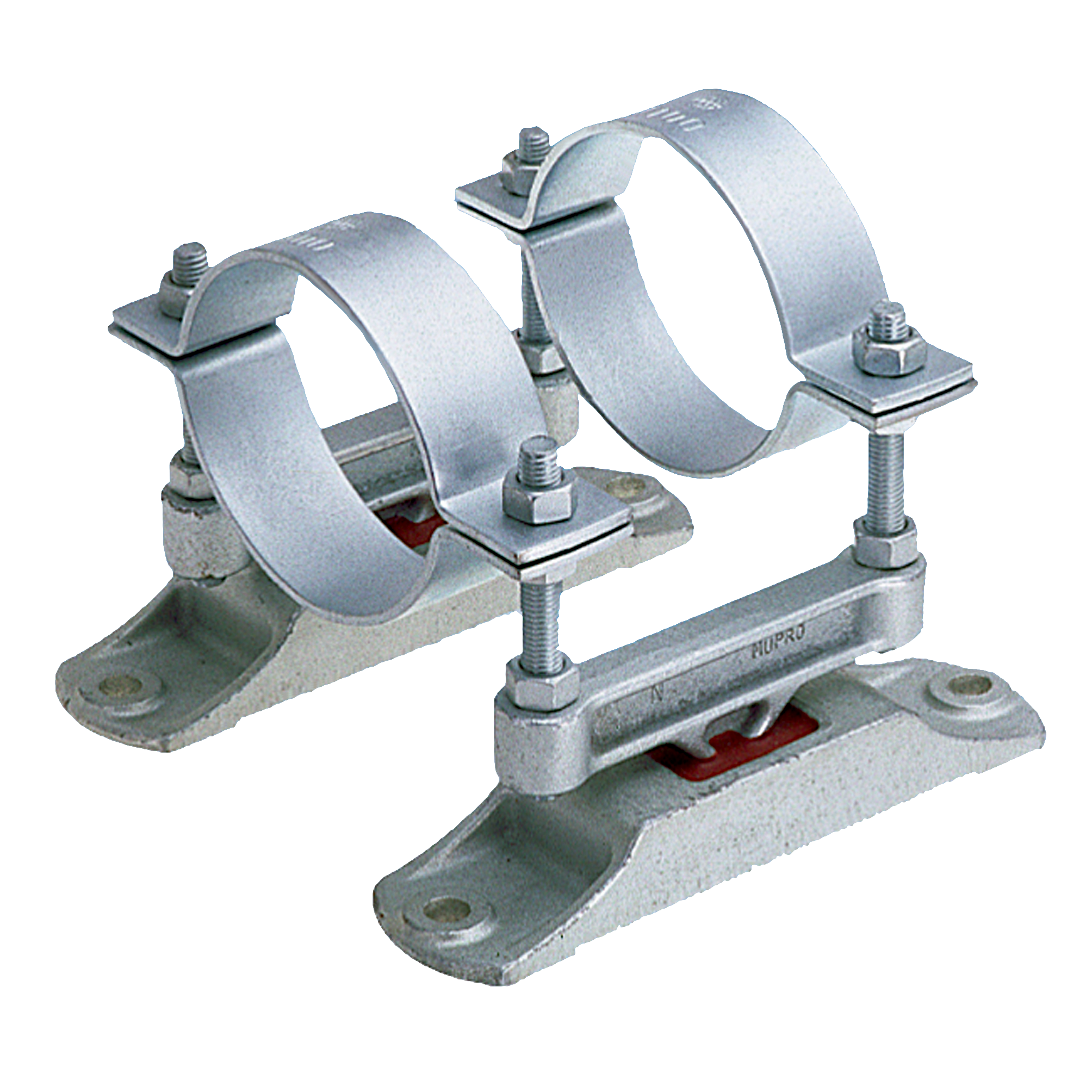

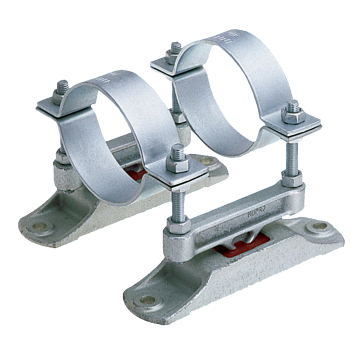

PHONOLYT® Anchor points

double kit, galvanised

Display variants as list

Type:

dB(A) 27 dB(A) 40

Clamping range:

Field of application

The ideal component for vibration controlled anchor points for pipes to meet the vibration control requirements of DIN 4109 and VDI 4100
Suitable for ceiling, bulkhead or floormounting
Floor mounting of pipe and duct lines
Ideal as vibration-isolated pipeline anchor point for downpipe support or riser pipes

Advantages

Isolates the pipe acoustically from the building structure
Practical downpipe support with perfect vibration decoupling
Double kit for high loadings
Special feature: Also approved for alternating load directions on plastic piping
Lowest possible distance from the building structure attainable
Continuously adjustable wall distance due to threaded pins
Practical design made for easy installation
Fixed point for all pipe types, regardless of pipe flanges and bushings
Sound level reduction by up to 40 dB(A)
Silicone-free
