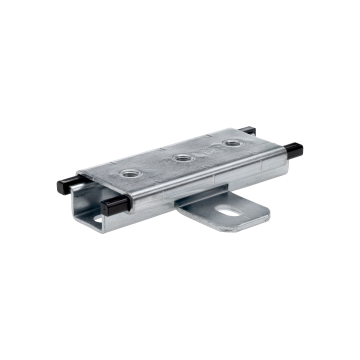

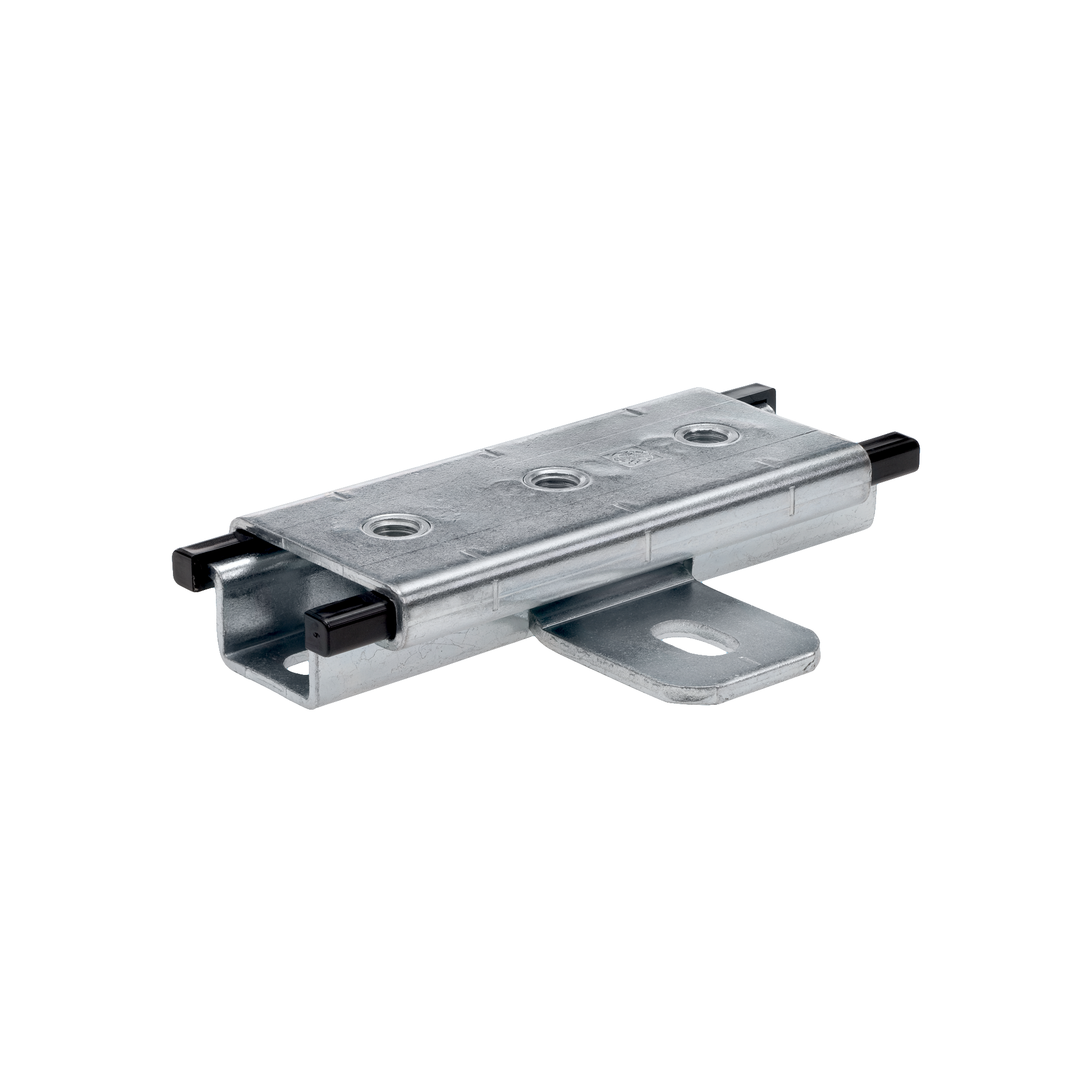

Slide guides 2.3 kN

Display variants as list

Connecting thread:

M8/M10 M12

Surface:

galvanised V2A V4A

Field of application

Attachment of pipes with thermal, axial expansion
A variety of installation possibilities (floor-mount, ceiling-mount, wallmount)
Suitable for pipes mounted from above and from below
Expansion assembly attachment as cross connection for pipe movement in axial and lateral directions

Advantages

Flat, compact design for secure mounting in cramped mounting situations
Large slide travel of up to 76 mm
High-level application flexibility due to triple connection facilities for pipe clamps
One or two pipe clamps can be mounted depending on the application
