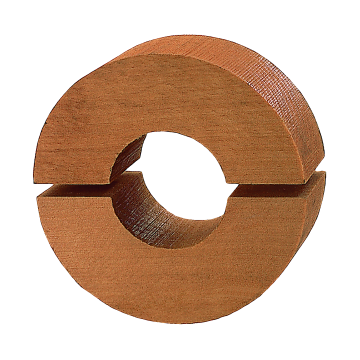

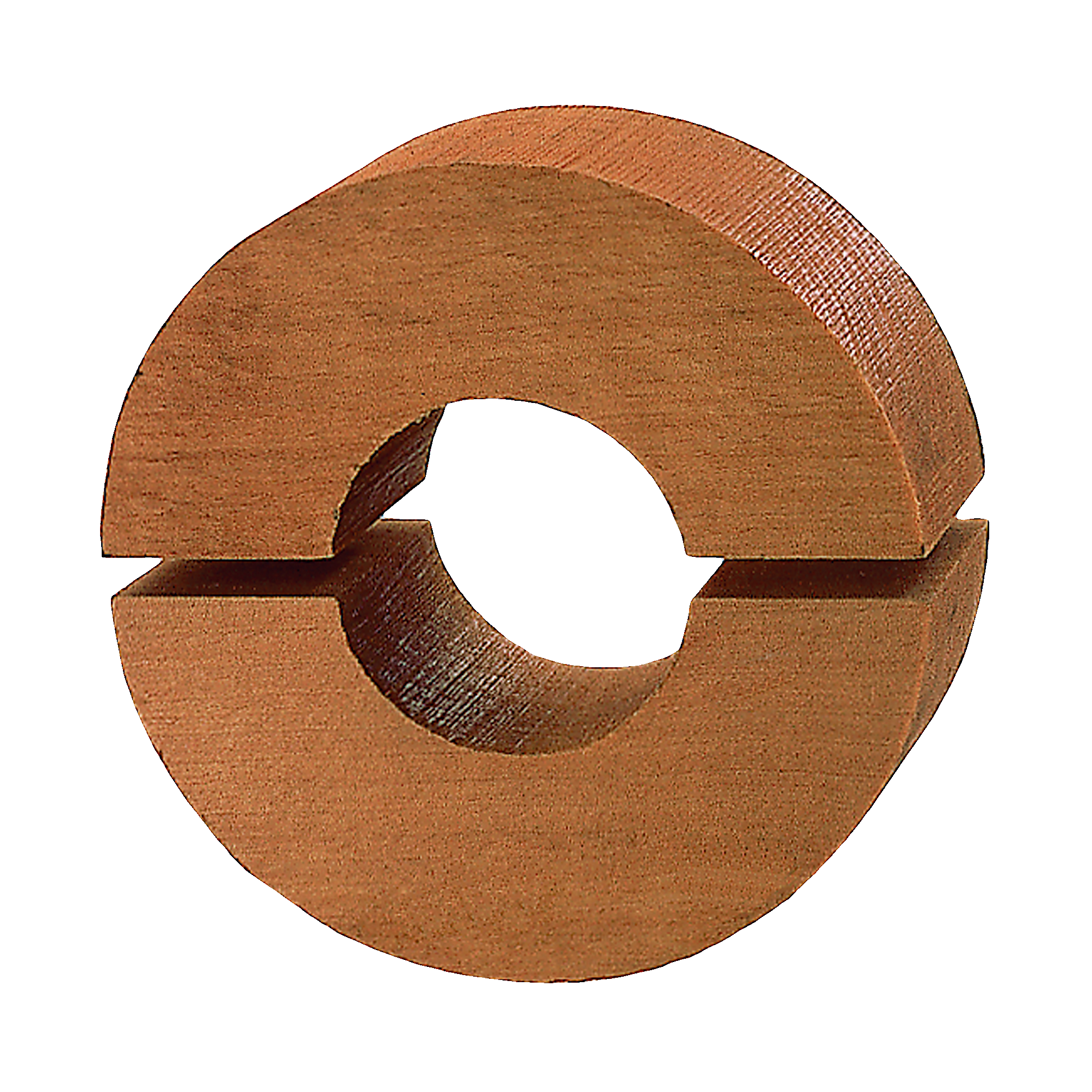

Wooden blocks

Wooden blocks

Display variants as list

Insulation thickness:

20 mm 30 mm

Pipe outer Ø D:

21.3 mm 26.9 mm 33.7 mm 42.4 mm 48.3 mm 60.3 mm 64 mm 76.1 mm 88.9 mm 102 mm 108 mm 110 mm 114.3 mm 125 mm 133 mm 139.7 mm 159 mm 168.3 mm 219.1 mm 267 mm 273 mm

Field of application

Thermal decoupled pipe attachment in the field of refrigeration

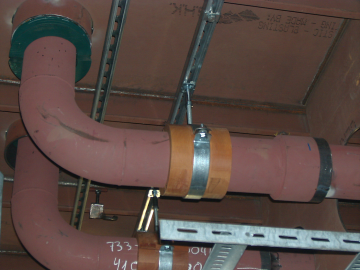

Insulation of anchoring point for chilled water pipes
For friction attachments taking up axial pipe forces
For indoor use

Advantages

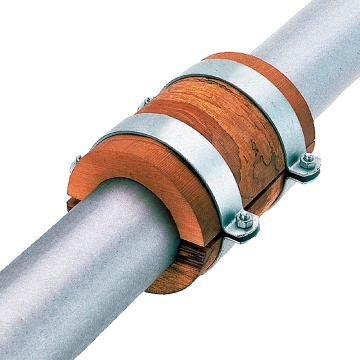

Direct between pipe clamp and cold pipe: decreased heat flux between pipe and environment

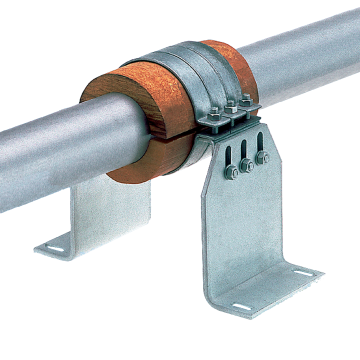

Simple attachment to the pipe insulation
Suitable for all pipe materials
Attachment possible at any point on a smooth pipe

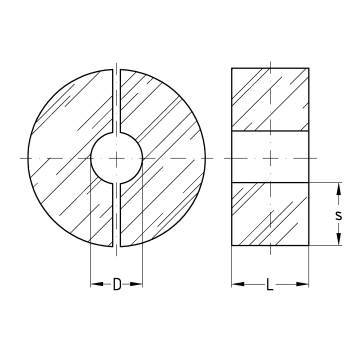

Shell length [mm]:: 200 mm
Temperature range:: 0 °C to +90 °C
Product type:: Anchor points

Wooden blocks

	Product number	Insulation thickness	Pipe outer Ø D
	115874	20 mm	21.3 mm
	115951	20 mm	26.9 mm
	116174	20 mm	33.7 mm
	116286	20 mm	42.4 mm
	116325	20 mm	48.3 mm
	116445	20 mm	60.3 mm
	116484	20 mm	64 mm
	116526	20 mm	76.1 mm
	116565	20 mm	88.9 mm
	115495	20 mm	102 mm
	115531	20 mm	108 mm
	115566	20 mm	110 mm
	115602	20 mm	114.3 mm
	115638	20 mm	125 mm
	115673	20 mm	133 mm
	115709	20 mm	139.7 mm
	115748	20 mm	159 mm
	115787	20 mm	168.3 mm
	115910	20 mm	219.1 mm
	115987	20 mm	267 mm
	116023	20 mm	273 mm
	115883	30 mm	21.3 mm
	115960	30 mm	26.9 mm
	116183	30 mm	33.7 mm
	116295	30 mm	42.4 mm
	116334	30 mm	48.3 mm
	116454	30 mm	60.3 mm
	116493	30 mm	64 mm
	116538	30 mm	76.1 mm
	116574	30 mm	88.9 mm
	115504	30 mm	102 mm
	115540	30 mm	108 mm
	115575	30 mm	110 mm
	115611	30 mm	114.3 mm
	115647	30 mm	125 mm
	115682	30 mm	133 mm
	115718	30 mm	139.7 mm
	115757	30 mm	159 mm
	115796	30 mm	168.3 mm
	115919	30 mm	219.1 mm
	115996	30 mm	267 mm
	116032	30 mm	273 mm
