MPT-Support profile Q100 with 3 slots hot-dip galvanised

MPT-Support profile Q100 with 3 slots

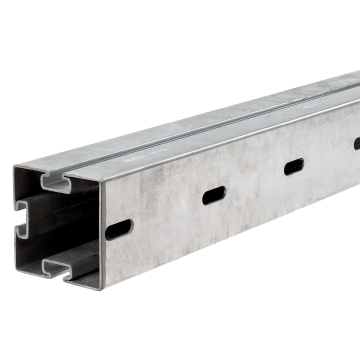

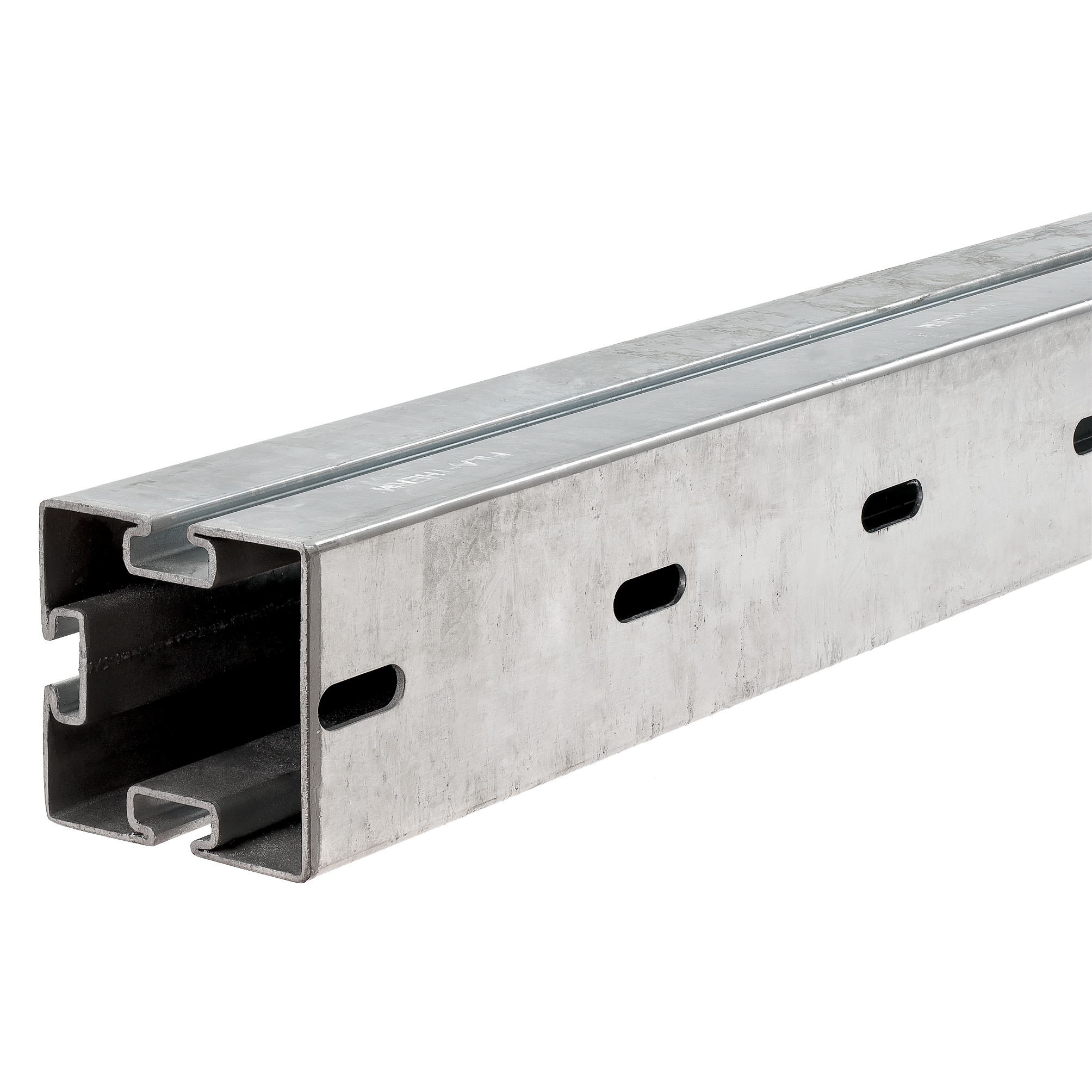

MPT-Support profile Q-100 2.5 mm, length: 6,000 mm, with 3 slots, hot-dip galvanised

Art.no.: 142547
Sales unit: 1 Pieces
Weight/item: 64.800 kg

Field of application

  • For support structures used in shipbuilding and on industrial and plant building sites
  • Additional mounting slot increases connection possibilities, for example for 3D fixtures

Advantages

  • For construction of safe structures due to the high load-bearing capacity of the profile
  • Saves time and costs due to functional accessories that are matched to the support profile
  • High corrosion protection due to standardised hot-dip galvanising ensures flexible implementation outdoors and indoors
  • Clean-cut appearance by the use of MPT-protection caps
Product type
Support channels
eCl@ss 11.1
23-36-01-90
eCl@ss 7.1
23-36-01-90
Profile
Q100-2.5 3-slots
Customs tariff number
72166110
Thickness s
2.5 mm
Basic data text
MPT-Support profile Q-100 2.5 mm, length: 6,000 mm, with 3 slots, hot-dip galvanised
Support channel systems
for MPT-Profiles
Material
Steel
Surface
hot-dip galvanised
Further technical details can be found in the data sheet.
