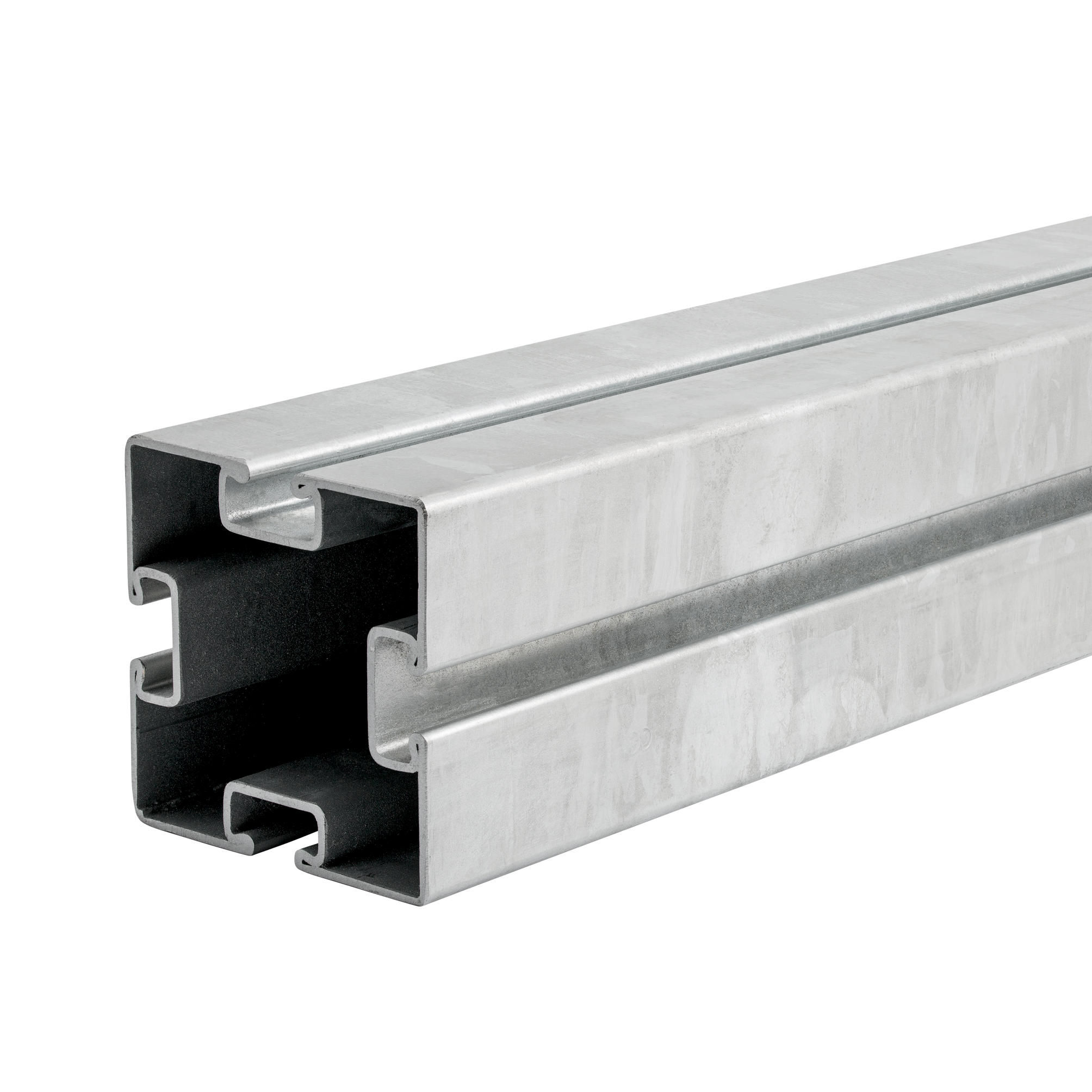

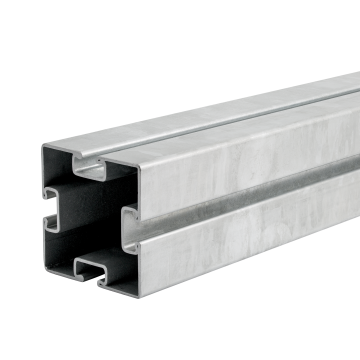

MPT-Support profile Q100 with 4 slots

MPT-Support profile Q100, 2.5 mm, length: 6,000 mm, with 4 slots, hot-dip galvanised

Art.no.: 166816

Sales unit:	1 Pieces
Weight/item:	74.400 kg

Field of application

For support structures used in shipbuilding and on industrial and plant building sites
Additional mounting slot increases connection possibilities, for example for 3D fixtures

Advantages

For construction of safe structures due to the high load-bearing capacity of the profile
High corrosion protection due to standardised hot-dip galvanising ensures flexible implementation outdoors and indoors
Saves time and costs due to functional accessories that are matched to the support profile
Continuous fastening groove for flexible arrangement of accessories and fastening components on all sides
Clean-cut appearance by the use of MPT-protection caps

Support channels:: for MPT-Profiles
Product type:: Support channels
eCl@ss 11.1:: 23-36-01-90
Surface:: hot-dip galvanised
Thickness s:: 2.5 mm
Basic data text:: MPT-Support profile Q100, 2.5 mm, length: 6,000 mm, with 4 slots, hot-dip galvanised
Material:: Steel
Customs tariff number:: 72166110

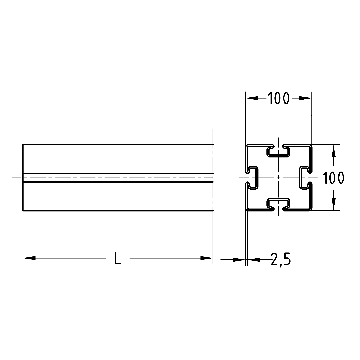

Profile:: Q100-2.5 4-slots
eCl@ss 7.1:: 23-36-02-90
