Supporting angle without DÄMMGULAST® Resilient pad | hot-dip galvanised

Supporting angle

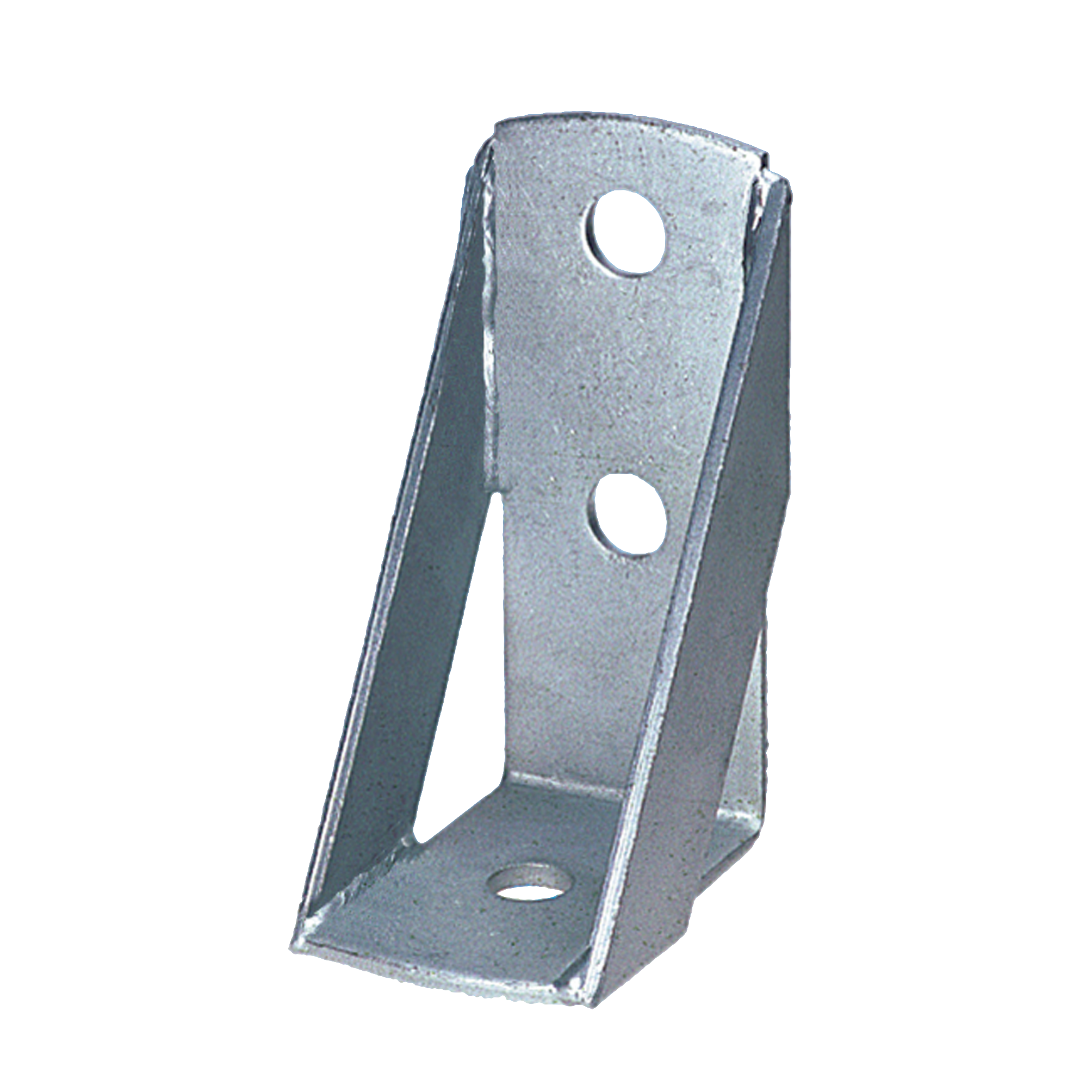

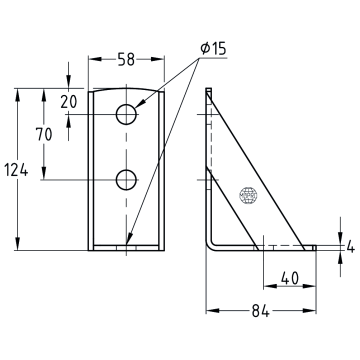

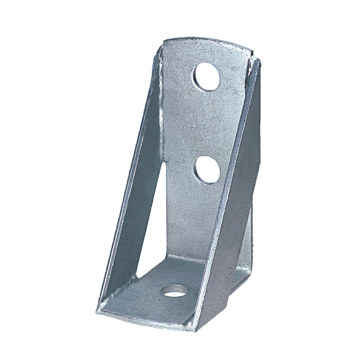

Supporting angle without resilient pad, hot-dip galvanised

Art.no.: 127801
Sales unit: 25 Pieces
Weight/item: 0.530 kg

Field of application

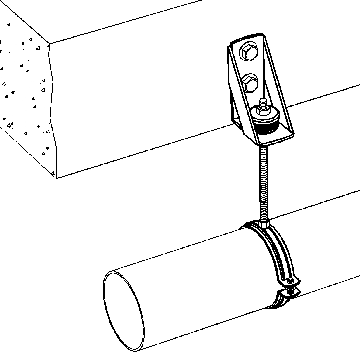

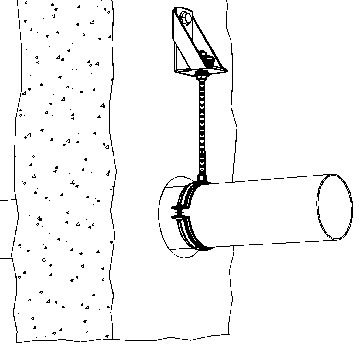

  • For lateral suspension of pipelines on reinforced concrete beams
  • As substructure for the attachment of fittings, e.g. water meters

Advantages

  • Angle element for higher requirements for stability of mounting structures
  • Usable as bracket for supporting heavy loads close to a wall

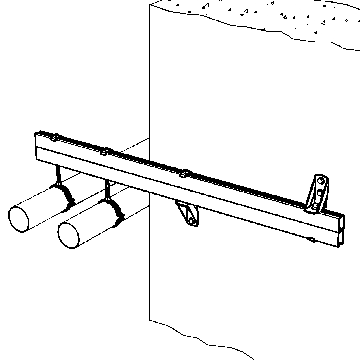

  • For supporting cross-beams in confined spaces
DNV approval:
Yes
Design:
without DÄMMGULAST® Resilient pad
Product type:
Connecting parts
Material:
Steel
Customs tariff number:
73269060
Surface:
hot-dip galvanised
Max. recommended load:
5000 N
eCl@ss 7.1:
23-36-02-90
Basic data text:
Supporting angle without resilient pad, hot-dip galvanised
eCl@ss 11.1:
23-36-02-90
