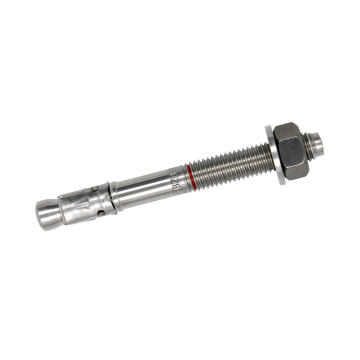

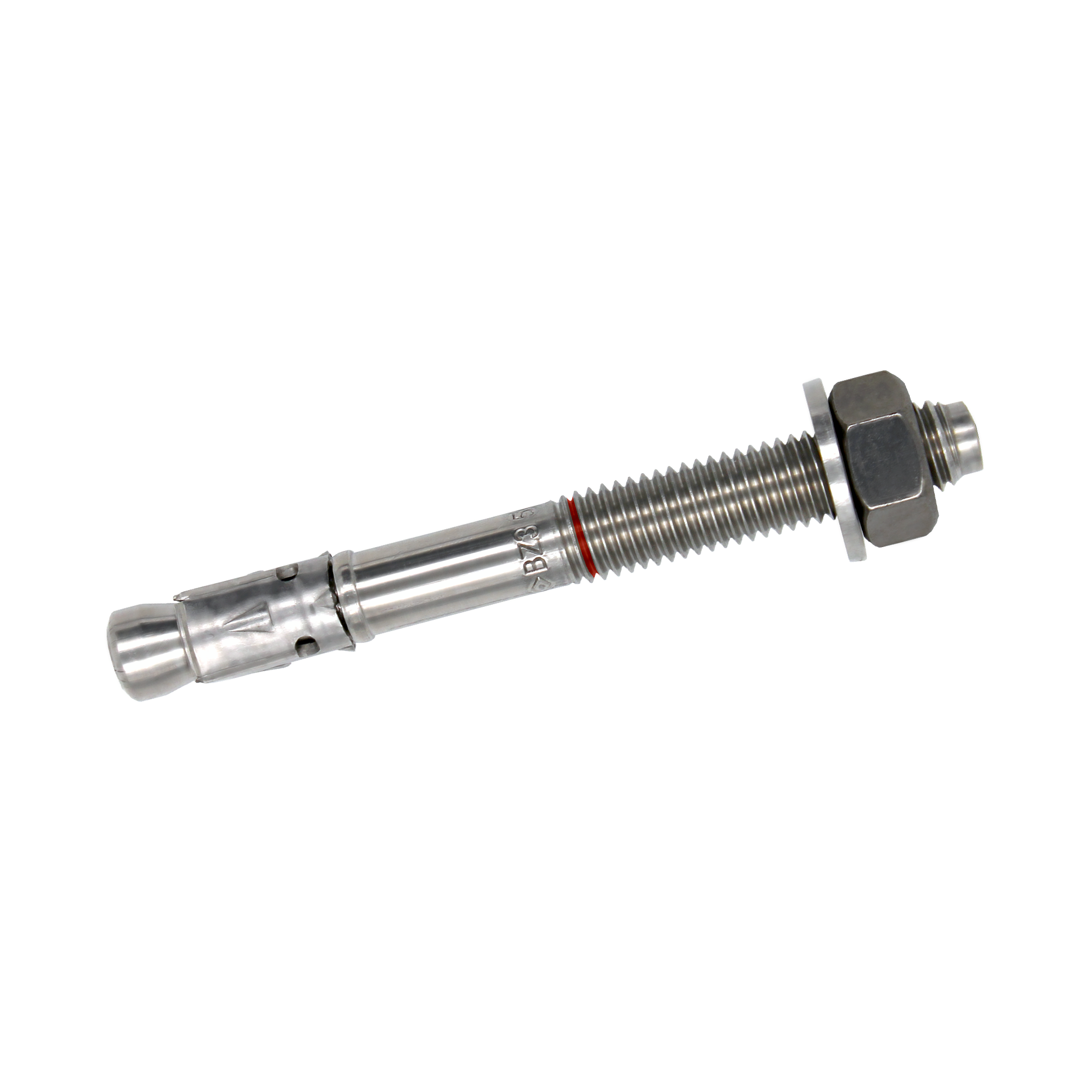

Heavy-duty anchors BZ3

stainless steel

Display variants as list

Connecting thread:

M8 M10 M12 M16

Select a variant for further information, images and documents.

Field of application

Heavy-duty anchor with highest approved tensile and shear loads and variable anchorage depths

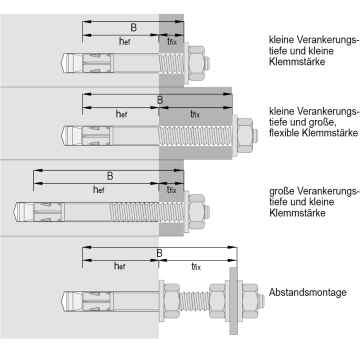

In many cases, with the same setting depth as before, the BZ3 allows higher loads, which can be further increased by deeper setting; this can save fixing points
For anchorages of medium-weight to heavy loads in cracked and non-cracked concrete (concrete quality C20/25 - C50/60)
Load range 3.4 kN - 39.7 kN
Attachment of wall hanger brackets, support channels, base plates, constructions made of metal and wood, cable trays, railings, etc.
Fastenings in earthquake areas

Advantages

Low minimum anchorage depths due to higher permissible loads
Due to the high flexibility optimal adaptation to the installation situation for maximum efficiency
Significant increase in performance under the influence of earthquakes
Colored marking of the minimum anchoring depth
European Technical Assessment ETA-19/0619 for use in cracked and non-cracked concrete (option 1), under seismic action of categories C1 and C2 and for use in fire (R30 - R120)
Shock approval from the Federal Office for Civil Protection, Switzerland
