Base plates with combination nut

Base plates with combination nut

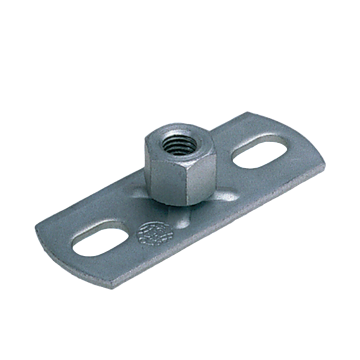

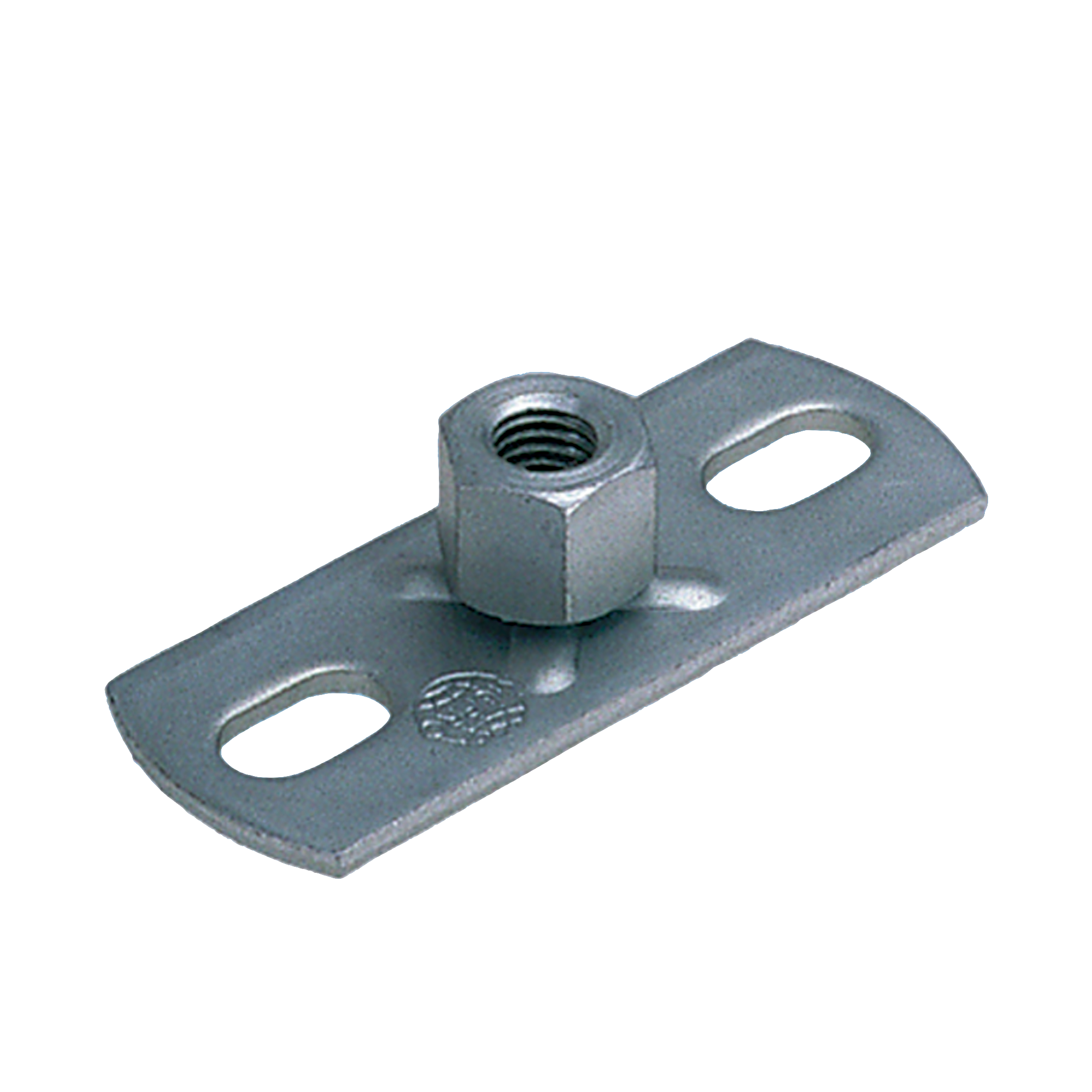

Base plate size 1, M8/M10, galvanised

Art.no.: 112397

Sales unit:	50 Pieces
Weight/item:	0.072 kg

Dimension L: 80 mm
Hole-centre distance C: 54 mm
eCl@ss 7.1: 23-15-90-90
Material: Steel
Dimension s: 3 mm
Basic data text: Base plate size 1, M8/M10, galvanised
Size: 1
Dimension b: 30 mm
Oblong hole V: 9 x 16 mm
Product type: Base plates
Customs tariff number: 73269060
Thread: M8/M10
Surface: galvanised
eCl@ss 11.1: 23-15-90-90

Further technical details can be found in the data sheet.

Base plates with combination nut, galvanised
