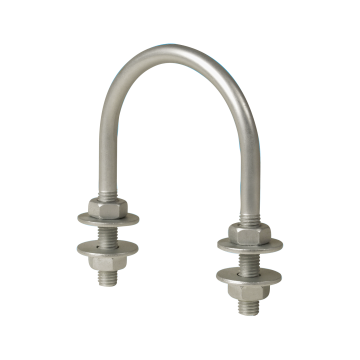

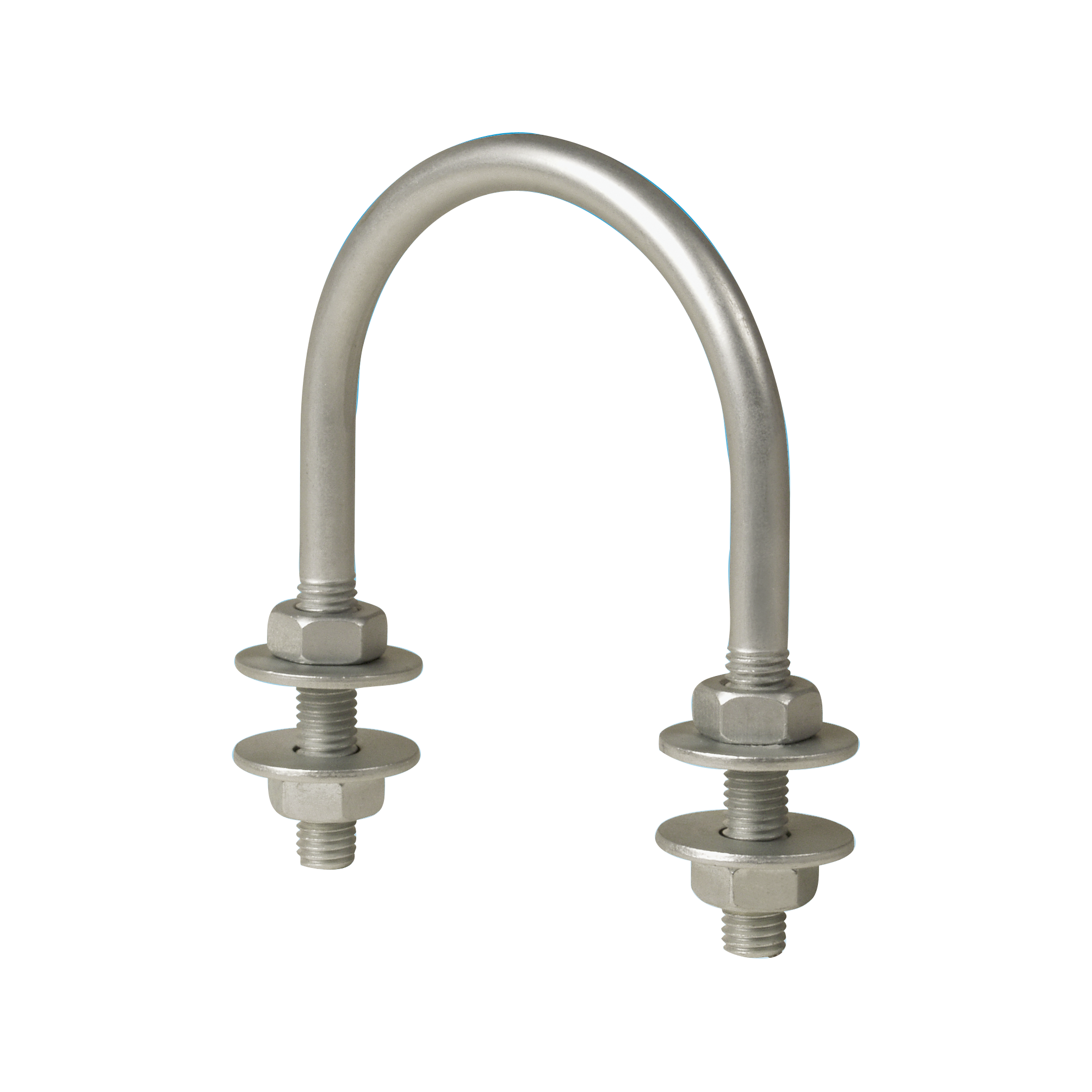

U-bolts

U-bolts

similar to DIN 3570, form A, galvanised

Display variants as list

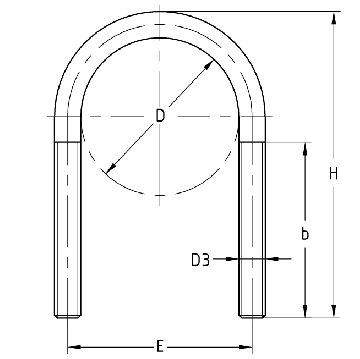

Pipe outer Ø D:

22 mm 27 mm 34 mm 43 mm 49 mm 61 mm 77 mm 89 mm 108 mm 115 mm 133 mm 140 mm 159 mm 169 mm 220 mm 273 mm 324 mm

Field of application

For simple pipe attachment in shipbuilding and industrial construction
Complies with the VdS CEA guideline 4001 for sprinkler systems

Advantages

Design similar to DIN 3570
Standard material S235JR (St37) acc. to DIN EN 10025
Electrolytically galvanised
Supplied with 4 nuts acc. to DIN 934. In the M8 to M12 versions, also with 4 washers

Product type:: U-bolts

U-bolts, similar to DIN 3570, form A, galvanised

	Product number	Pipe outer Ø D
	113317	22 mm
	113320	27 mm
	113323	34 mm
	113326	43 mm
	113329	49 mm
	124881	61 mm
	124884	77 mm
	124887	89 mm
	124920	108 mm
	124929	115 mm
	124932	133 mm
	124935	140 mm
	124938	159 mm
	124941	169 mm
	125109	220 mm
	113174	273 mm
	113180	324 mm
