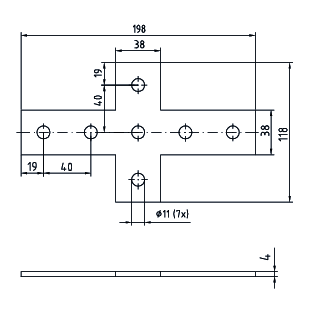

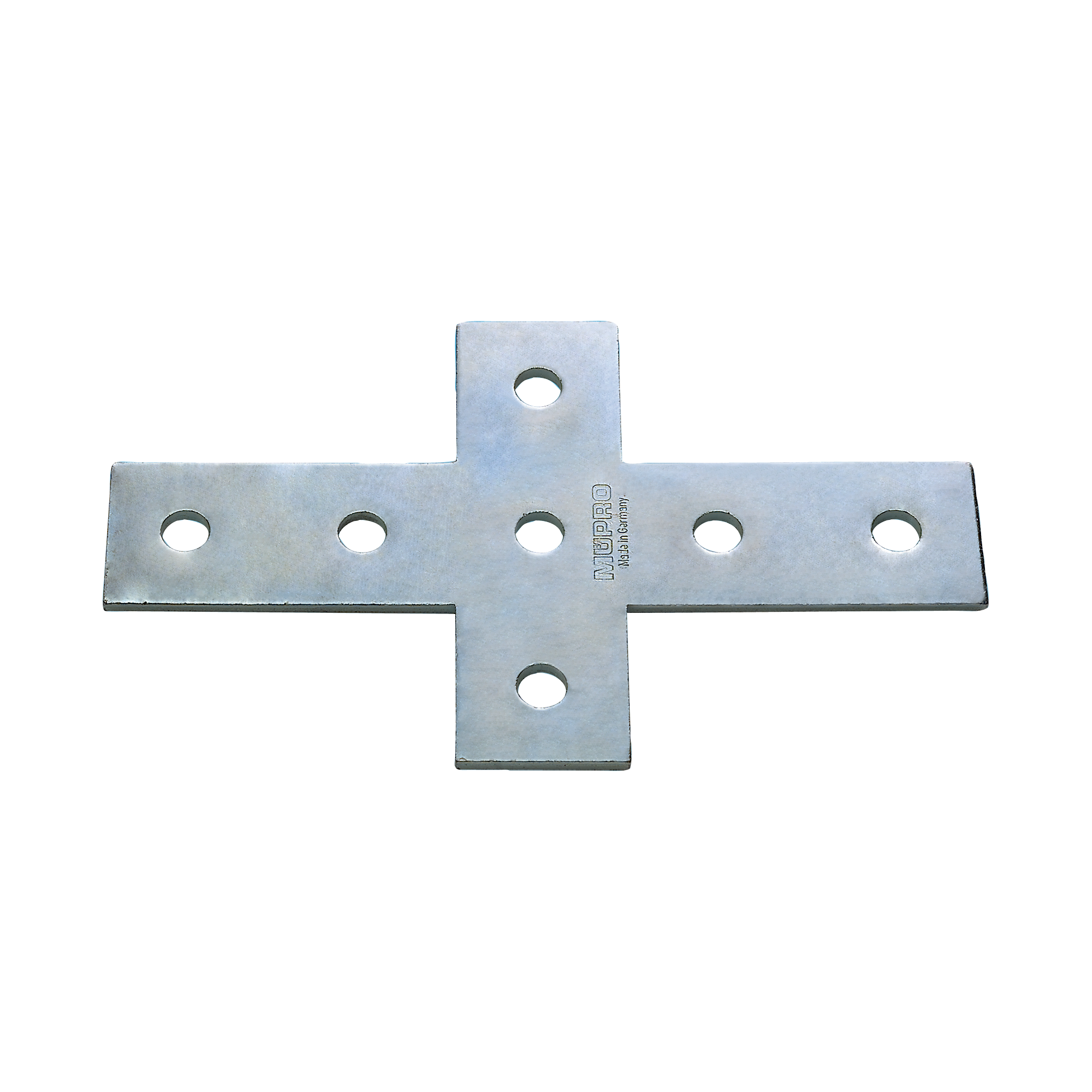

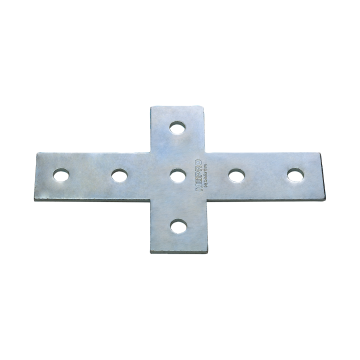

Cross connection plate

Cross connection plate

MPC/MPR-Cross connector plate for profiles 38/24-40/120, 41/21-41/124, galvanised

Art.no.: 113778
Sales unit: 25 Pieces
Weight/item: 0.315 kg

Field of application

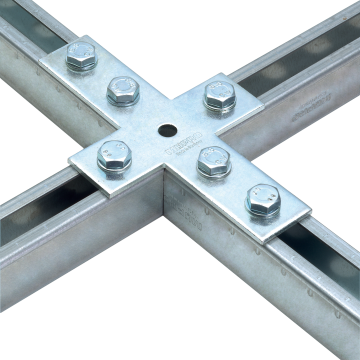

  • Cross connection plate for connecting up to four MPC- and MPR-Support channels in one plane

Advantages

  • Attachment at the rear perforation of the MPC- and MPR-Support channel leaves the channel slot free in all directions and enables fast installation of add-on parts
  • Ideal connection element for creating subconstructions for ceiling suspensions
Support channels:
for MPC- and MPR-Profiles
Customs tariff number:
73269060
Material:
Steel
Product type:
Connecting parts
For profiles:
38/24-40/120, 41/21-41/124
Basic data text:
MPC/MPR-Cross connector plate for profiles 38/24-40/120, 41/21-41/124, galvanised
eCl@ss 11.1:
23-36-02-90
Surface:
galvanised
eCl@ss 7.1:
23-15-92-90
