MPT-Cantilever bracket Q50-2.5, Q100-2.5, Q100-3.5, Q150-2.5

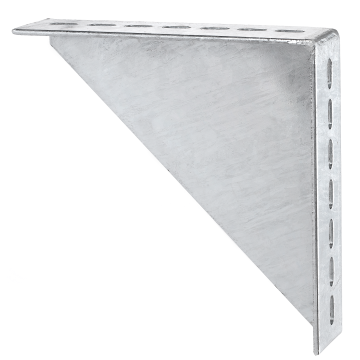

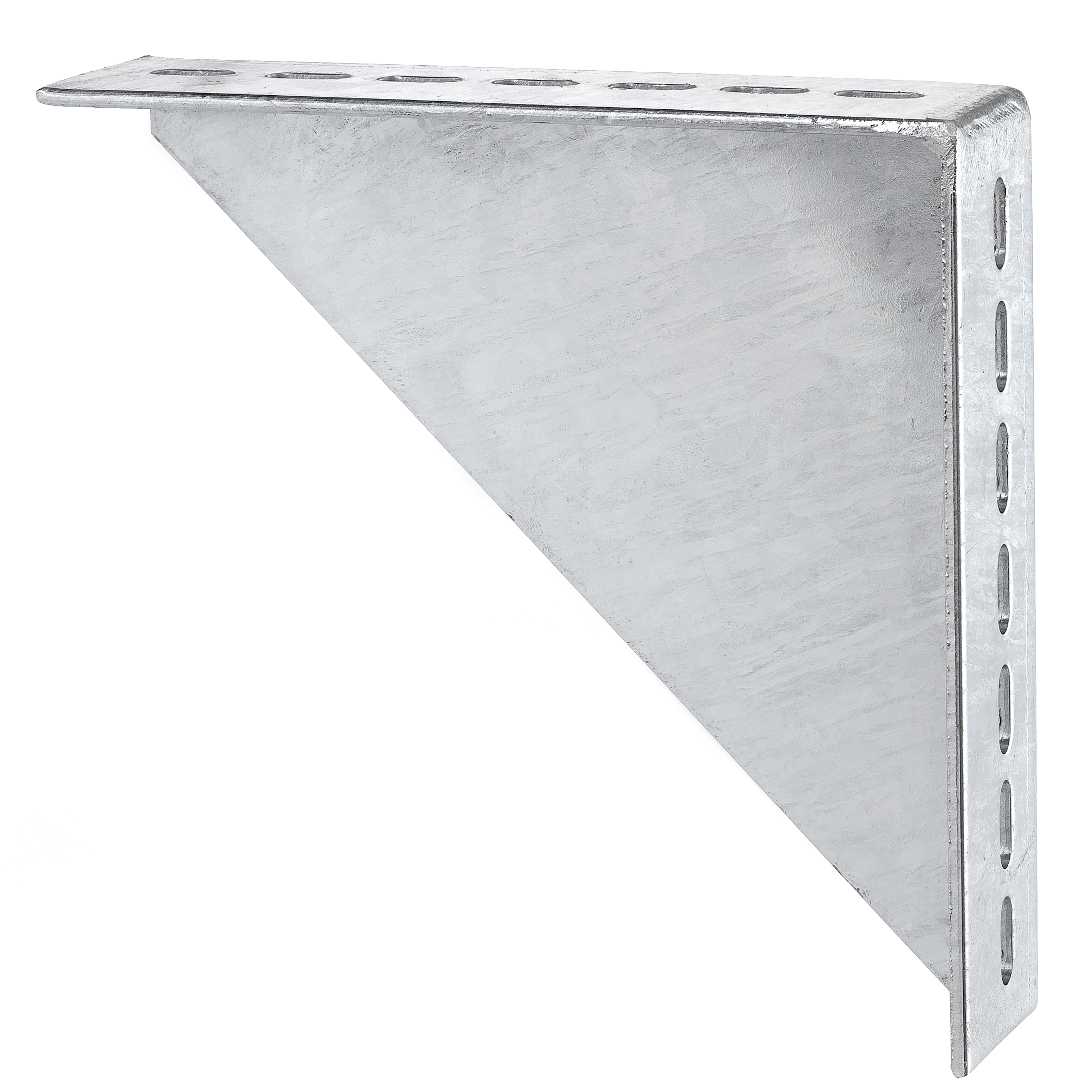

MPT-Cantilever bracket

MPT-Cantilever bracket, for MPT-Support profiles Q50, Q100, Q150, hot-dip galvanised

Art.no.: 143401
Sales unit: 1 Pieces
Weight/item: 5.030 kg

Field of application

  • For attachment on ceiling, wall and floor
  • Strong cantilever bracket for accommodation of pipelines and aggregates in shipbuilding and on industrial and plant building sites

Advantages

  • Great variety of mounting possibilities when used with MPT-Support profiles
  • High corrosion protection due to standardised hot-dip galvanising ensures flexible implementation outdoors and indoors

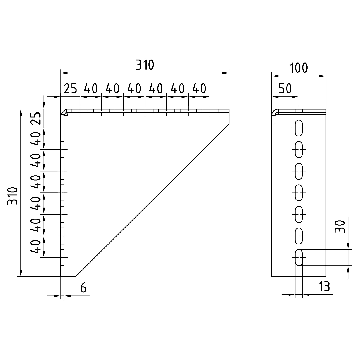

Size:
310 x 310 x 100 mm
eCl@ss 7.1:
23-36-02-90
Material:
Steel
Customs tariff number:
83025000
Surface:
hot-dip galvanised
Product type:
Connecting parts
Support channels:
for MPT-Profiles
Basic data text:
MPT-Cantilever bracket, for MPT-Support profiles Q50, Q100, Q150, hot-dip galvanised
eCl@ss 11.1:
23-36-02-90
For profiles:
Q50-2.5, Q100-2.5, Q100-3.5, Q150-2.5
