Reinforcement angle galvanised

Reinforcement angle

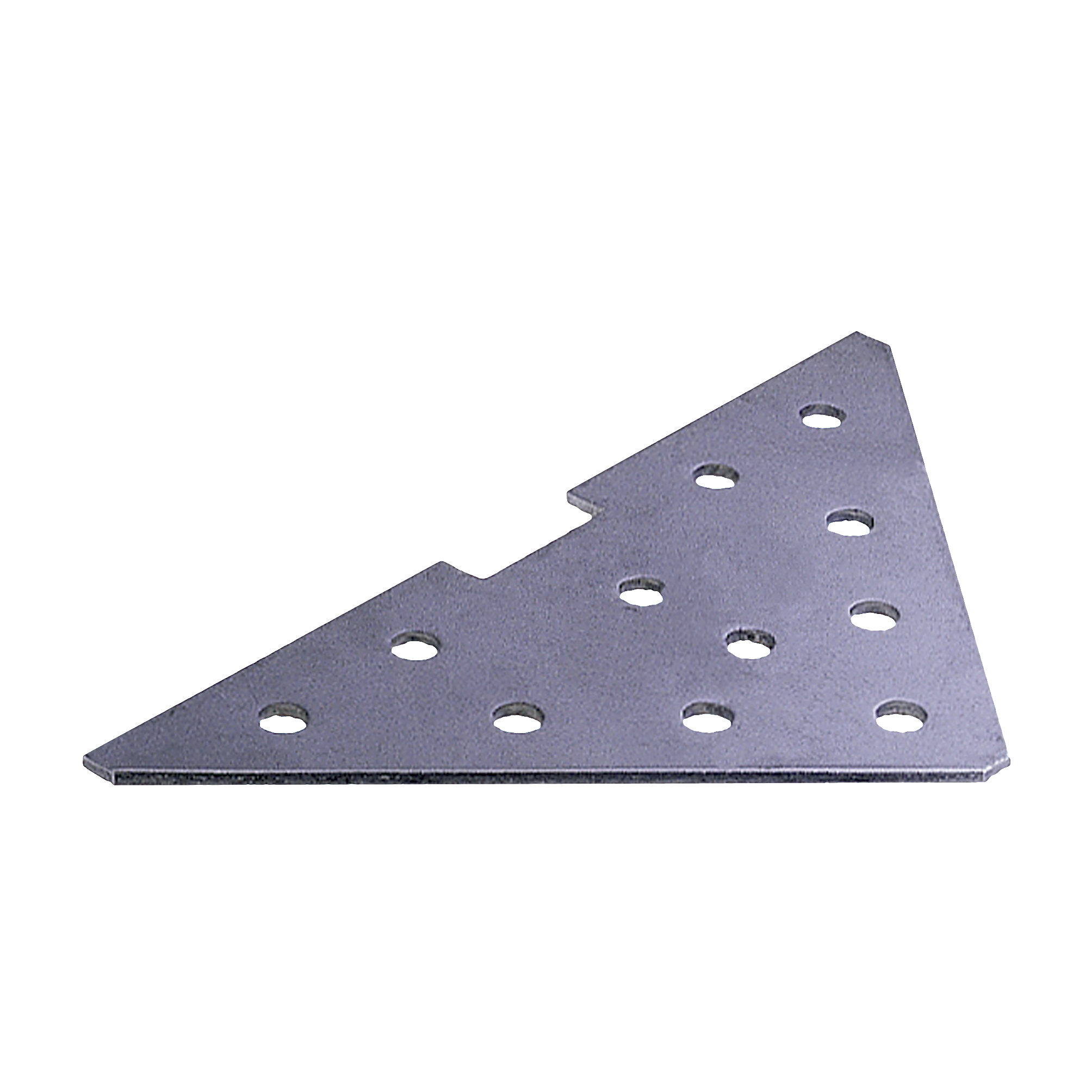

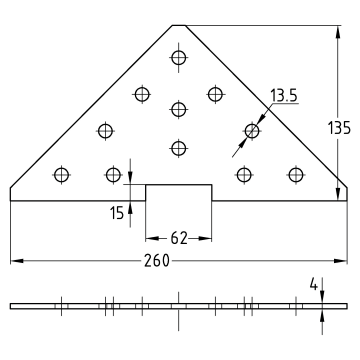

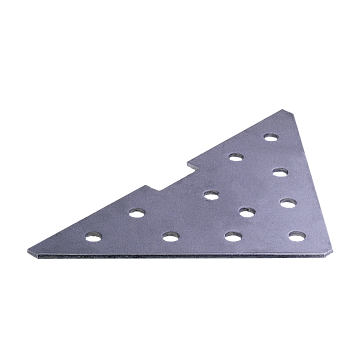

MPC/MPR-Reinforcement angle for profiles 38/24-40/120, 41/21-41/124, galvanised

Art.no.: 159436
Sales unit: 1 Pieces
Weight/item: 0.530 kg

Field of application

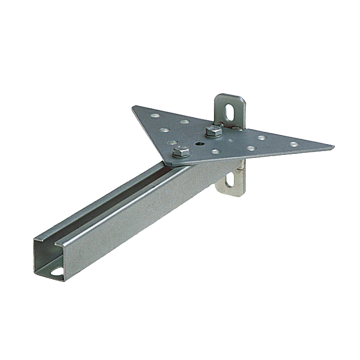

  • Support for MPC- and MPR-Wall hanger brackets where transverse forces occur

Advantages

  • Suitable for wall, ceiling and floor mounting

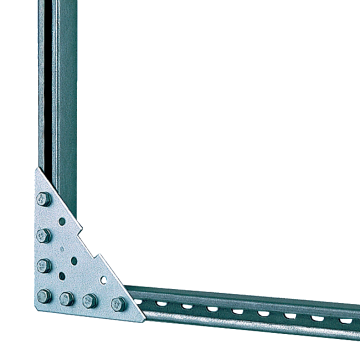

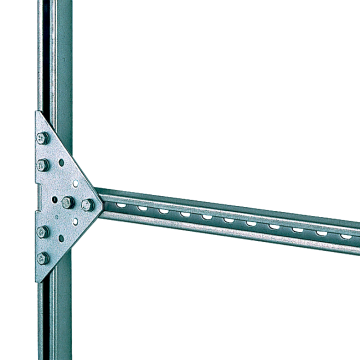

  • Further mounting facilities for angle and joint connection of MPC- and MPR-Support channels
  • 2 connecting screws and MPC-Rail nuts are included in the supply
  • Suitable for support of wall hanger brackets 38/40, 40/60, 41/21, 41/41
eCl@ss 11.1:
23-36-02-90
Product type:
Connecting parts
eCl@ss 7.1:
23-15-92-90
For profiles:
38/24-40/120, 41/21-41/124
Material:
Steel
Surface:
galvanised
Support channels:
for MPC- and MPR-Profiles
Customs tariff number:
73089098
Basic data text:
MPC/MPR-Reinforcement angle for profiles 38/24-40/120, 41/21-41/124, galvanised
