67 / 116
Cramping connector

Cramping connector

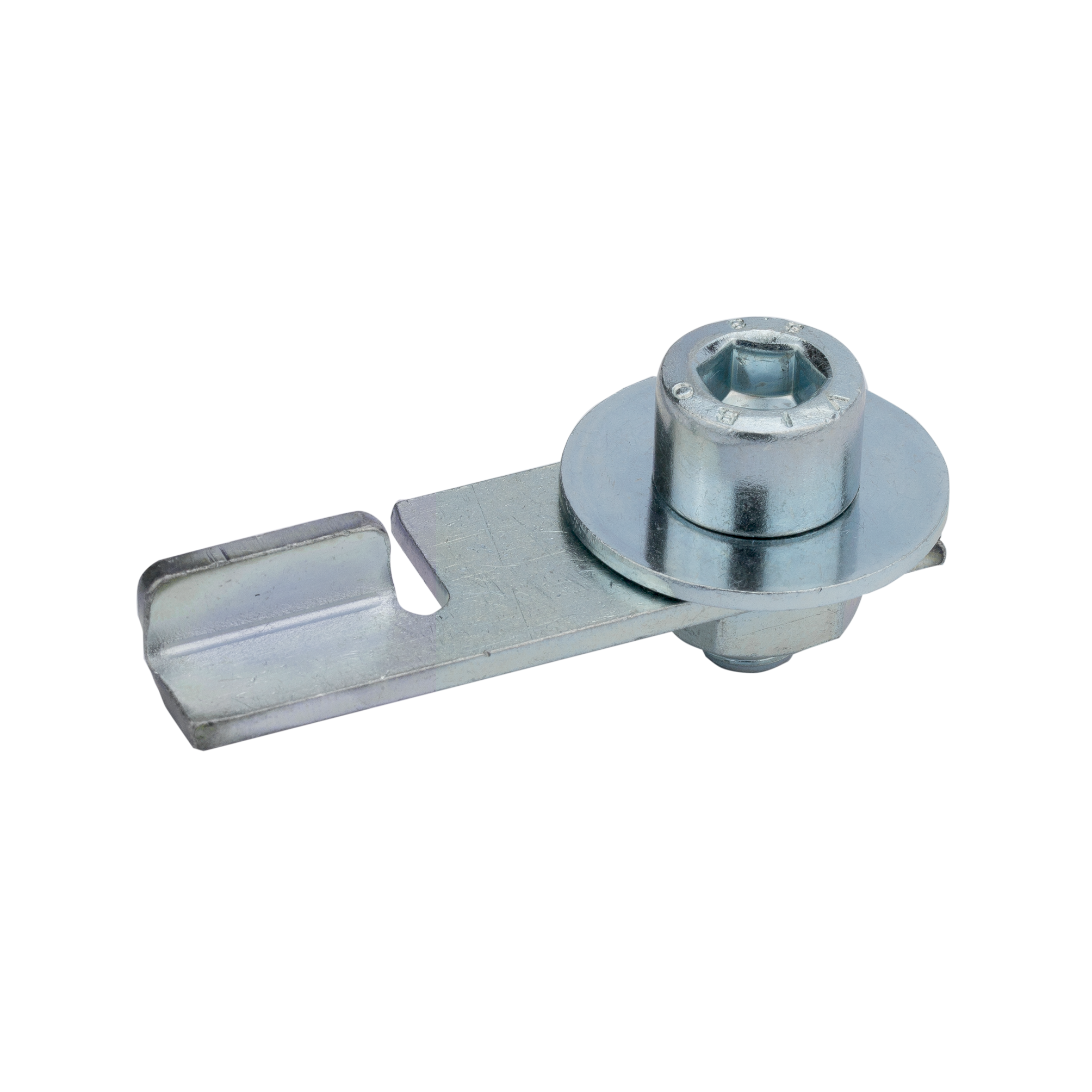

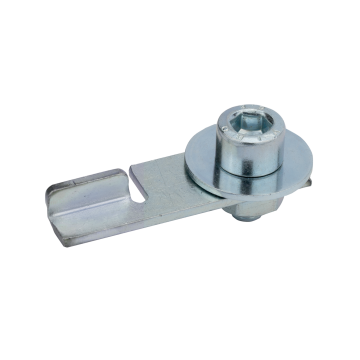

MPC/MPR-Cramping connector with screw, galvanised

Art.no.: 163050
Sales unit: 25 Pieces
Weight/item: 0.058 kg

Field of application

  • Connection of MPC- and MPR-Support channels at the rear perforations for creating H-profiles
  • For use in dry interiors

Advantages

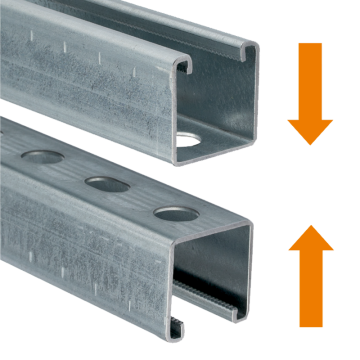

  • Easy connection of MPC- and MPR-Support channels back to back

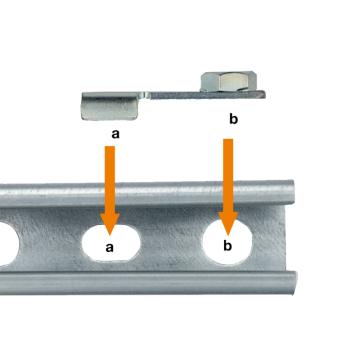

  • Secure fixing via the rear perforation
  • Perfect solution for creating H-profiles on site
Basic data text
MPC/MPR-Cramping connector with screw, galvanised
eCl@ss 7.1
23-15-92-90
Support channel systems
for MPR-Profiles
Customs tariff number
73269060
eCl@ss 11.1
23-36-02-90
Surface
galvanised
Allen bolt spanner width
8 mm
Product type
Connecting parts
Material
Steel
Further technical details can be found in the data sheet.
