MPA-Installation channel 29/15 29/15/3.0 |

MPA-Installation channel 29/15

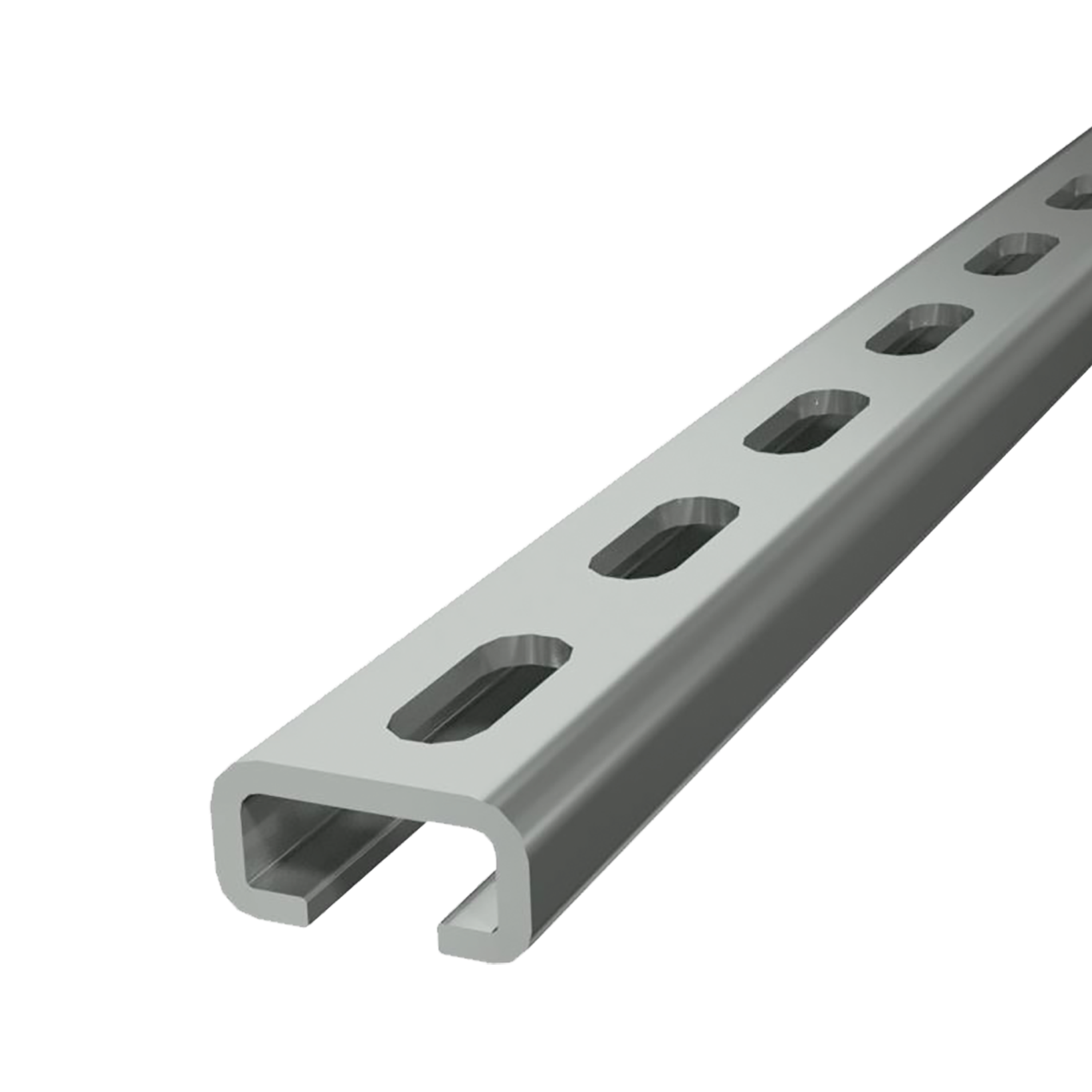

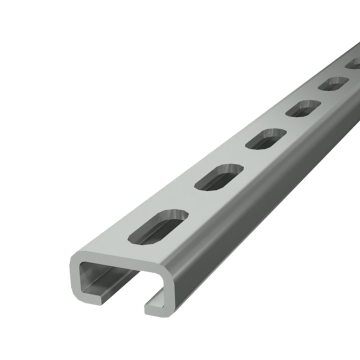

MPA-Mounting channel, 29/15/3 29,4 x 15 x 3 mm, length: 6.000 mm, seawater suitable aluminum alloy

Art.no.: 155200
Sales unit: 1 Pieces
Weight/item: 2.670 kg

Field of application

  • Fast and efficient attachment of piping and pipe routes on vessels
  • Flat support channel for the attachment of systems in areas with low overall height
  • Ideal for weight-critical applications due to low weight (0.5 kg/m)

Advantages

  • Seewater proof aluminium alloy
  • Flat and space saving design
  • High bending stiffness due to the cross-section design
  • Flexible attachment in the ceiling area, simple alignment and readjustment of systems
  • Simple assembly of support channel on bulb flat steel due to gridded hole template
Product type:
Support channels
Profile:
29/15/3.0
Customs tariff number:
76042990
Basic data text:
MPA-Mounting channel, 29/15/3 29,4 x 15 x 3 mm, length: 6.000 mm, seawater suitable aluminum alloy
Length:
6000 mm
Support channels:
for MPR-Profiles
