MPR-Construction bracket type S+

MPR-Construction bracket type S+

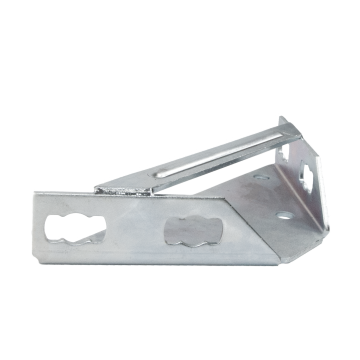

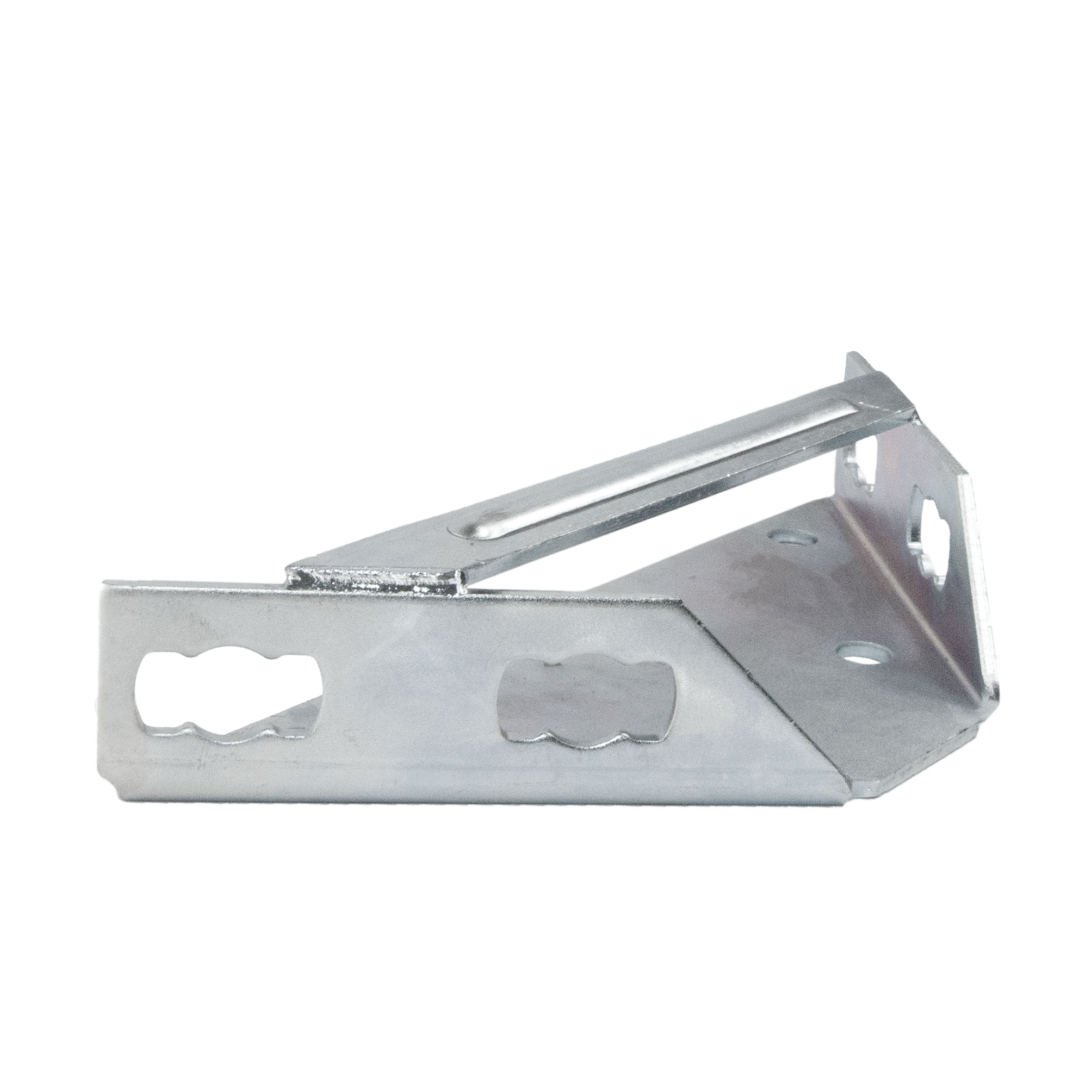

MPR-Construction angle with strut, type S+, galvanised

Art.no.: 165864
Sales unit: 10 Pieces
Weight/item: 1.015 kg

Field of application

  • Ideal connecting element for the construction of cross-beams, frames and shelving systems when used with MPR-Support channels
  • For indoor use

Advantages

  • A wide variety of installation options in MPR-Support channels and with the connection lock type S+
  • Ensures stable corner joints
  • Design with strut is fire-tested for fixings in accordance with the requirements of the MLAR (German Pipe Systems Guideline)
Customs tariff number:
73089098
DNV approval:
Yes

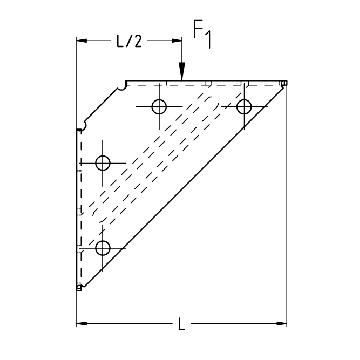

Permissible load F1:
3500 N

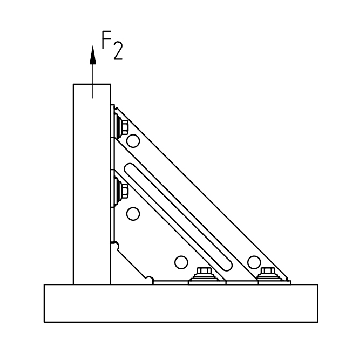

Admissible load F2 (material thickness of support channel 2.5 mm):
5000 N
Size:
198 x 198 mm
Design:
Construction bracket with strut
Support channels:
for MPR-Profiles
eCl@ss 11.1:
23-36-02-90
eCl@ss 7.1:
23-15-92-90
Fire protection certified:
Yes
Material:
Steel
Product type:
Quick-mounting system type S+
Basic data text:
MPR-Construction angle with strut, type S+, galvanised
Surface:
galvanised
