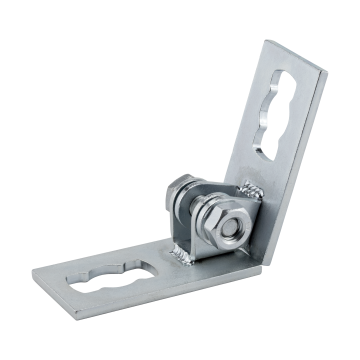

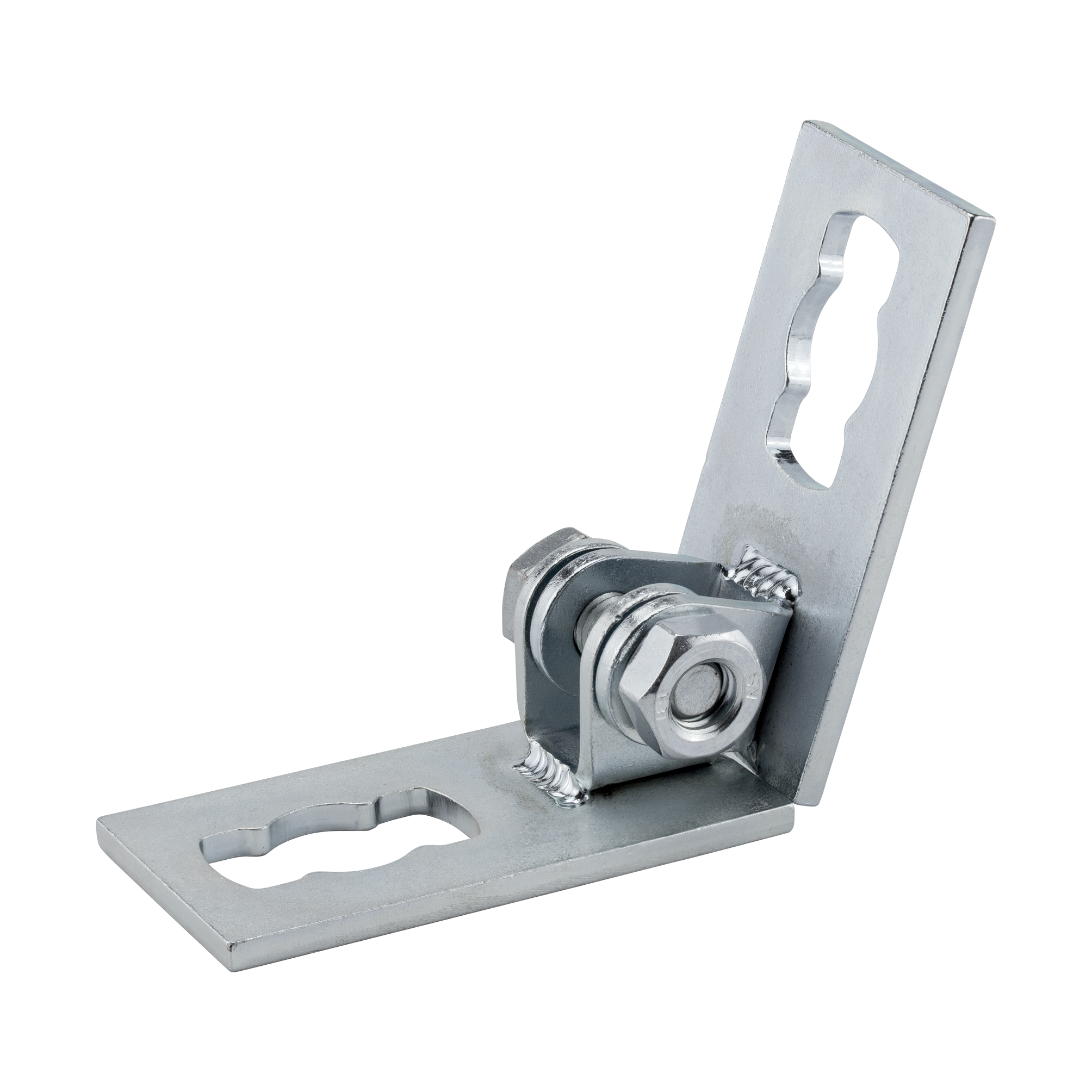

MPR-VARIO joint type S+

MPR-VARIO joint for channel support fitting, type S+ for profiles 41/21-41/124, galvanised

Art.no.: 165819

Sales unit:	10 Pieces
Weight/item:	0.253 kg

Field of application

Flexible use for connection of MPR-Support channels, where different angle settings are required, such as for supports on brackets, etc.
For indoor use

Advantages

Pivot angle from 0° to 100° for fast and flexible adaptation to a wide variety of attachment situations - saves time and costs at the construction site
Cost savings can be realized in the area of stockkeeping, as a variety of support solutions can be realized with only one item
Stable design of the joint for optimal transmission of force
Fast and simple installation using connection locks type S+

Surface:: galvanised
Product type:: Quick-mounting system type S+

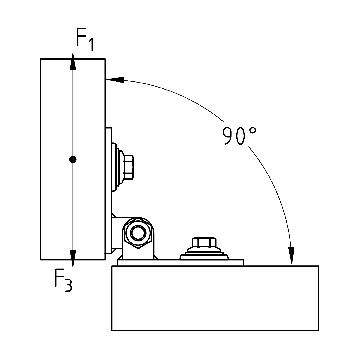

Permissible load F1:: 750 N
Tightening torque:: 40 Nm
eCl@ss 7.1:: 23-15-92-90
Material:: Steel

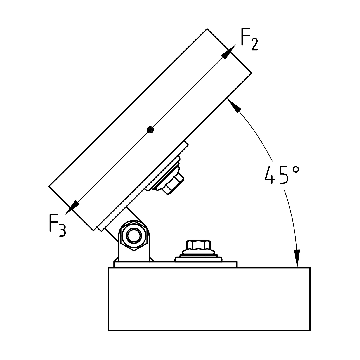

Permissible load F2:: 500 N
Support channels:: for MPR-Profiles
Permissible load F2:: 4000 N
DNV approval:: Yes
Customs tariff number:: 73269060
For profiles:: 41/21-41/124
eCl@ss 11.1:: 23-36-02-90
Basic data text:: MPR-VARIO joint for channel support fitting, type S+ for profiles 41/21-41/124, galvanised
