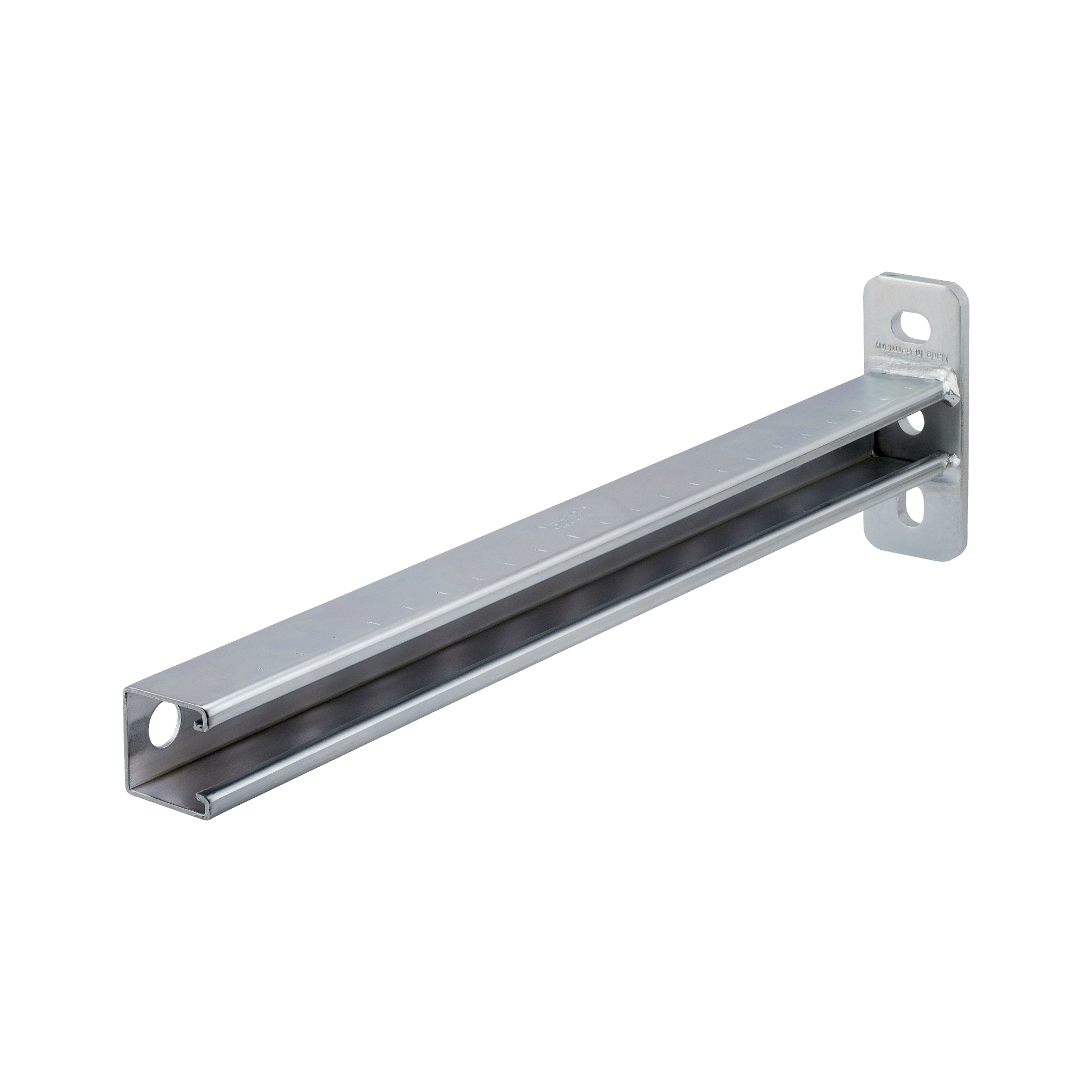

MPR-Wall hanger brackets

MPR-Wall hanger brackets

with lateral slot, galvanised

Display variants as list

Profile:

41/41/2.0

Length L [mm]:

320 480

Field of application

  • Ideal as cantilever support structure for riser pipes
  • Applicable in combination with saddle support and channel support brackets as a cross-beam for pipe attachments in shafts and ducts
  • Applicable as a cantilever bracket for supporting air ducts
  • For use in dry interiors

Advantages

  • The strong base plate ensures a high load carrying capacity
  • The vertical and horizontal holes in the base plate allow easy height adjustment of the bracket
  • Fixing in the side slot of the support channel allows simple alignment of parallel pipelines
  • Clean-cut appearance by the use of MPR-protection caps
Product type:
Wall hanger brackets
Support channels:
for MPR-Profiles
Material:
Steel
Surface:
galvanised
