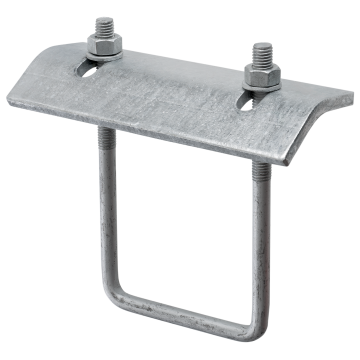

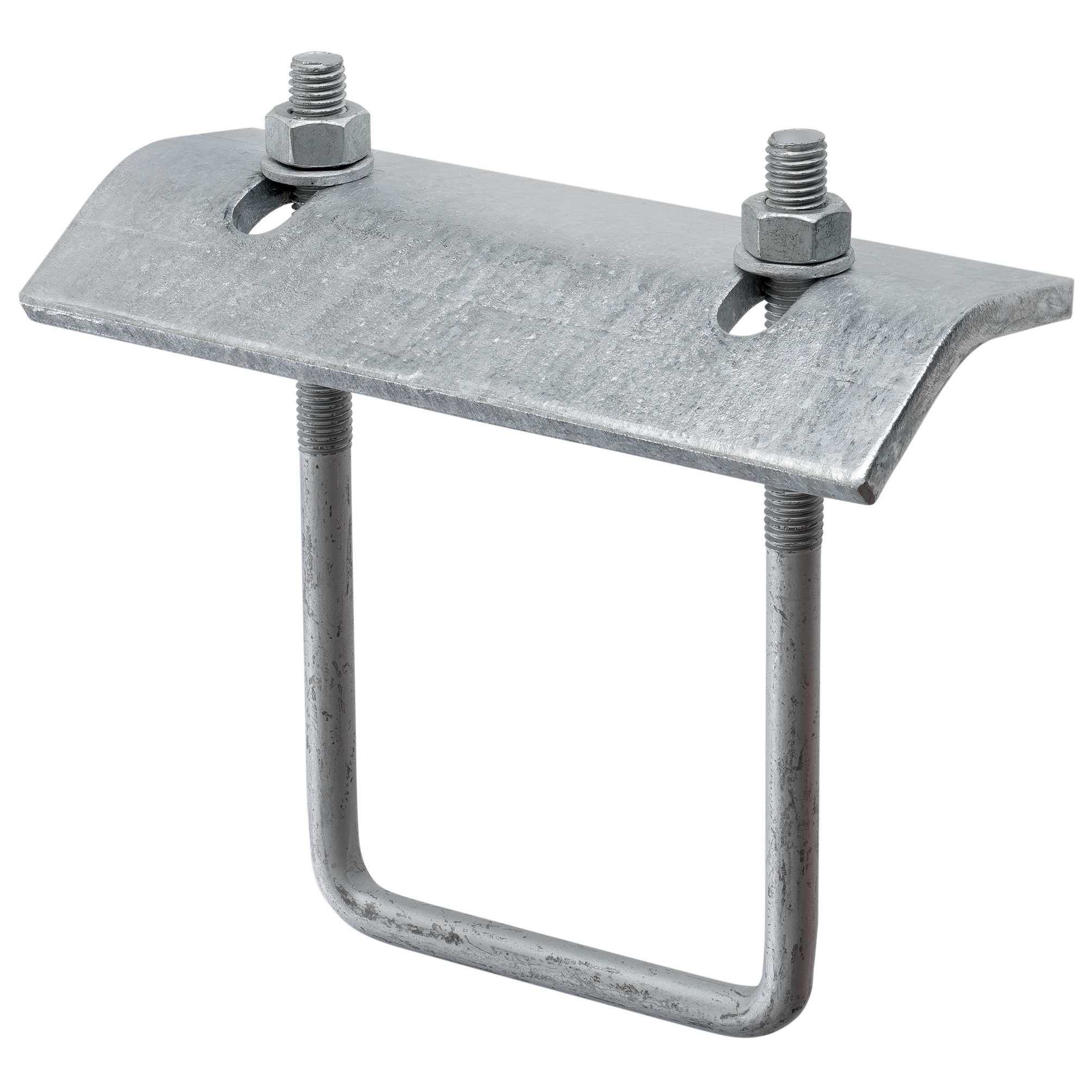

MPT-Girder cleats

MPT-Girder cleats

hot-dip galvanised

Display variants as list

For profiles:

Q50-2.5 Q80-2.0 Q100-2.5, Q100-3.5 Q150-2.5

Field of application

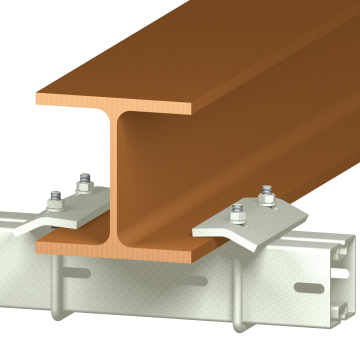

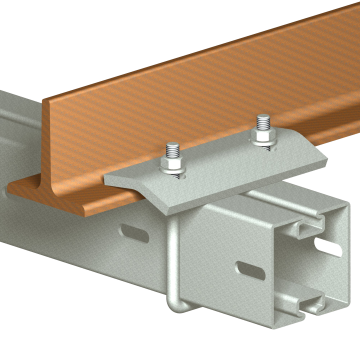

Attachment of MPT-Support channels to steel girders without drilling or welding

Advantages

Suitable for steel beams with flange thicknesses up to 25 mm
Easy to install, pre-assembled kit

Material:: Steel
Surface:: hot-dip galvanised
Product type:: Connecting parts
Support channels:: for MPT-Profiles

MPT-Girder cleats, hot-dip galvanised

	Product number	For profiles
	151343	Q50-2.5
	167937	Q80-2.0
	151344	Q100-2.5, Q100-3.5
	176743	Q150-2.5
