106 / 116
MPT-Guide Q50-2.5, Q80-2.0, Q100-2.5, Q100-3.5, Q150-2.5

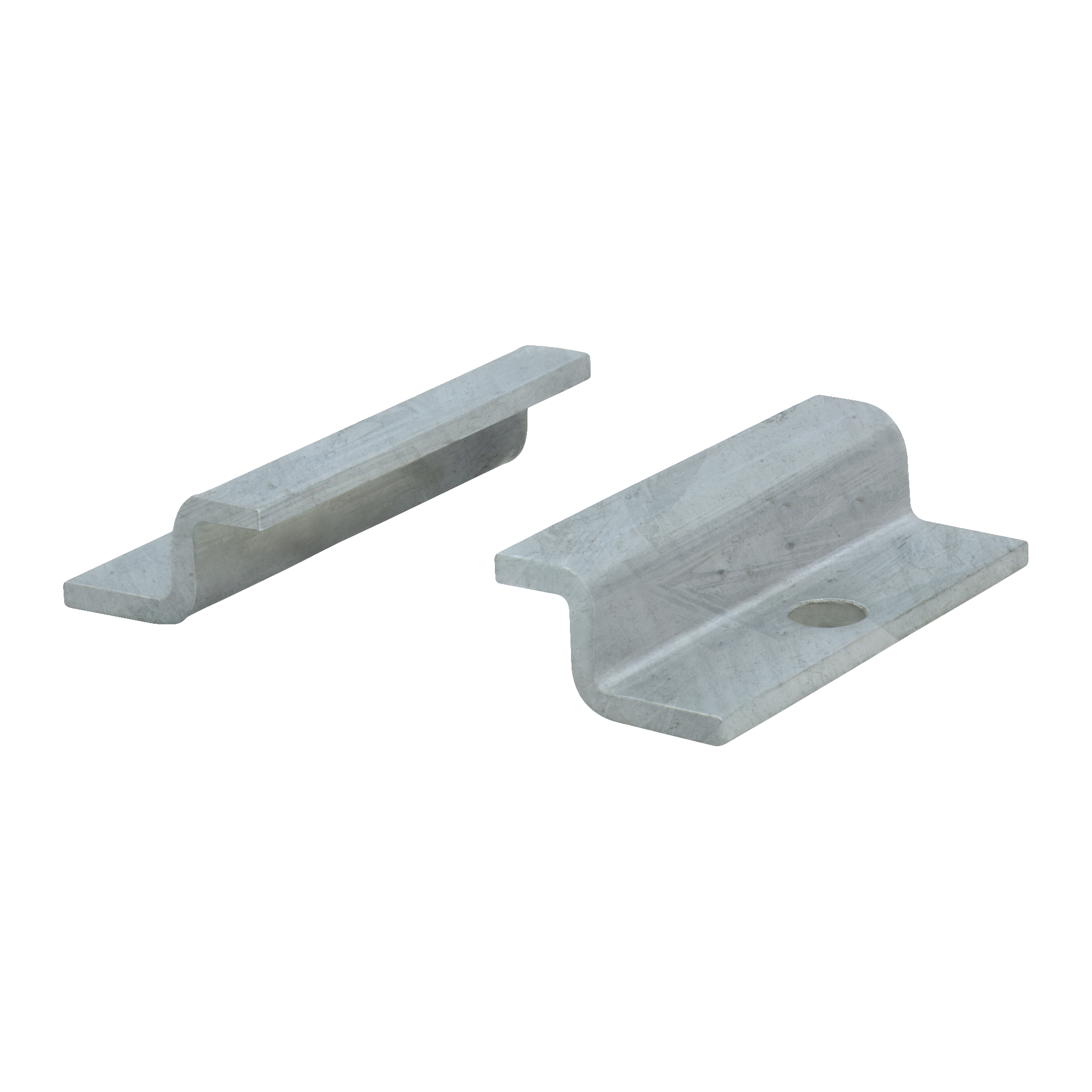

MPT-Guide

MPT-Guide, for MPT-Support profiles Q50-Q150, (per piece), hot-dip galvanised

Art.no.: 135607
Sales unit: 1 Pieces
Weight/item: 0.250 kg

Field of application

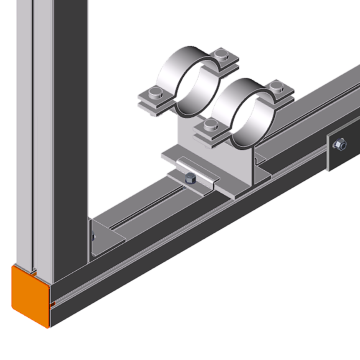

  • Stable hot-dip galvanised and perforated guide plate for fastening heavy pipe slides on the MPT-Support profiles

Advantages

  • High corrosion protection due to standardised hot-dip galvanising ensures flexible implementation outdoors and indoors
  • The broad support surface offers particularly safe transmission of the clamping forces
  • Safe fastening of pipe slides on the MPT-Support profiles
Support channels:
for MPT-Profiles
Basic data text:
MPT-Guide, for MPT-Support profiles Q50-Q150, (per piece), hot-dip galvanised
eCl@ss 11.1:
23-36-02-90
Product type:
Connecting parts
Customs tariff number:
73269060
For profiles:
Q50-2.5, Q80-2.0, Q100-2.5, Q100-3.5, Q150-2.5
Surface:
hot-dip galvanised
Material:
Steel
eCl@ss 7.1:
23-36-02-90
