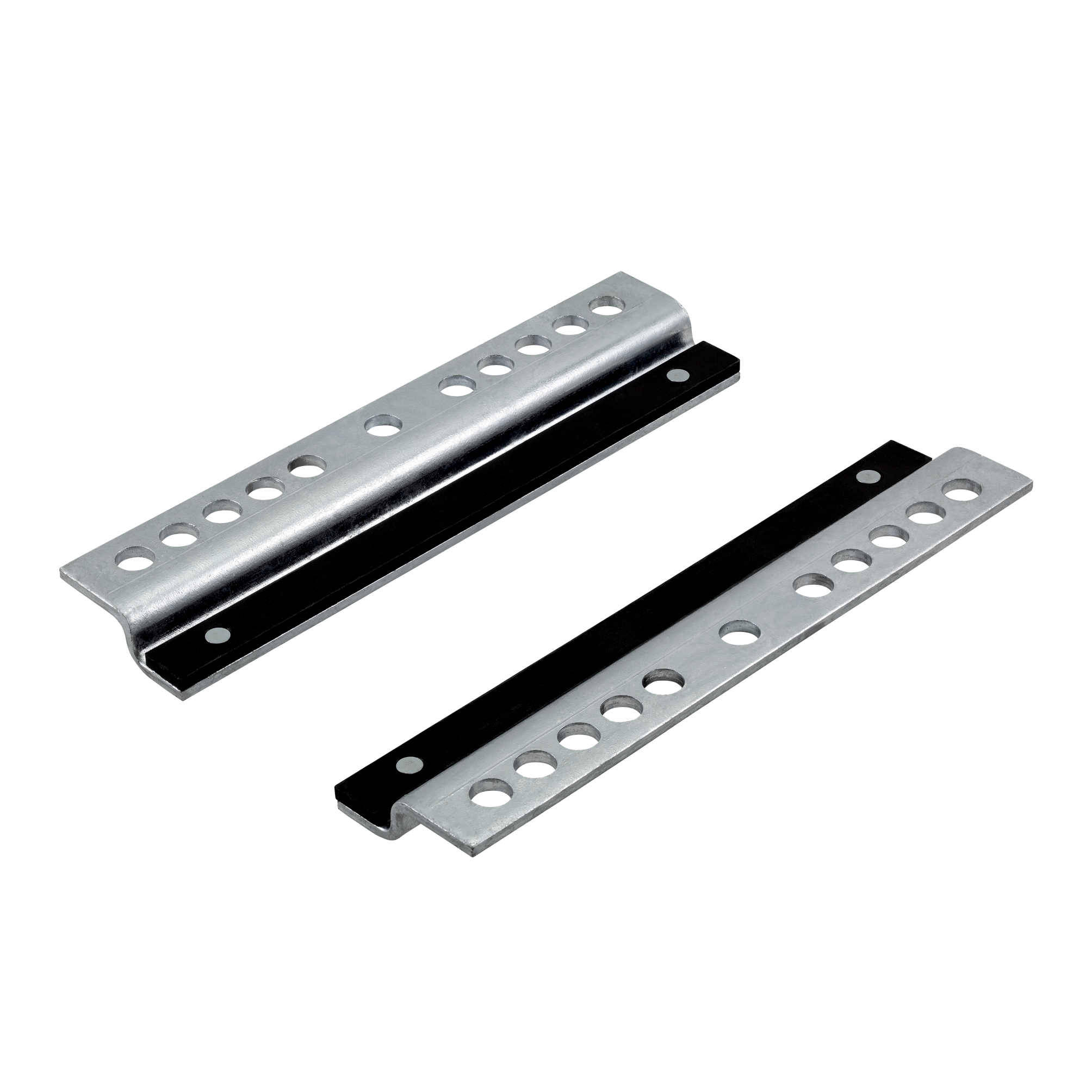

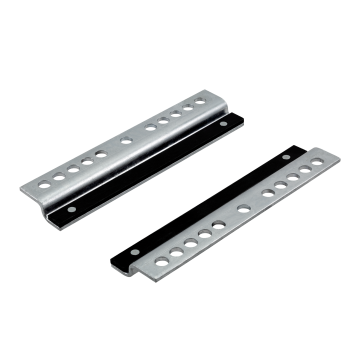

MPT-Guide type FGH

Cramping sets with sliding plate PA, for MPT-profiles Q50 / Q80 / Q100 / Q150, hot-dip galvanised

Art.no.: 168856

Sales unit:	10 Set
Weight/item:	1.626 kg

Field of application

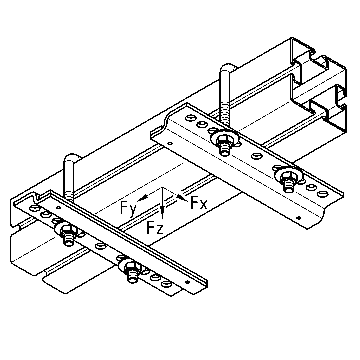

For fastening suspended MÜPRO pipe slides below subconstructions of MPT-Support profiles

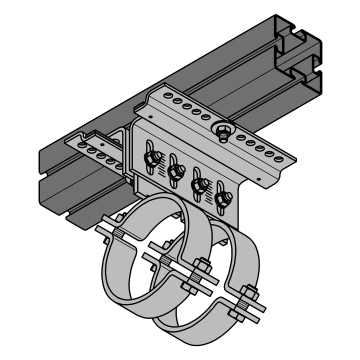

Suitable for guides with lift lock for installing suspended pipe slides
Hot-dip galvanised version for indoor and outdoor applications
Applicable for pipe slides with a base plate thickness up to 15 mm

Advantages

Guide angle set for simple installation of pipe slides on MPT-Profiles with or without slider to reduce reaction forces

Type:: Type FGH, with slide plate
Support channels:: for MPT-Profiles
For profiles:: Q50-2.5, Q80-2.0, Q100-2.5, Q100-3.5, Q150-2.5
eCl@ss 7.1:: 23-35-01-90
Material:: Steel
Basic data text:: Cramping sets with sliding plate PA, for MPT-profiles Q50 / Q80 / Q100 / Q150, hot-dip galvanised
Loading Fy:: ± 3 kN
eCl@ss 11.1:: 23-35-01-05
Product type:: Connecting parts
For thread:: M12
Surface:: hot-dip galvanised
Customs tariff number:: 73269060
Loading Fz:: + 8 kN
Loading Fx:: -
