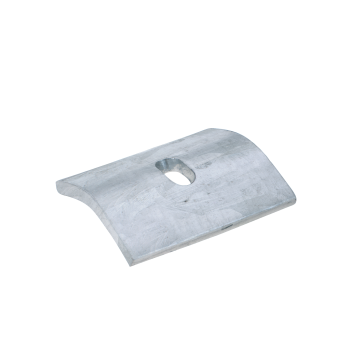

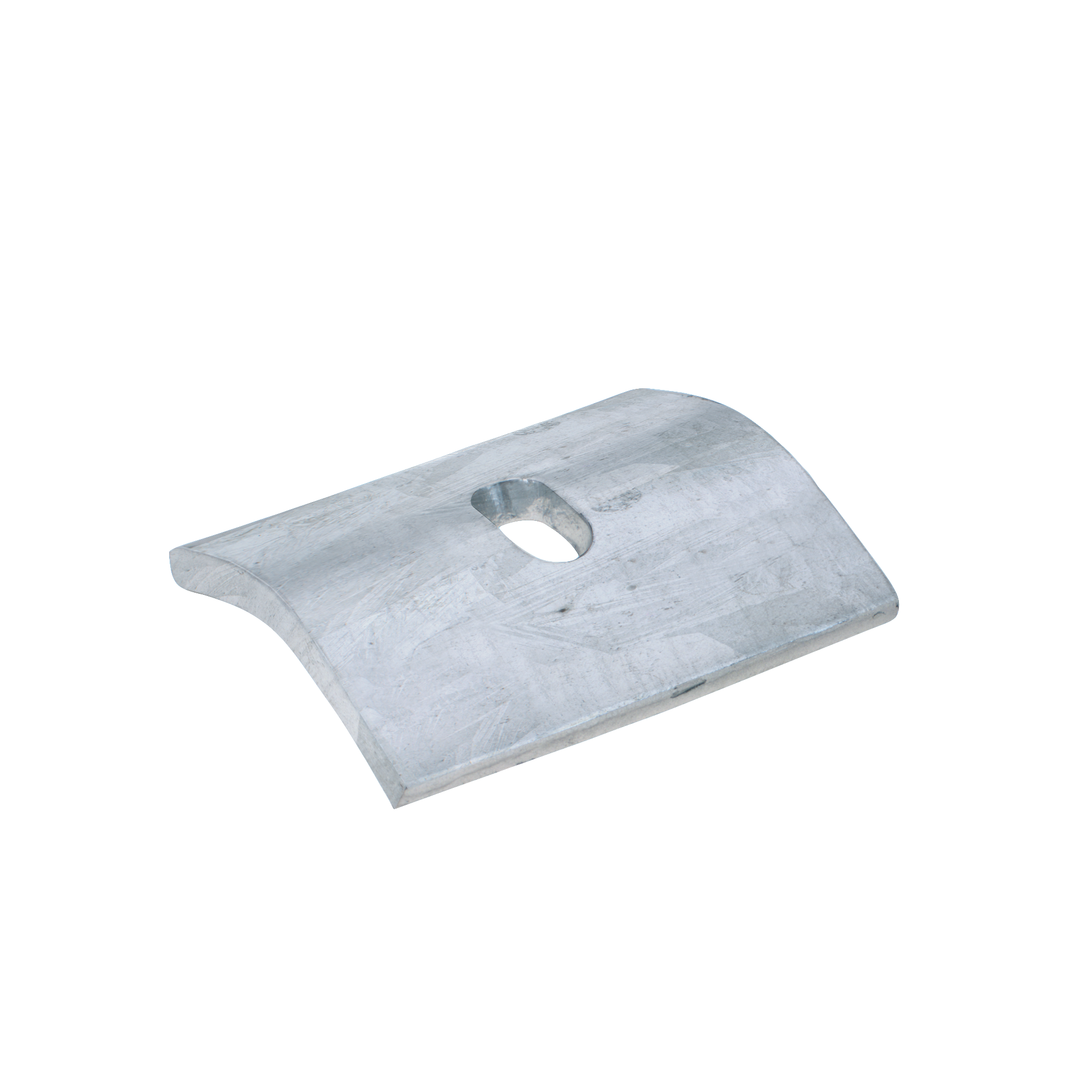

MPT-Steel beam adaptor plates

MPT-Steel beam adaptor plates

hot-dip galvanised

Display variants as list

For profiles:

Q50-2.5, Q100-2.5, Q100-3.5, Q150-2.5 Q80-2.0

Field of application

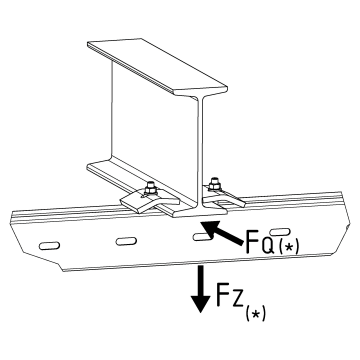

Stable hot-dip galvanised plates for connecting MPT-Support profiles with structural steel constructions

Advantages

High corrosion protection due to standardised hot-dip galvanising ensures flexible implementation outdoors and indoors
Broad support surface offers particularly safe transmission of force
Suitable for girder flange thicknesses up to 24 mm

Material:: Steel
Surface:: hot-dip galvanised
Product type:: Connecting parts
Support channels:: for MPT-Profiles

MPT-Steel beam adaptor plates, hot-dip galvanised

	Product number	For profiles
	131607	Q50-2.5, Q100-2.5, Q100-3.5, Q150-2.5
	169017	Q80-2.0
