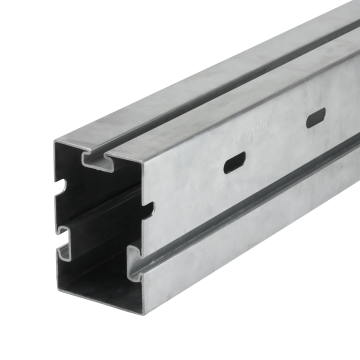

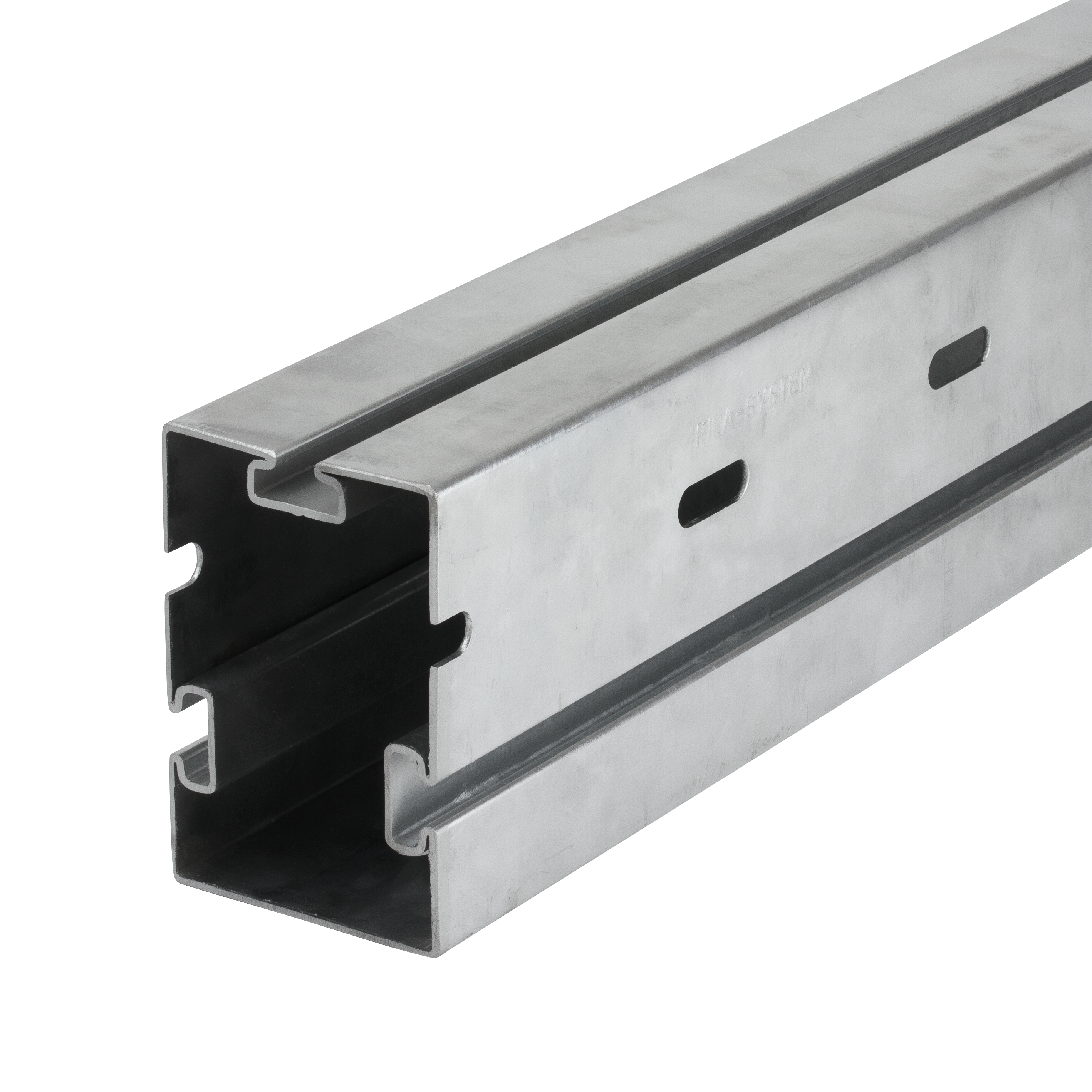

MPT-Support profile Q150 with 3 slots

MPT-Support profile Q150, 2.5 mm, length: 7,050 mm, with 3 slots, hot-dip galvanised

Art.no.: 161079

Sales unit:	1 Pieces
Weight/item:	94.180 kg

Field of application

For support structures used in shipbuilding and on industrial and plant building sites
Additional mounting slot increases connection possibilities, for example for 3D fixtures

Advantages

For construction of safe structures due to the high load-bearing capacity of the profile
High corrosion protection due to standardised hot-dip galvanising ensures flexible implementation outdoors and indoors
Saves time and costs due to functional accessories that are matched to the support profile
System components with finished surface and ready for installation save set-up and installation time
Product quality is ensured through the imprinted manufacturing code
Continuous fastening groove for flexible arrangement of accessories and fastening components
Clean-cut appearance by the use of MPT-protection caps

Material:: Steel
Support channels:: for MPT-Profiles
Profile:: Q150-2.5 3-slots
eCl@ss 7.1:: 23-36-01-90
Product type:: Support channels
Surface:: hot-dip galvanised
Customs tariff number:: 72166110
Thickness s:: 2.5 mm
Basic data text:: MPT-Support profile Q150, 2.5 mm, length: 7,050 mm, with 3 slots, hot-dip galvanised
eCl@ss 11.1:: 23-36-01-90
