VARIO-Bolt joint

VARIO-Bolt joint

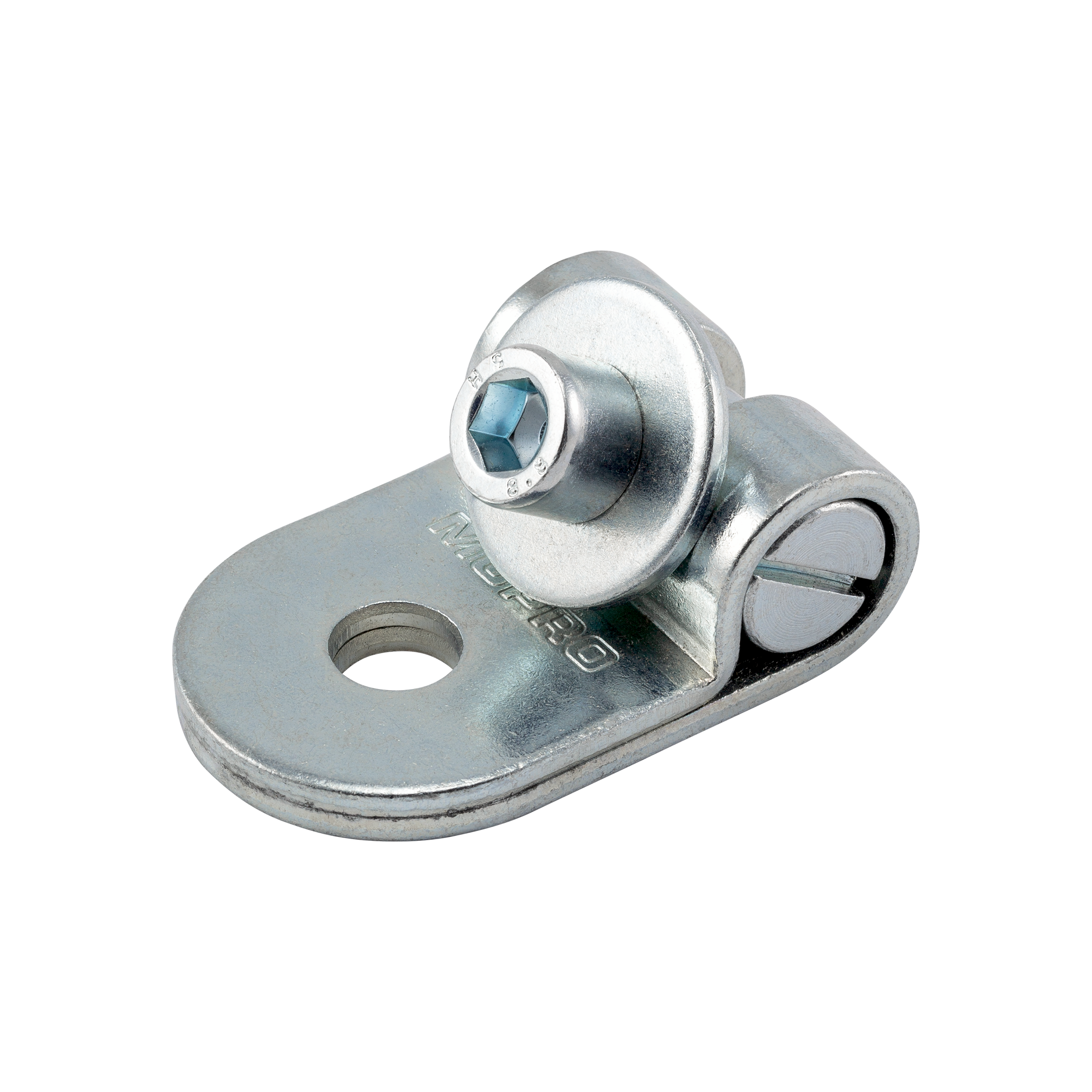

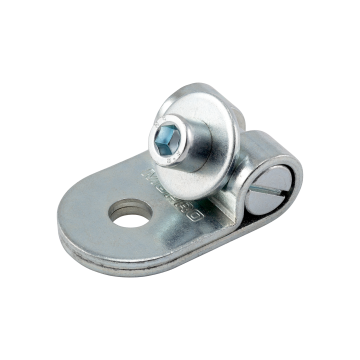

VARIO - Bolt joint M10, galvanised, mounted

Art.no.: 170452
Sales unit: 20 Pieces
Weight/item: 0.190 kg

Field of application

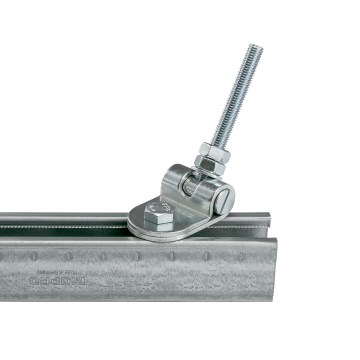

  • For bracing assembly in combination with support channels
  • For stiffening frame constructions
  • For brace assembly in combination with pipe clamps

Advantages

  • Continuous adjustable range
  • Easy to use - minimal installation effort
  • Versatile areas of application
  • Compatibility with existing support channel systems
eCl@ss 7.1:
23-15-90-90
Surface:
galvanised
Max. recommended tensile load 0°:
4000 N
Customs tariff number:
73269060
Basic data text:
VARIO - Bolt joint M10, galvanised, mounted
Max. recommended tensile load 90°:
1000 N
eCl@ss 11.1:
23-15-90-90
Connecting thread:
M10
Material:
Steel
Max. recommended tensile load 45°:
3000 N
Product type:
Connecting parts
Support channels:
for MPC- and MPR-Profiles
