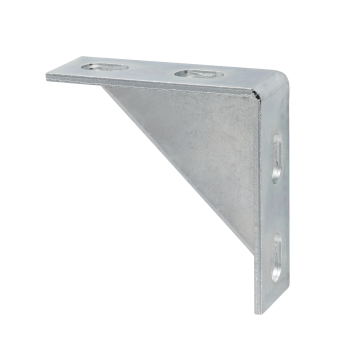

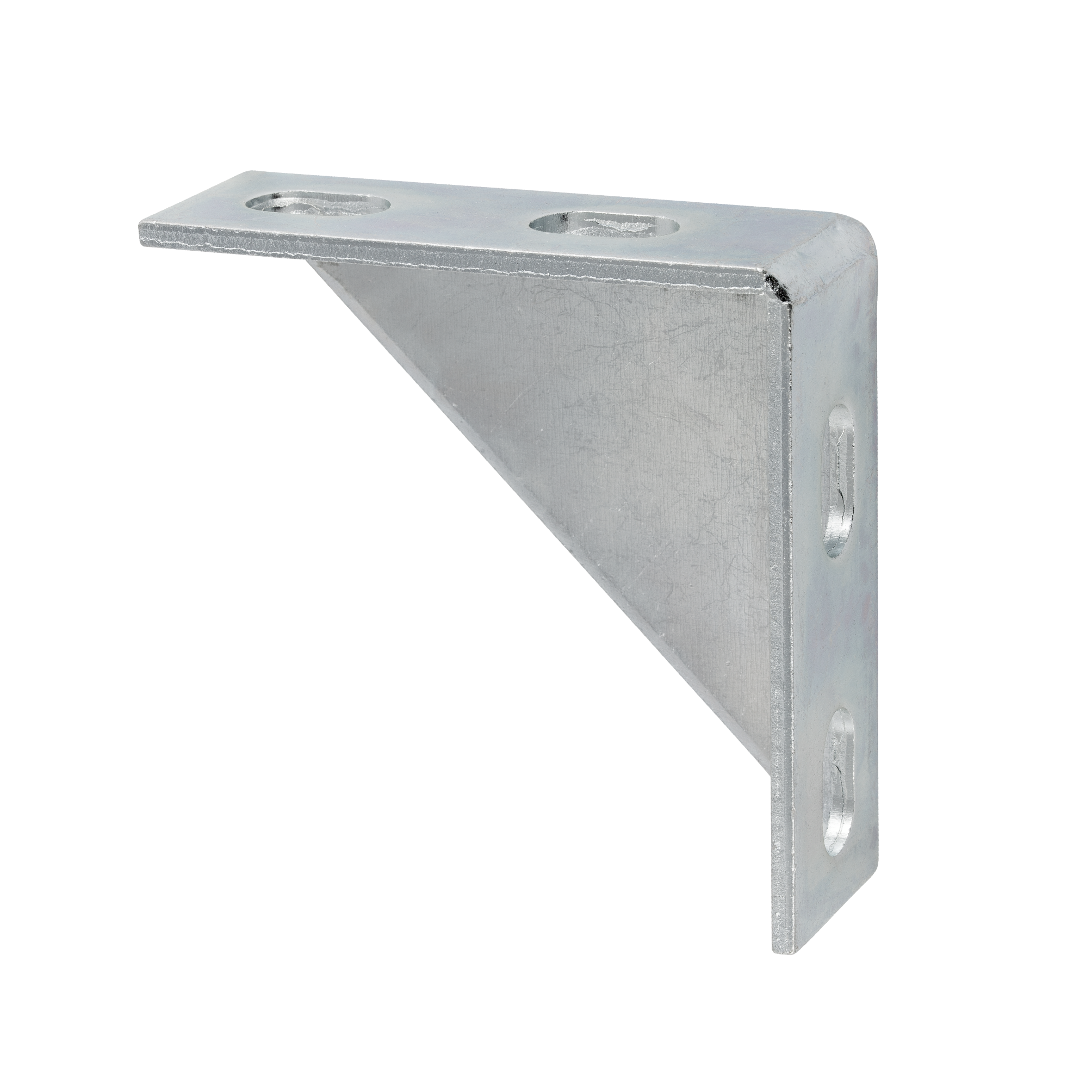

Cantilever brackets

Cantilever brackets

hot-dip galvanised

Display variants as list

Design:

100 x 100 x 4 mm 200 x 200 x 6 mm

Field of application

For attachment to ceiling, wall and floor, free-standing or in a shaft
Strong support bracket for water meters, distributing batteries, pumps and many other items
Suitable for outdoor use

Advantages

Variety of mounting possibilities when used with MPC- and MPR-Support channels
Reinforces and increases the load capacity of channel structures and cross-beams
Even greater strength values can be achieved by bolting two equalsided cantilever brackets together

Surface:: hot-dip galvanised
Material:: Steel
Product type:: Connecting parts
DNV approval:: Yes
eCl@ss 11.1:: 23-15-25-90
Support channels:: for MPC- and MPR-Profiles

Cantilever brackets, hot-dip galvanised

	Product number	Design
	167127	100 x 100 x 4 mm
	113634	200 x 200 x 6 mm
