Channel connector hot-dip galvanised

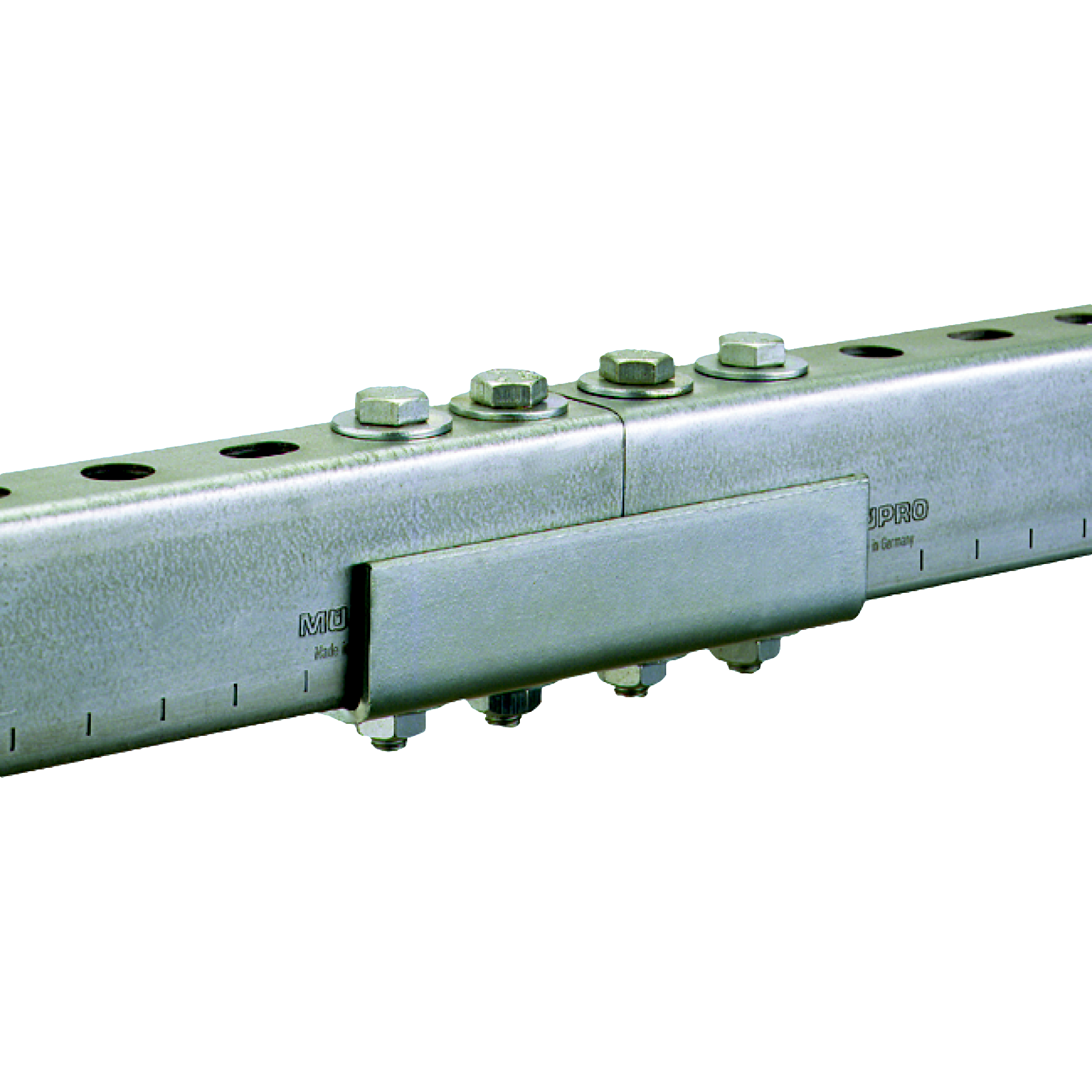

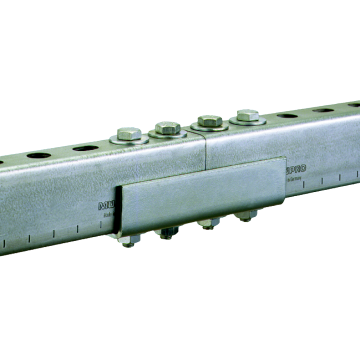

Channel connector

MPC/MPR-Channel connector heavy-duty version for profiles 38/40-40/120, 41/21-41/124, hot-dip galvanised

Art.no.: 120140
Sales unit: 1 Pieces
Weight/item: 0.546 kg

Field of application

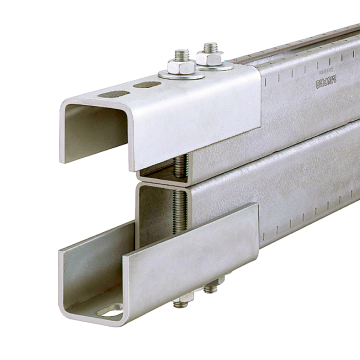

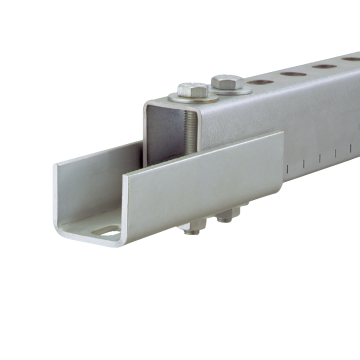

  • Quick butt-joint connection for MPC- and MPR-Support channels
  • Suitable for outdoor use

Advantages

  • Enables exact alignment of the channels
  • Four bolts provide a frictional joint
  • For highly load-bearing connections:
    • form-locking connection of through fitting attachments by means of threaded pins or hexagon head bolts and hexagonal nuts
    • with 4 oblong holes, adapted to the hole pattern of the MPC-Support channels
  • Also available in double length for heavy-duty connections
For profiles:
38/40-40/120, 41/21-41/124

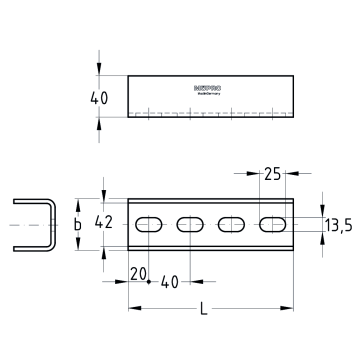

Dimension L:
160 mm
Surface:
hot-dip galvanised
Customs tariff number:
73269060
eCl@ss 7.1:
23-36-02-90
Material:
Steel
eCl@ss 11.1:
23-36-02-90
Dimension b:
50 mm
Product type:
Connecting parts
Support channels:
for MPC- and MPR-Profiles
Basic data text:
MPC/MPR-Channel connector heavy-duty version for profiles 38/40-40/120, 41/21-41/124, hot-dip galvanised
