MPR-Support channels

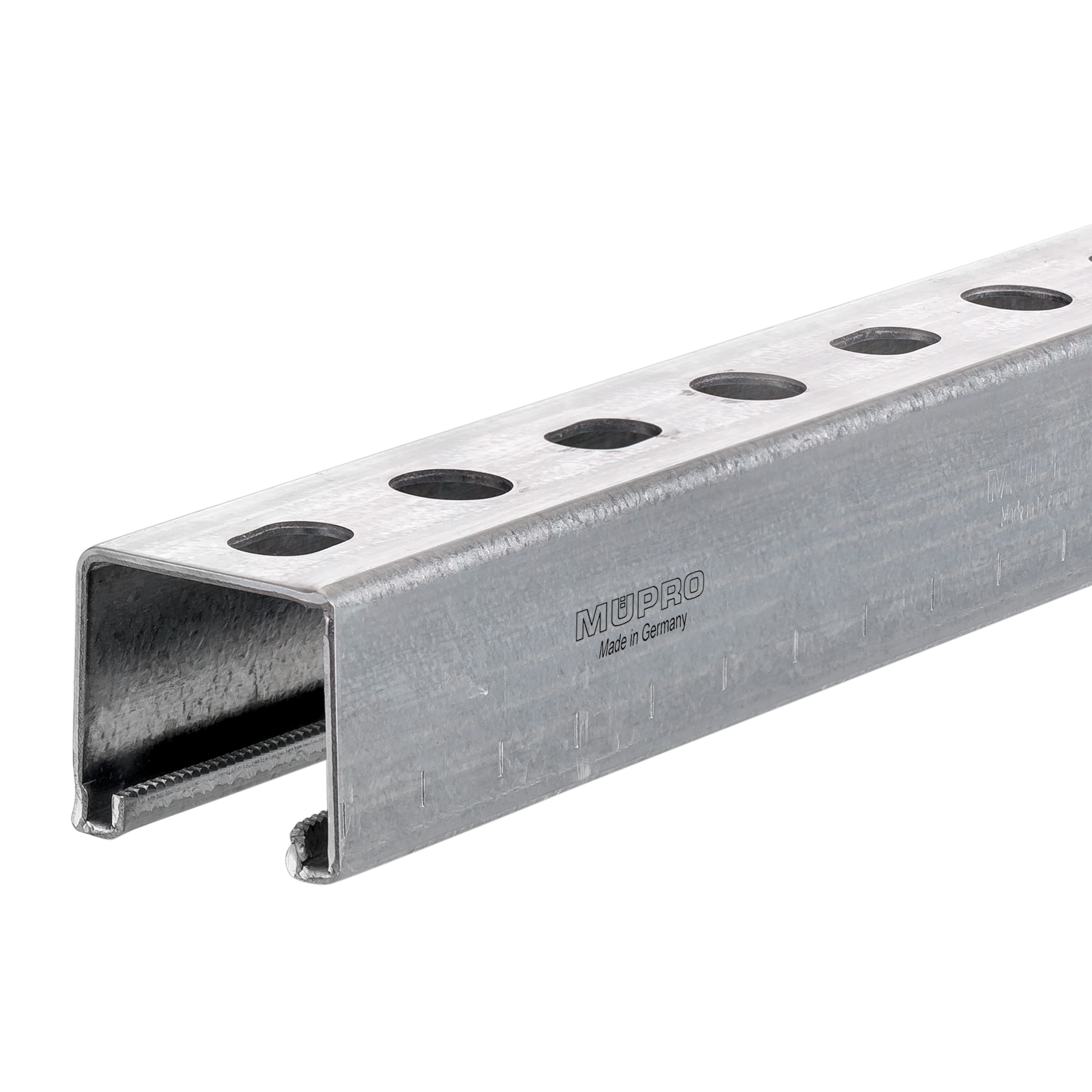

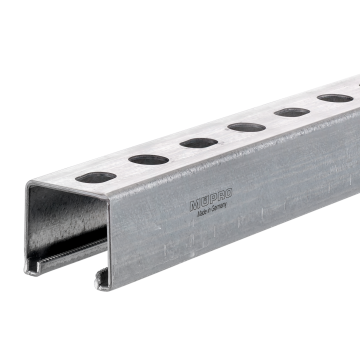

MPR-Support channel 41/41/2.5, length: 6,000 mm, hot-dip galvanised

Art.no.: 154181

Sales unit:	1 Pieces
Weight/item:	15.180 kg

Field of application

Ideal for pipe installation as support structure for air ducts in interiors and exteriors
Variety of mounting options e.g. for shelves in combination with extensive range of system components

Advantages

Fast and efficient attachment of piping and pipe routes
High bending stiffness due to the cross-section design
Scale marks sideways and on the side with the slot simplify the alignment of the attachment elements during installation and facilitate the measuring and cutting to length of the section on site
For secure fixing that is adjustable laterally and vertically
For setting up structures with correctly measured static loads by means of diverse connection components
Meshing into the channel slot for positive-fit attachment of add-on parts
Clean-cut appearance by the use of MPR-protection caps

eCl@ss 7.1: 23-36-01-90

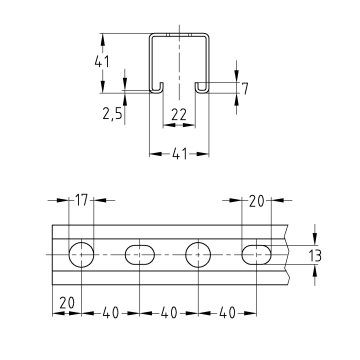

Profile: 41/41/2.5
eCl@ss 11.1: 23-36-01-90
Surface: hot-dip galvanised
Basic data text: MPR-Support channel 41/41/2.5, length: 6,000 mm, hot-dip galvanised
Length: 6000 mm
DNV approval: Yes
Material: Steel
Support channels: for MPR-Profiles
Customs tariff number: 72166110
Product type: Support channels
