MPR-Support channels

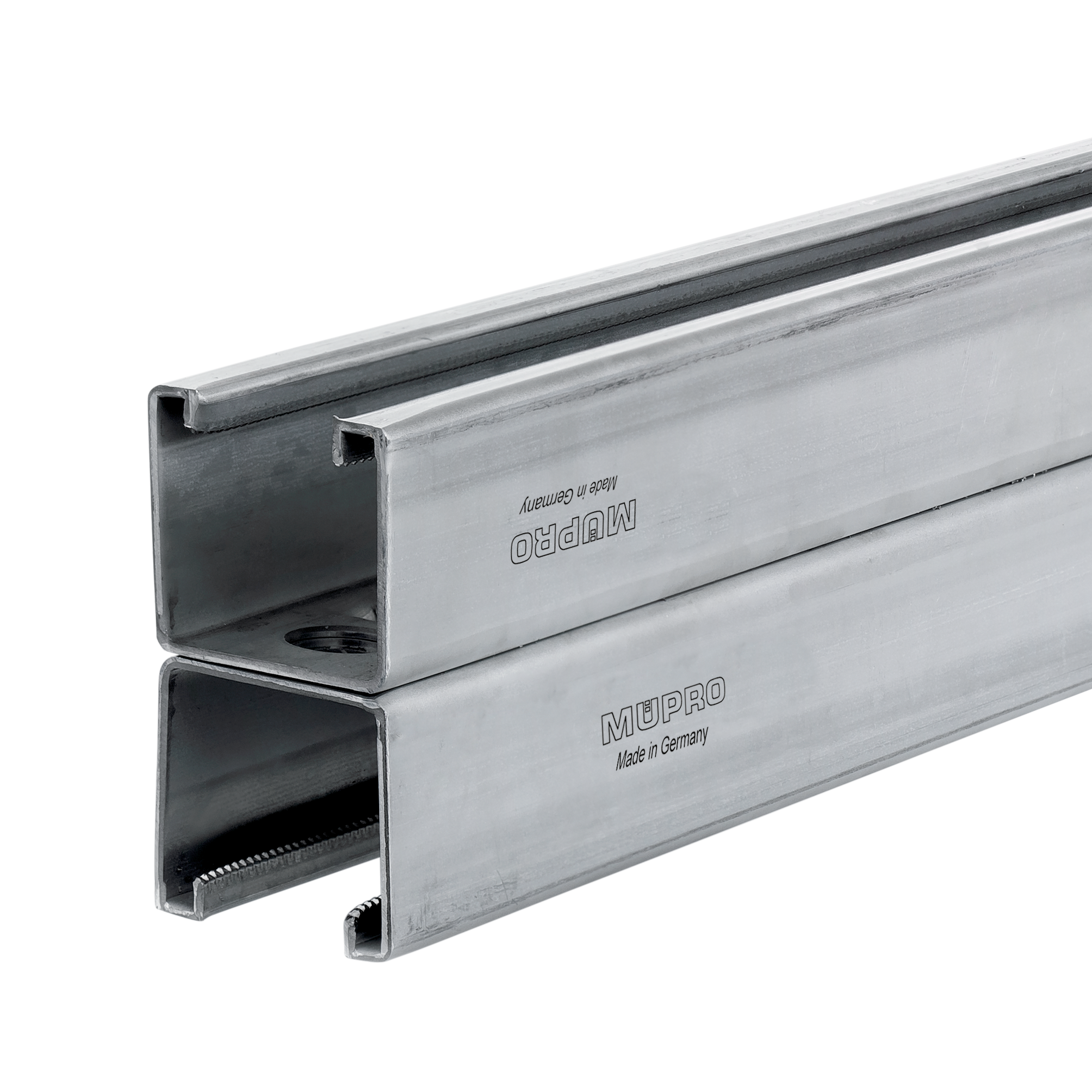

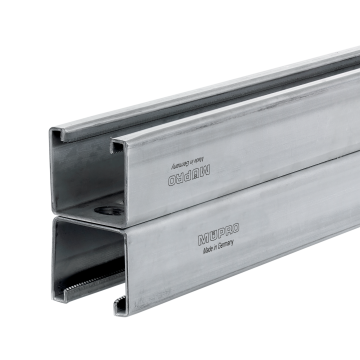

MPR-Support channel 41/82/2.0, H-profile, length: 6,640 mm, hot-dip galvanised

Art.no.: 154186

Sales unit:	1 Pieces
Weight/item:	27.620 kg

Field of application

Ideal for space-saving support of multisection pipeways between ceiling beams
Ideal for pipe installation as support structure for air ducts in interiors and exteriors
Variety of mounting options e.g. for shelves in combination with extensive range of system components

Advantages

Fast and efficient attachment of piping and pipe routes
Ideal combination of high bending stiffness and ease of installation
Channel slots on both sides allow simple and quick alignment of all suspended and floor-mounted pipe supports
Scale marks sideways and on the side with the slot simplify the alignment of the attachment elements during installation and facilitate the measuring and cutting to length of the section on site
Suitable vibration control elements for all support channels available
Clean-cut appearance by the use of MPR-protection caps
Meshing into the channel slot for positive-fit attachment of add-on parts

Material:: Steel
Surface:: hot-dip galvanised

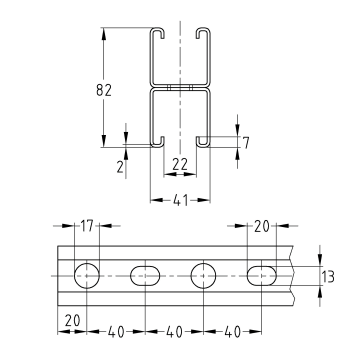

Profile:: 41/82/2.0 H
Customs tariff number:: 72166110
eCl@ss 11.1:: 23-36-01-90
eCl@ss 7.1:: 23-36-01-90
Support channels:: for MPR-Profiles
Basic data text:: MPR-Support channel 41/82/2.0, H-profile, length: 6,640 mm, hot-dip galvanised
Product type:: Support channels
Length:: 6640 mm
