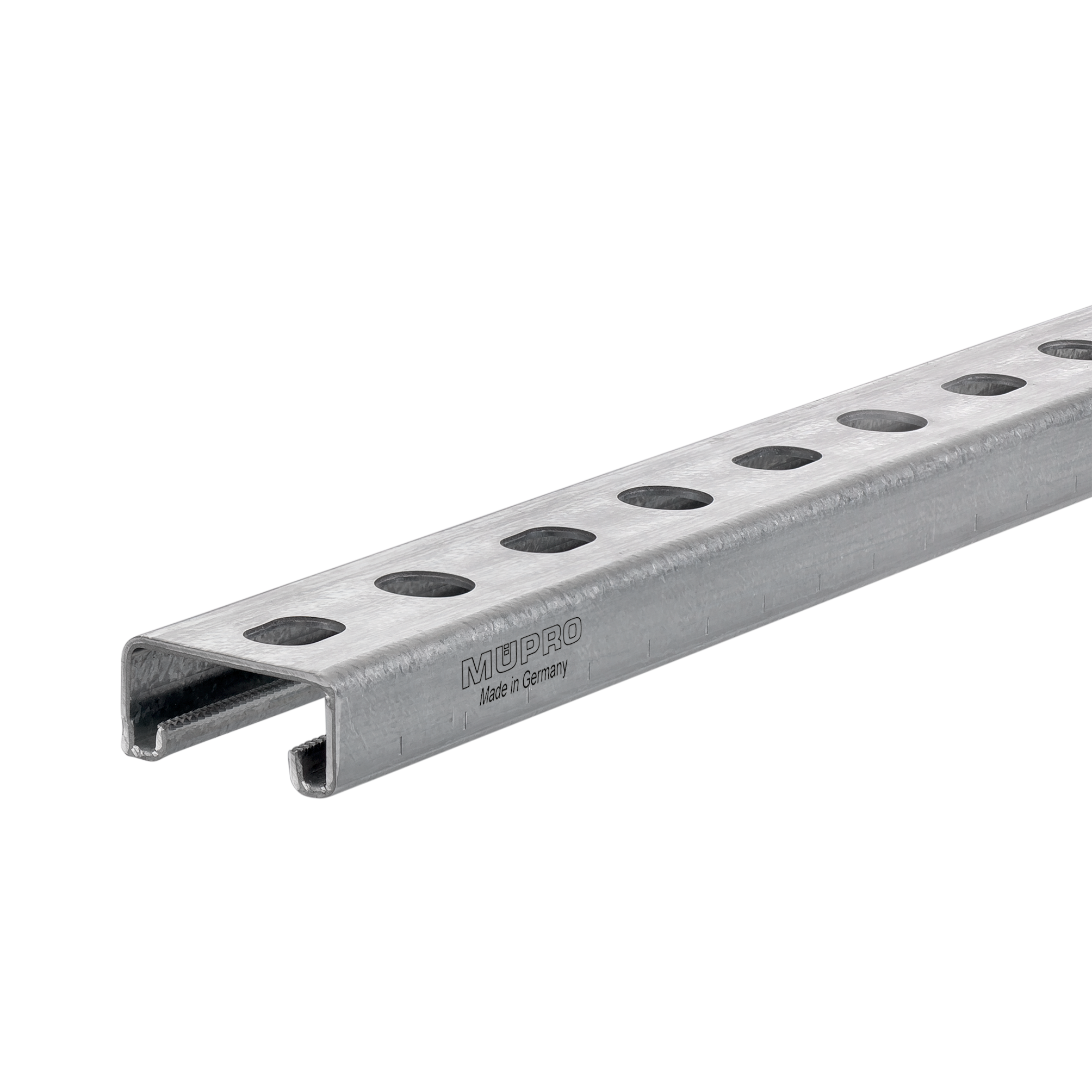

MPR-Support channels

41/41/2.0, thermisch verzinkt

Display variants as list

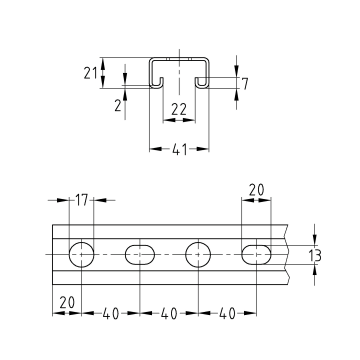

Profile:

41/21/2.0

Length:

2000 mm 6000 mm

Surface:

hot-dip galvanised

Field of application

Ideal for pipe installation as support structure for air ducts in interiors and exteriors
Variety of mounting options e.g. for shelves in combination with extensive range of system components

Advantages

Fast and efficient attachment of piping and pipe routes
High bending stiffness due to the cross-section design
Scale marks sideways and on the side with the slot simplify the alignment of the attachment elements during installation and facilitate the measuring and cutting to length of the section on site
For secure fixing that is adjustable laterally and vertically
For setting up structures with correctly measured static loads by means of diverse connection components
Meshing into the channel slot for positive-fit attachment of add-on parts
Clean-cut appearance by the use of MPR-protection caps

	Product number	Profile	Length	Surface
	154173	41/21/2.0	2000 mm	hot-dip galvanised
	154175	41/21/2.0	6000 mm	hot-dip galvanised
