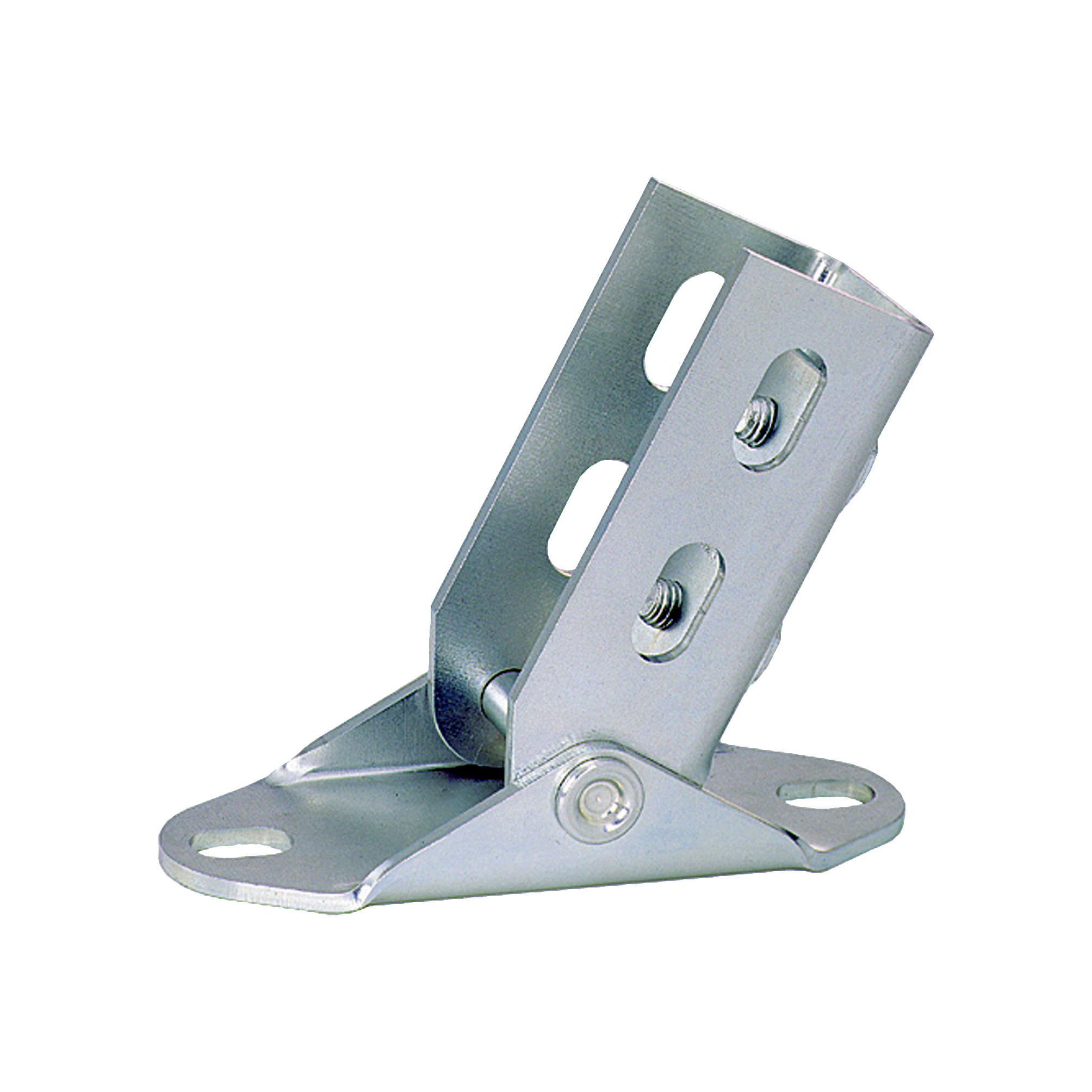

MPR-VARIO-Saddle support

MPR-VARIO-Saddle support for profiles 41/21-41/62, hot-dip galvanised

Art.no.: 160007

Sales unit:	1 Pieces
Weight/item:	0.900 kg

Field of application

Ideal for variable attachment of MPR-Support channels on slanting steel structures and bulkheads

Advantages

Variable angle adjustment possible during installation
Simple and quick installation due to pre-installed screws and MPR-Threaded plate
Attachment to the slot of support channels 41/41 possible in all directions
Positive-fit joining due to interlocking MPR-Support channels and MPR-Threaded plates

Support channels:: for MPR-Profiles
Basic data text:: MPR-VARIO-Saddle support for profiles 41/21-41/62, hot-dip galvanised
For profiles:: 41/21-41/62
Customs tariff number:: 73269060
Surface:: hot-dip galvanised
Min. angle:: 20 °
Product type:: Connecting parts
eCl@ss 7.1:: 23-36-02-90
DNV approval:: Yes
eCl@ss 11.1:: 23-36-02-90
Material:: Steel
Scope of supply:: Completely pre-assembled: 1 MPR-VARIO-Saddle support, 2 MPR-Threaded plates M10, 2 Hexagonal head bolts M10, 2 Washers
