Field of application

  • For attachment of spiral-seam pipes

Advantages

  • Manufactured to suit air duct dimensions
  • Practical latchening fastener: simple and secure insertion and fastening of the pipe due to quick fastener for nominal pipe size of up to 450 mm, M8 hexagon screws for pipe sizes from 450 mm and upwards
  • Easy installation due to the wide opening angle of the clamp
  • Added rigidity due to the grooved design of the duct clamp
  • Easy clicking-in of the fastening bolt with the tip of a finger
  • High safety due to the positive-fit edge hook-in opening
  • No inadvertent opening once it has clicked in
  • The easy click-in fastener allows opening and closing of the pipe clamp with only one hand
  • DÄMMGULAST® vibration control lining with green identification stripe: average sound level improvement up to 18 dB(A)
  • Manufactured to suite connecting thread M8/M10
  • This product is awarded with the "Gütezeichen Rohrbefestigung" (quality mark of pipe support) and is submitted to controls according to RAL-GZ 655-B

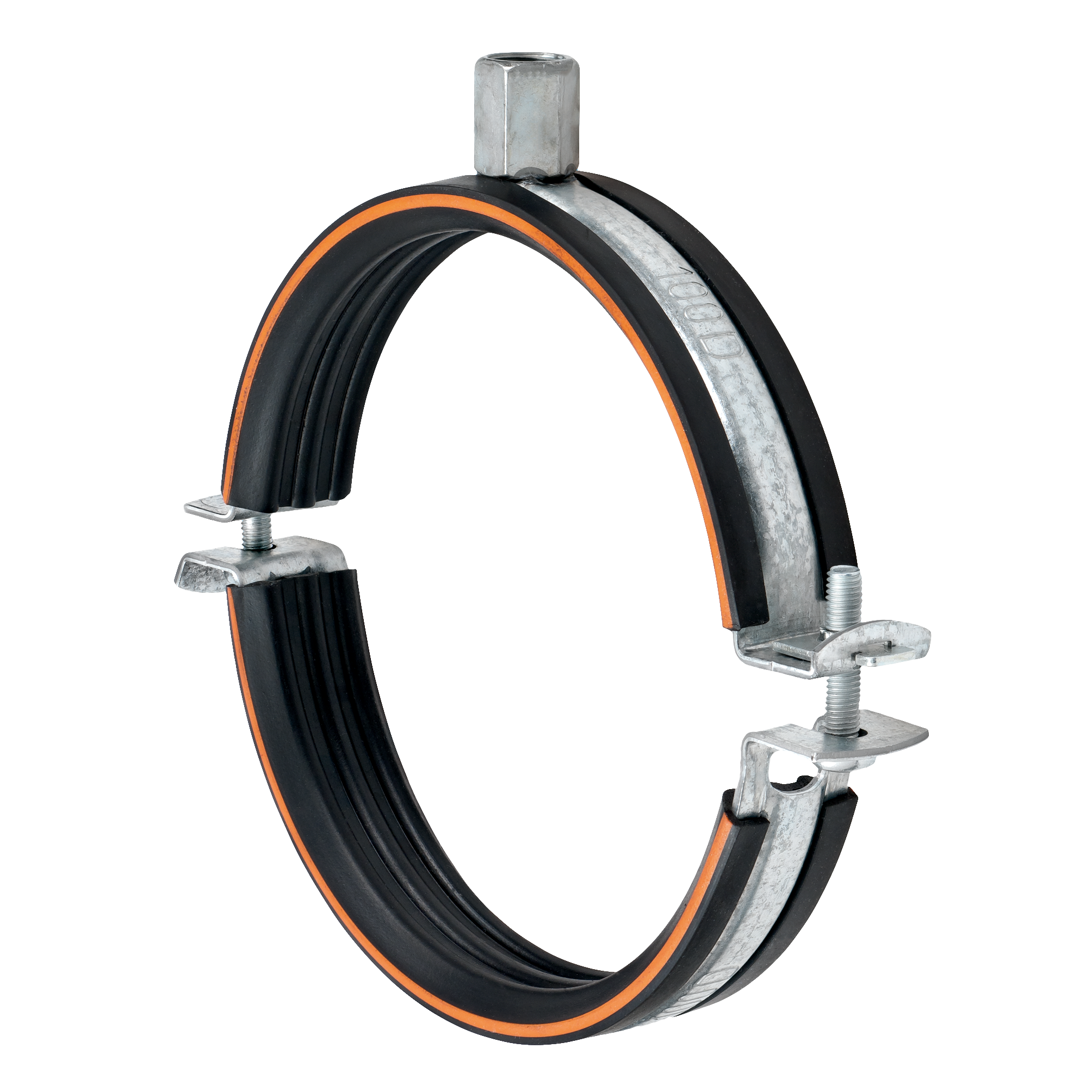

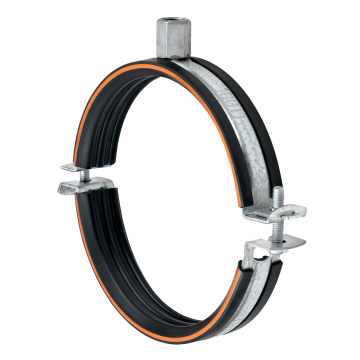

Product type:
Duct clamps
Surface:
galvanised
Vibration control lining:
DÄMMGULAST® orange
Material:
Steel
Average vibration reduction:
18 dB(A)
Locking technology:
Quick locking
