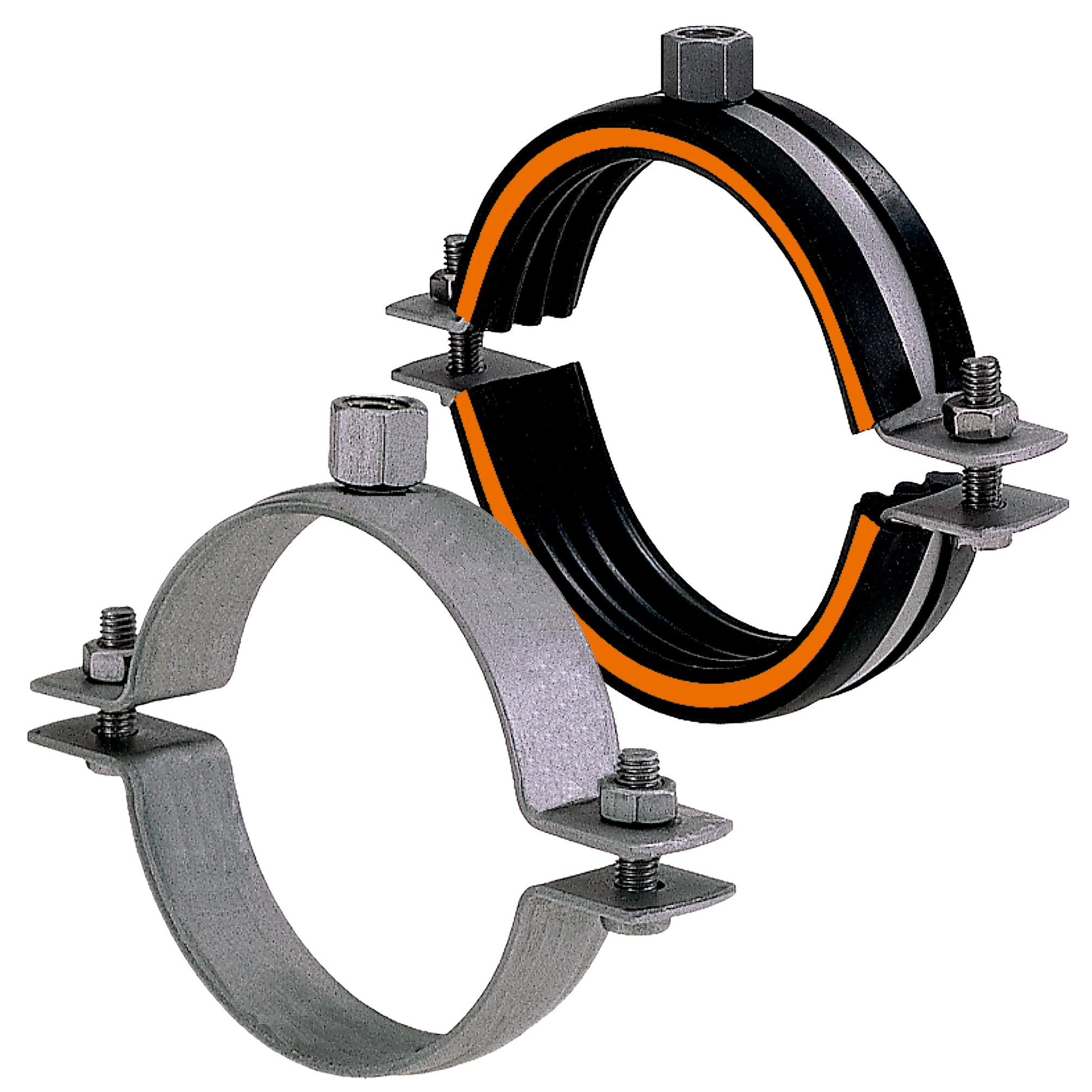

Duct clamps

with / without DÄMMGULAST® orange, stainless steel

Display variants as list

Connecting thread:

M10 M8

Vibration control lining:

DÄMMGULAST® orange without lining

Nominal size DN:

232 mm 192 mm 157 mm 132 mm 50 63 71 80 90 100 112 125 140 150 160 180 200 224 250 280 300 315 355 400 450 500 560 600 630 710 800

Field of application

For attachment of air ducts as well as spiral-seam pipes

Advantages

The 2 locking screws allow adjustment to accommodate a greater variation in pipe diameter
Acoustic insulation, positive-fit liner with wide clip-over edges prevent the lining from slipping out of the pipe clamp
Vibration control lining DÄMMGULAST® Junior with orange identification stripe: average vibration improvement of up to 18 dB(A)

Product type:: Duct clamps
Vibration control lining:: DÄMMGULAST® orange

Duct clamps, without lining, stainless steel

Duct clamps, with DÄMMGULAST® orange, stainless steel

Product number	Connecting thread	Vibration control lining	Nominal size DN
144801	M10	DÄMMGULAST® orange	232 mm
144802	M10	DÄMMGULAST® orange	192 mm
144803	M10	DÄMMGULAST® orange	157 mm
147203	M10	DÄMMGULAST® orange	132 mm
115459	M8	DÄMMGULAST® orange	50
115264	M8	DÄMMGULAST® orange	63
115274	M8	DÄMMGULAST® orange	71
115280	M8	DÄMMGULAST® orange	80
115289	M8	DÄMMGULAST® orange	90
115115	M8	DÄMMGULAST® orange	100
115121	M8	DÄMMGULAST® orange	112
115128	M8	DÄMMGULAST® orange	125
115137	M8	DÄMMGULAST® orange	140
115146	M8	DÄMMGULAST® orange	150
115156	M8	DÄMMGULAST® orange	160
115168	M8	DÄMMGULAST® orange	180
115177	M8	DÄMMGULAST® orange	200
115186	M8	DÄMMGULAST® orange	224
115199	M8	DÄMMGULAST® orange	250
115209	M8	DÄMMGULAST® orange	280
115218	M8	DÄMMGULAST® orange	300
115227	M8	DÄMMGULAST® orange	315
115236	M8	DÄMMGULAST® orange	355
115245	M8	DÄMMGULAST® orange	400
115091	M10	DÄMMGULAST® orange	450
115094	M10	DÄMMGULAST® orange	500
115097	M10	DÄMMGULAST® orange	560
115100	M10	DÄMMGULAST® orange	600
115103	M10	DÄMMGULAST® orange	630
115106	M10	DÄMMGULAST® orange	710
115109	M10	DÄMMGULAST® orange	800
115606	M8	without lining	50
115612	M8	without lining	63
115618	M8	without lining	71
115627	M8	without lining	80
115633	M8	without lining	90
115506	M8	without lining	100
115512	M8	without lining	112
115521	M8	without lining	125
115533	M8	without lining	140
115542	M8	without lining	150
115548	M8	without lining	160
115555	M8	without lining	180
115560	M8	without lining	200
115567	M8	without lining	224
115576	M8	without lining	250
115582	M8	without lining	280
115585	M8	without lining	300
115594	M8	without lining	315
115600	M8	without lining	355
115603	M8	without lining	400
115456	M10	without lining	450
115461	M10	without lining	500
115464	M10	without lining	560
115467	M10	without lining	600
115470	M10	without lining	630
115476	M10	without lining	710
115479	M10	without lining	800
