MPR-Support channels

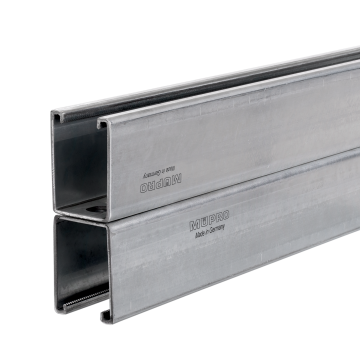

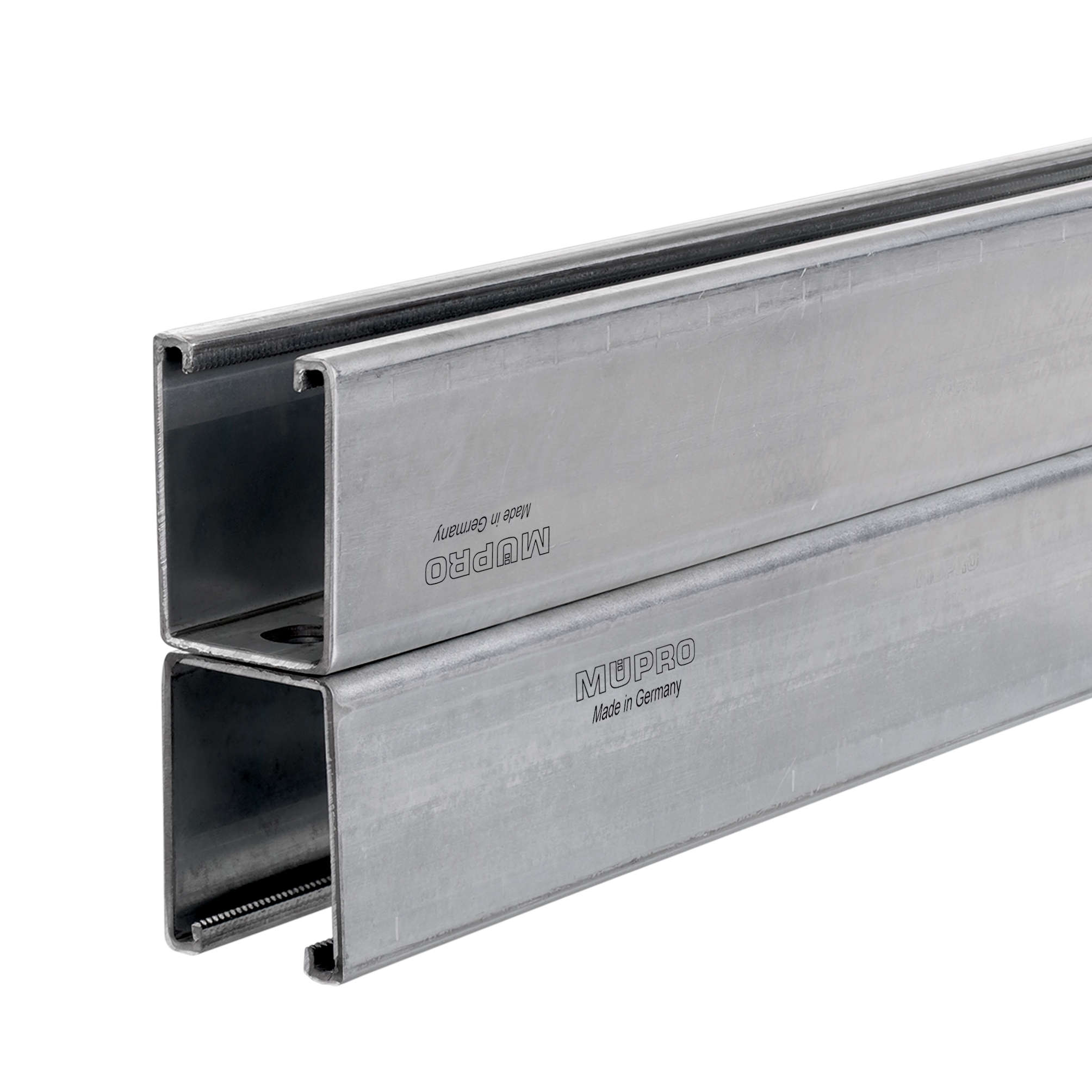

V4A MPR-Support channel 41/124/2.5, H-profile, length: 6,000 mm, unpickled

Art.no.: 154407

Sales unit:	1 Pieces
Weight/item:	40.560 kg

Field of application

Ideal for space-saving support of multisection pipeways between ceiling beams
Ideal for pipe installation as support structure for air ducts
Variety of mounting options in combination with extensive range of system components
For indoor and outdoor use

Advantages

Fast and efficient attachment of piping and pipe routes
Ideal combination of high bending stiffness and ease of installation
Channel slots on both sides allow simple and quick alignment of all suspended and floor-mounted pipe supports
Scale marks sideways and on the side with the slot simplify the alignment of the attachment elements during installation and facilitate the measuring and cutting to length of the section on site
Suitable vibration control elements for all support channels available
Clean-cut appearance by the use of MPR-protection caps
Meshing into the channel slot for positive-fit attachment of add-on parts

Product type:: Support channels
DNV approval:: Yes
Support channels:: for MPR-Profiles
Surface:: V4A
Customs tariff number:: 72224050
Material:: V4A

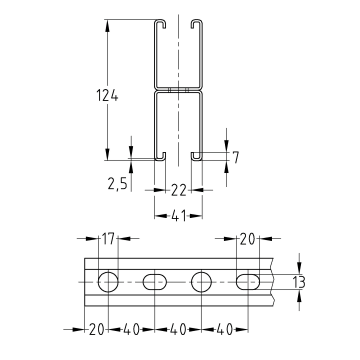

Profile:: 41/124/2.5 H
eCl@ss 11.1:: 23-36-01-90
Length:: 6000 mm
Basic data text:: V4A MPR-Support channel 41/124/2.5, H-profile, length: 6,000 mm, unpickled
eCl@ss 7.1:: 23-36-01-90
