MPR-Support channels 41/62/2.5 | 6000 mm | V4A

MPR-Support channels

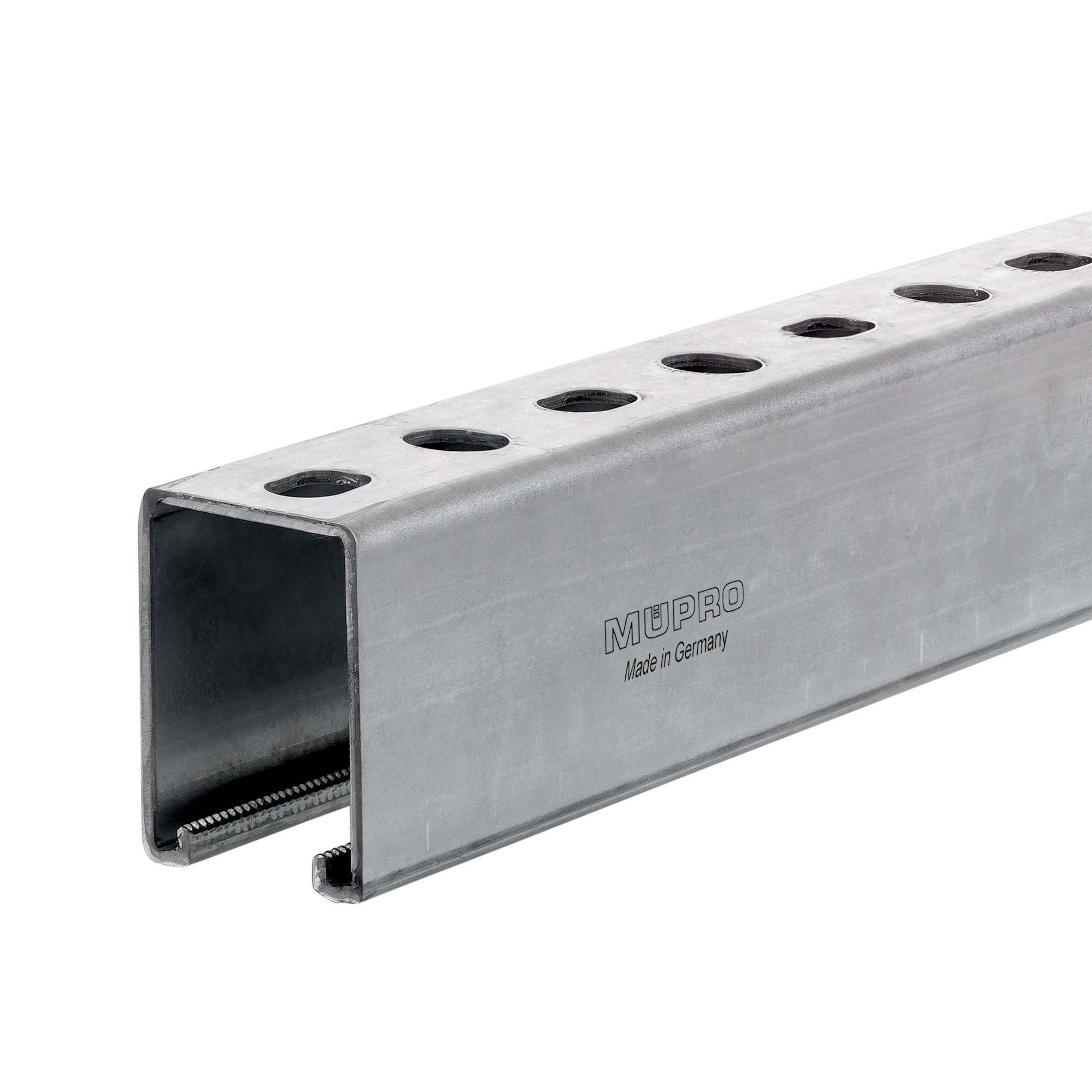

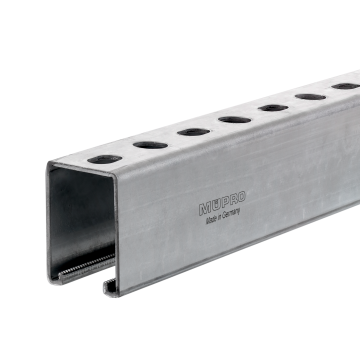

V4A MPR-Support channel 41/62/2.5, length: 6,000 mm

Art.no.: 154404
Sales unit: 1 Pieces
Weight/item: 20.280 kg

Field of application

  • Ideal for pipe installation as support structure for air ducts
  • Variety of mounting options in combination with extensive range of system components
  • For indoor and outdoor use

Advantages

  • Fast and efficient attachment of piping and pipe routes
  • High bending stiffness due to the cross-section design
  • Scale marks sideways and on the side with the slot simplify the alignment of the attachment elements during installation and facilitate the measuring and cutting to length of the section on site
  • For secure fixing that is adjustable laterally and vertically
  • For setting up structures with correctly measured static loads by means of diverse connection components
  • Meshing into the channel slot for positive-fit attachment of add-on parts
  • Clean-cut appearance by the use of MPR-protection caps
eCl@ss 7.1:
23-36-01-90
Basic data text:
V4A MPR-Support channel 41/62/2.5, length: 6,000 mm
eCl@ss 11.1:
23-36-01-90
DNV approval:
Yes
Customs tariff number:
72224050
Surface:
V4A
Product type:
Support channels
Support channels:
for MPR-Profiles
Profile:

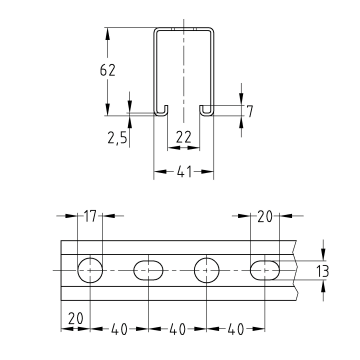

41/62/2.5
Length:
6000 mm
Material:
V4A
