Cantilever brackets

Cantilever brackets

galvanised

Display variants as list

Design:

100 x 100 x 4 mm 200 x 200 x 4 mm 200 x 200 x 6 mm 207 x 160 x 4 mm

Surface:

galvanised

Field of application

Ideal connecting element for the construction of cross-beams and frames systems with support channels
For use in dry interiors

Advantages

Variety of mounting possibilities when used with MPC- and MPR-Support channels
Strengthening and increasing the loading capacity of support channels and traverses
Even greater strength values can be achieved by bolting two equalsided cantilever brackets together

Product type:: Connecting parts
Surface:: galvanised
Material:: Steel
Support channels:: for MPC- and MPR-Profiles

Cantilever brackets, galvanised

	Product number	Design	Surface
	167126	100 x 100 x 4 mm	galvanised
	113628	200 x 200 x 4 mm	galvanised
	113643	200 x 200 x 6 mm	galvanised

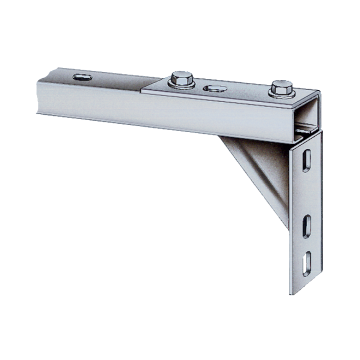

	113610	207 x 160 x 4 mm	galvanised
