MPT-Support profile Q50 Q50-2.5

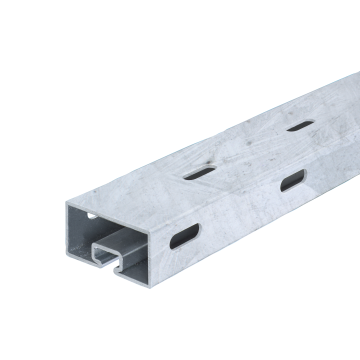

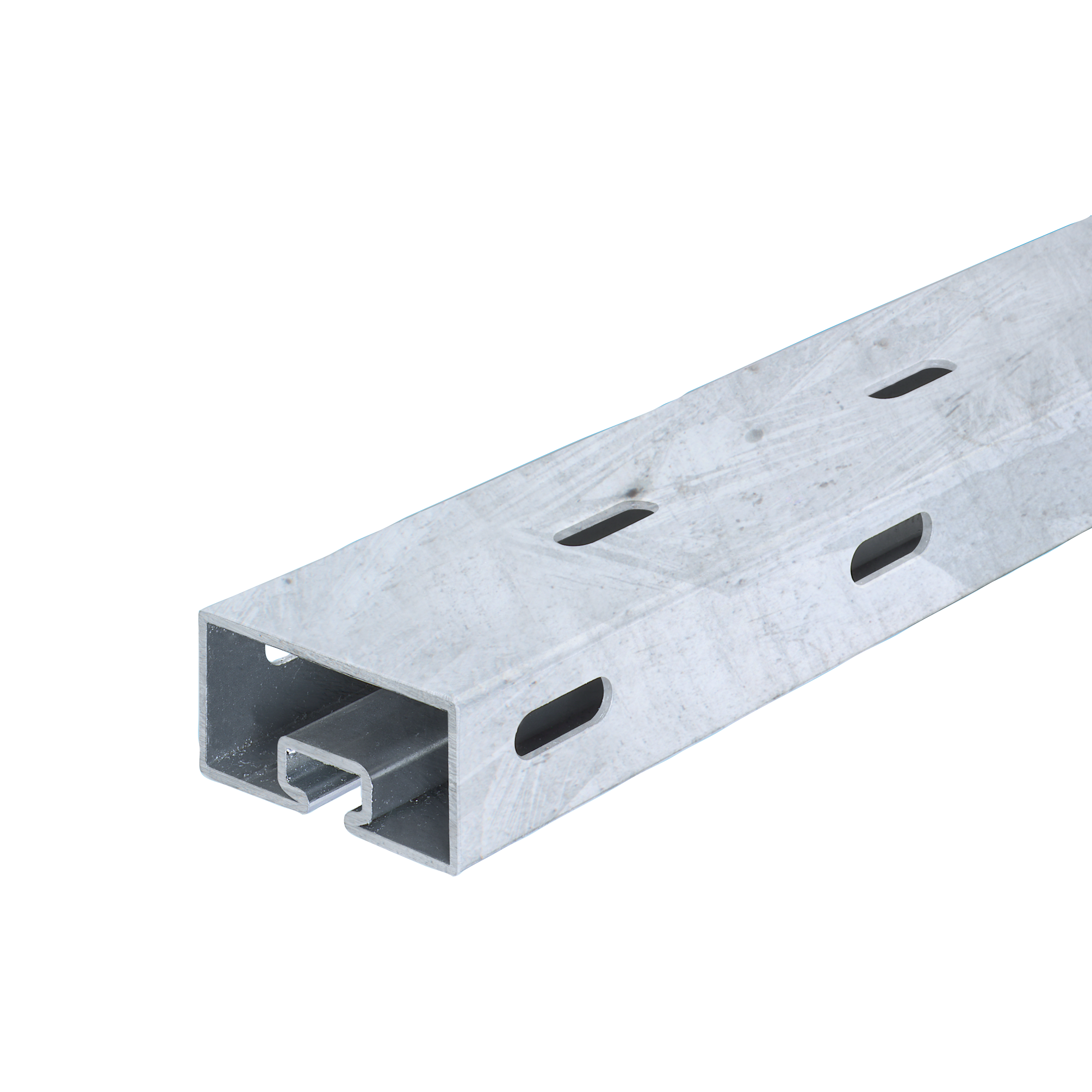

MPT-Support profile Q50

MPT-Support profile Q50, 2.5 mm, length: 6,000 mm, with 1 slots, hot-dip galvanised

Art.no.: 131624
Sales unit: 1 Pieces
Weight/item: 41.700 kg

Field of application

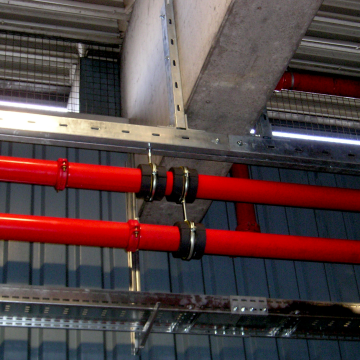

  • For support structures used in shipbuilding and on industrial and plant building sites

Advantages

  • High corrosion protection due to standardised hot-dip galvanising ensures flexible implementation outdoors and indoors
  • Saves time and costs during installation with the functional accessories matched to the support profile
  • Assurance of uniform product quality due to imprinted manufacturing code
  • Single-side continuous fastening groove for flexible arrangement of accessories and support parts
  • Clean-cut appearance by the use of MPT-protection caps
Basic data text:
MPT-Support profile Q50, 2.5 mm, length: 6,000 mm, with 1 slots, hot-dip galvanised
Support channels:
for MPT-Profiles
Material:
Steel
eCl@ss 11.1:
23-36-01-90
Profile:
Q50-2.5
Surface:
hot-dip galvanised
Customs tariff number:
72166110
Product type:
Support channels
eCl@ss 7.1:
23-36-01-90
Thickness s:
2.5 mm
