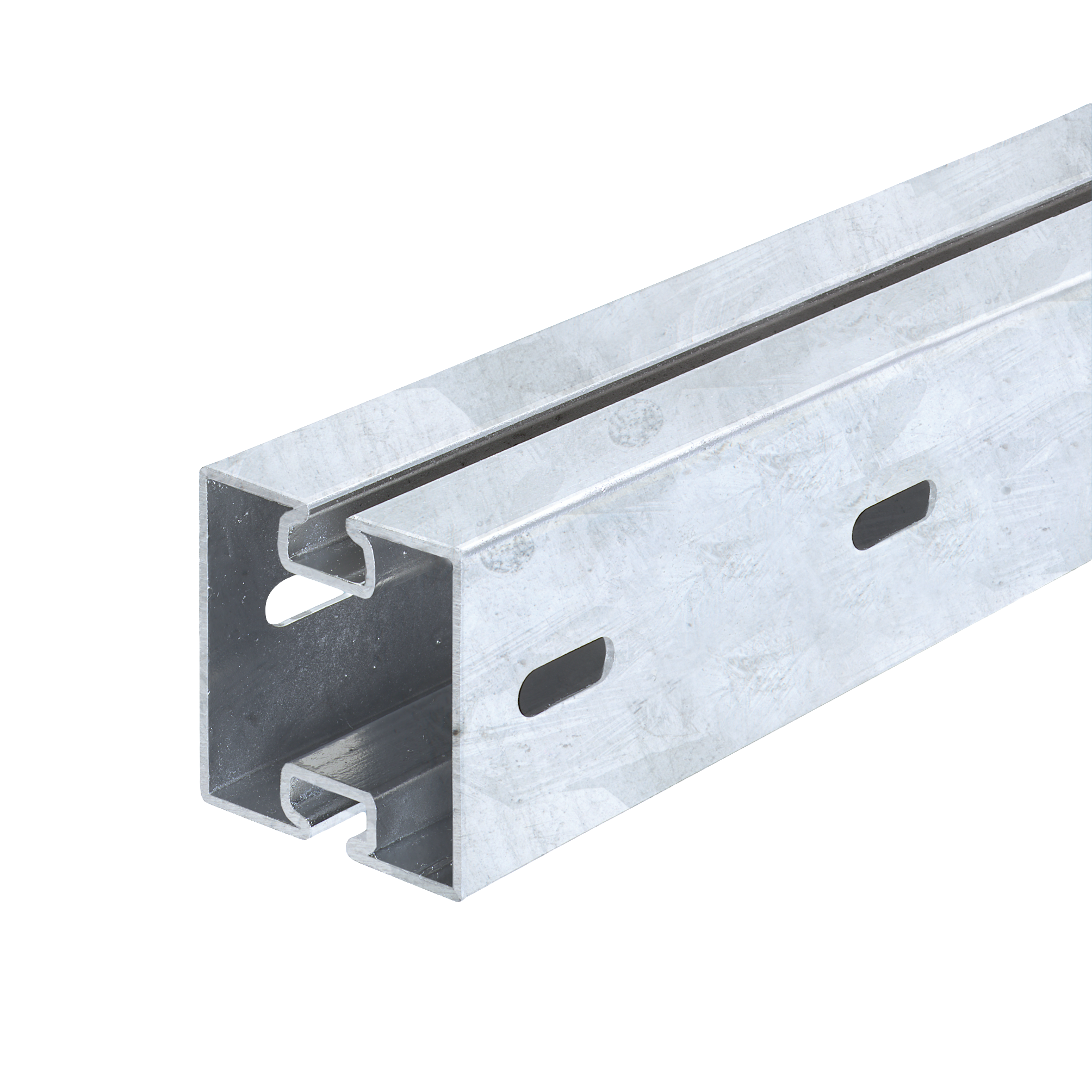

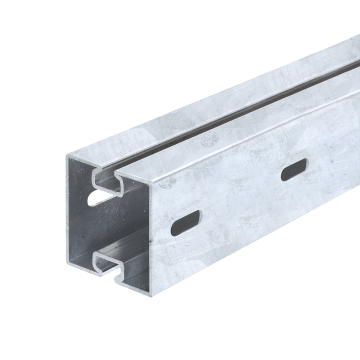

MPT-Support profile Q80

MPT-Support profile Q80, 2 mm, length: 6,000 mm, with 2 slots, hot-dip galvanised

Art.no.: 167323

Sales unit:	1 Pieces
Weight/item:	41.400 kg

Field of application

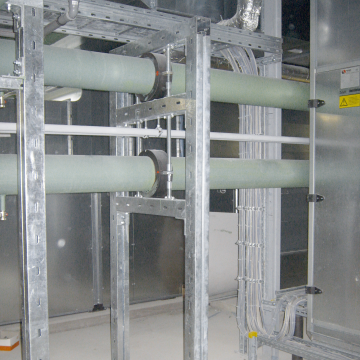

For support structures used in shipbuilding and on industrial and plant building sites

Advantages

For construction of safe structures due to the high load-bearing capacity of the profile
High corrosion protection due to standardised hot-dip galvanising ensures flexible implementation outdoors and indoors
Efficient installation due to the double fastening groove
Saves time and costs due to functional accessories that are matched to the support profile
System components with finished surface and ready for installation save set-up and installation time
Product quality is ensured through the imprinted manufacturing code
Continuous fastening groove for flexible arrangement of accessories and fastening components
Clean-cut appearance by the use of MPT-protection caps

eCl@ss 11.1:: 23-36-01-90

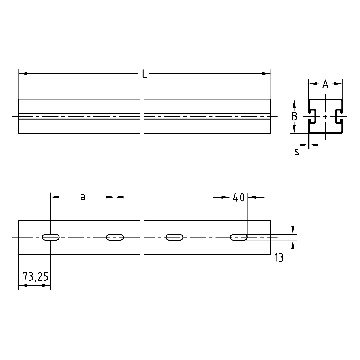

Dimension a:: 150 mm
Material:: Steel
Surface:: hot-dip galvanised
Support channels:: for MPT-Profiles
Profile:: Q80-2.0
Basic data text:: MPT-Support profile Q80, 2 mm, length: 6,000 mm, with 2 slots, hot-dip galvanised
Dimension B:: 80 mm
Thickness s:: 2 mm
Dimension A:: 80 mm
Customs tariff number:: 72166110
Product type:: Support channels
eCl@ss 7.1:: 23-36-02-90
