Field of application

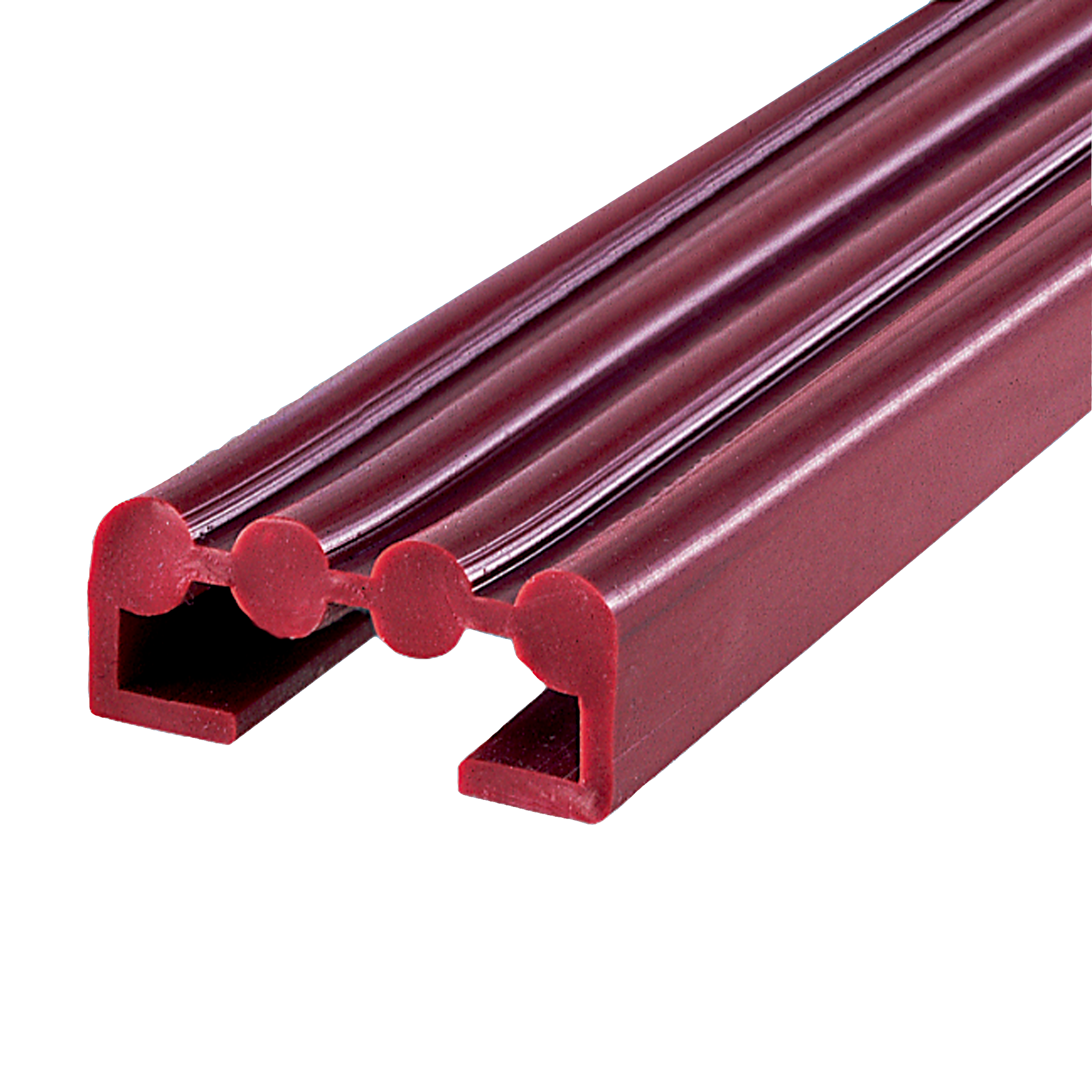

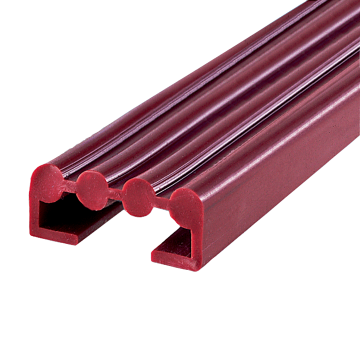

  • Ideal pipe clamp lining for high temperature range up to 200 °C

Advantages

  • Average vibration reduction up to 24 dB(A) due to 6 mm cylindrical profile
  • Resistant to temperatures up to 200 °C
  • Temperature range from -60 °C to +200 °C
  • Prevents the occurrence of friction and stiction noises caused by thermal, axial expansion of the pipe
  • Prevents the build-up of forces on the attachment due to the good rolling motion of the lining
  • Clip-over edges prevent the lining from slipping out of the clamp
Average vibration reduction
24 dB(A)
Product type
Pipe clamp linings
Vibration control tested
Yes
Further technical details can be found in the data sheet.
