Field of application

  • Suitable for fixings in shipbuilding and industrial areas
  • Suitable for fastening of drinking water and heating pipes
  • For indoor use

Advantages

  • The easy to install quick fastening enables the efficient pipe support in any position
  • Quick and reliable snapping in of the fastener once the clamp is closed, holding the pipe securely
  • The easy to swivel lower clamp half allows opening and closing of the pipe clamp with only one hand
  • Captive fastening bolts
  • Wide opening of the clamp due to the swivelling ability of the lower clamp half
  • Low vibration entry and exit areas due to the ribbed profile of the DÄMMGULAST® lining

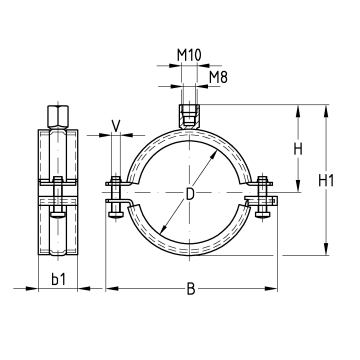

  • Connection thread M8/M10 for suspended, floor or wall mounting
  • DÄMMGULAST® vibration control lining with green identification stripe: average sound level improvement up to 18 dB(A)
Surface:
galvanised
Material:
Steel
Product type:
Pipe clamps medium load range
Average vibration reduction:
18 dB(A)
Locking technology:
Quick locking
