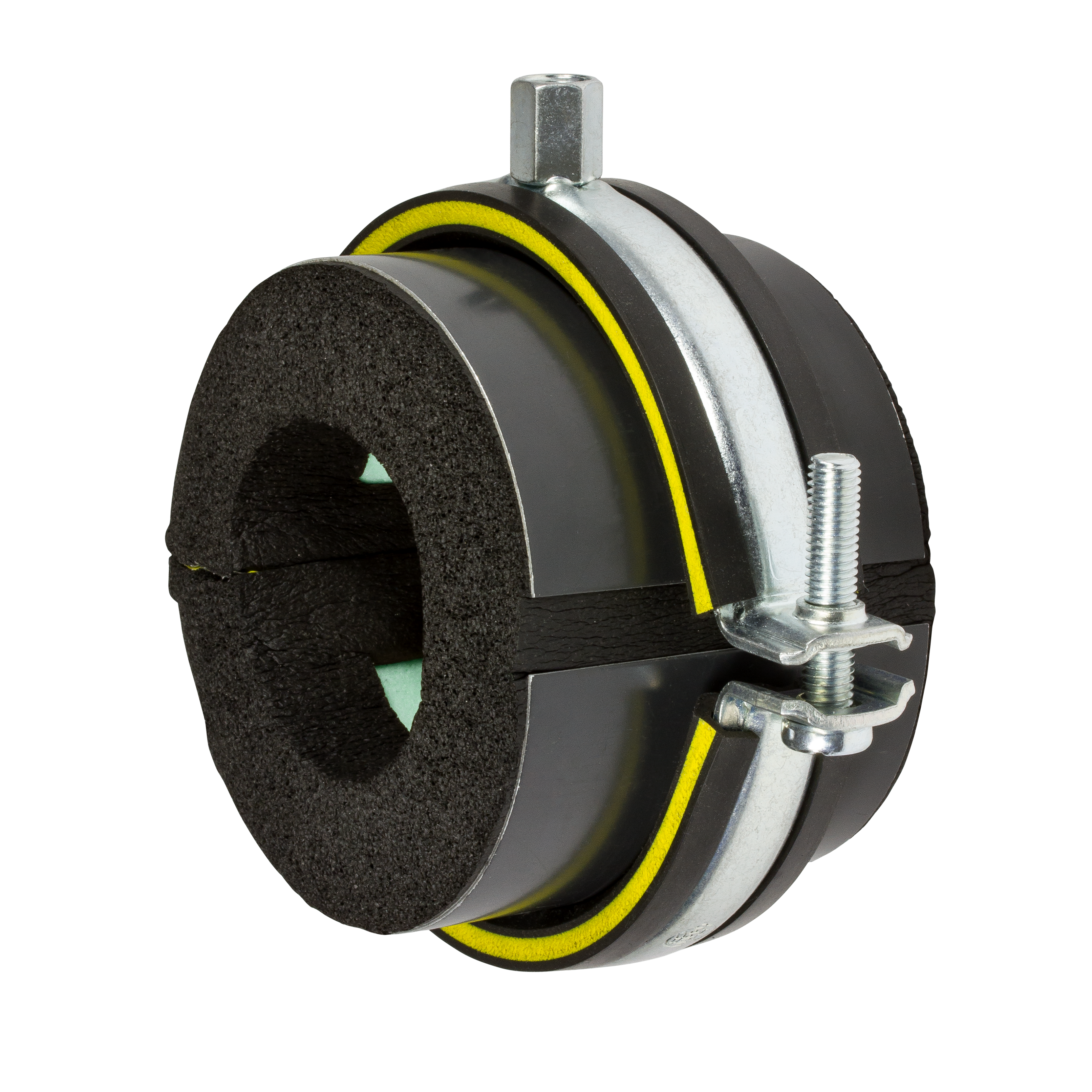

Insulation clamps type H, M, T

two-piece, with single bossed clamps with DÄMMGULAST® yellow, galvanised

Display variants as list

Type:

Type H - Insulation thickness 9.5 - 16 mm Type M - Insulation thickness 15.5 - 25 mm Type T - Insulation thickness 32 - 45 mm

Vibration control lining:

DÄMMGULAST® yellow

Clamping range:

10 - 13.5 mm 15 - 18 mm 21.3 - 25 mm 26.9 - 28 mm 26.9 - 30 mm 30 mm 33.7 - 38 mm 42 - 44.5 mm 48.3 mm 54 - 57 mm 60.3 - 64 mm 70 mm 76.1 - 80 mm 88.9 mm 101.6 - 108 mm 102 - 108 mm 114.3 mm 125 mm 133 mm 139.7 mm 160 mm 165.1 mm 165 - 168 mm 168.3 mm 200 mm 216 - 219 mm 267 mm 273 mm

Field of application

Thermal decoupled pipe attachment in the field of refrigeration
Specially suitable for attachments in ventilation, air-conditioning, heating, refrigeration installations as well as for hot and chilled water pipes

Advantages

Rigorous avoidance of temperature bridges in cold pipelines
Highly effective insulation due to support elements made of PET and a synthetic rubber mantle
Insulation thickness matched to the increasing insulation layer thickness of the insulation sleeves
Reliable water vapour diffusion barrier
Easy installation using self-adhesive fasteners in the part-joint
Rubber surfaces on the face sides allow easy bonding with the rubber pipe insulation
Fixed load-distribution sleeves for improved load transfer
Structure-borne noise damping due to DÄMMGULAST® vibration control lining with yellow identification stripe: Average sound level improvement up to 22 dB(A)

Vibration control lining:: DÄMMGULAST® yellow
Average vibration reduction:: 22 dB(A)
Product type:: Refrigerant pipe clamps

Insulation clamps type H, M, T, two-piece, with single bossed clamps with DÄMMGULAST® yellow and insulation shells, galvanised

Product number	Type	Vibration control lining	Clamping range
111364	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® yellow	10 - 13.5 mm
111404	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® yellow	10 - 13.5 mm
111374	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® yellow	15 - 18 mm
111414	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® yellow	15 - 18 mm
111527	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® yellow	15 - 18 mm
111380	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® yellow	21.3 - 25 mm
111426	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® yellow	21.3 - 25 mm
111537	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® yellow	21.3 - 25 mm
111382	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® yellow	26.9 - 28 mm
111430	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® yellow	26.9 - 30 mm
111541	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® yellow	26.9 - 30 mm
111384	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® yellow	30 mm
111432	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® yellow	33.7 - 38 mm
111386	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® yellow	33.7 - 38 mm
111547	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® yellow	33.7 - 38 mm
111388	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® yellow	42 - 44.5 mm
111434	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® yellow	42 - 44.5 mm
111549	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® yellow	42 - 44.5 mm
111390	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® yellow	48.3 mm
111436	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® yellow	48.3 mm
111551	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® yellow	48.3 mm
111392	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® yellow	54 - 57 mm
111438	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® yellow	54 - 57 mm
111553	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® yellow	54 - 57 mm
111440	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® yellow	60.3 - 64 mm
111394	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® yellow	60.3 - 64 mm
111555	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® yellow	60.3 - 64 mm
111396	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® yellow	70 mm
111442	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® yellow	70 mm
111557	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® yellow	70 mm
111398	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® yellow	76.1 - 80 mm
111444	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® yellow	76.1 - 80 mm
111559	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® yellow	76.1 - 80 mm
111400	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® yellow	88.9 mm
111446	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® yellow	88.9 mm
111560	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® yellow	88.9 mm
111402	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® yellow	101.6 - 108 mm
111362	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® yellow	102 - 108 mm
111515	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® yellow	102 - 108 mm
111366	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® yellow	114.3 mm
111406	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® yellow	114.3 mm
111519	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® yellow	114.3 mm
111368	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® yellow	125 mm
111408	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® yellow	125 mm
111521	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® yellow	125 mm
111370	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® yellow	133 mm
111410	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® yellow	133 mm
111523	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® yellow	133 mm
111372	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® yellow	139.7 mm
111412	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® yellow	139.7 mm
111525	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® yellow	139.7 mm
111376	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® yellow	160 mm
111416	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® yellow	160 mm
111529	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® yellow	160 mm
111418	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® yellow	165.1 mm
111531	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® yellow	165.1 mm
111378	Type H - Insulation thickness 9.5 - 16 mm	DÄMMGULAST® yellow	165 - 168 mm
111420	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® yellow	168.3 mm
111533	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® yellow	168.3 mm
111535	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® yellow	200 mm
111428	Type M - Insulation thickness 15.5 - 25 mm	DÄMMGULAST® yellow	216 - 219 mm
111539	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® yellow	216 - 219 mm
111543	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® yellow	267 mm
111545	Type T - Insulation thickness 32 - 45 mm	DÄMMGULAST® yellow	273 mm
