Field of application

  • Suitable for fixings in shipbuilding and industrial areas
  • Suitable for fastening of drinking water and heating pipes
  • For indoor use

Advantages

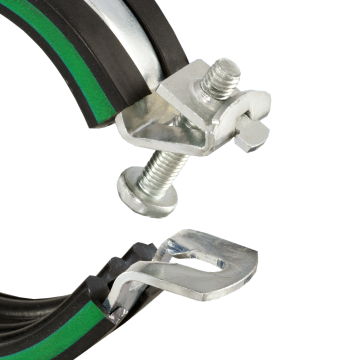

  • Practical latching fastener
  • Easy clicking-in of the fastening bolt with the tip of a finger
  • High safety due to the positive-fit edge hook-in opening
  • The pipe is free to move during the installation
  • No inadvertent opening once it has clicked in, due to the safety latching fastener
  • Quick installation due to the single fastening bolt
  • The easy click-in fastener allows opening and closing of the pipe clamp with only one hand
  • Captive fastening bolt
  • Fastener retains the pipe securely even at the full opening angle of the clamp
  • DÄMMGULAST® vibration control lining with green identification stripe: average sound level improvement up to 18 dB(A)
  • Vibration control tested
  • This product is awarded with the "Gütezeichen Rohrbefestigung" (quality mark of pipe support) and is submitted to controls according to RAL-GZ 655-B

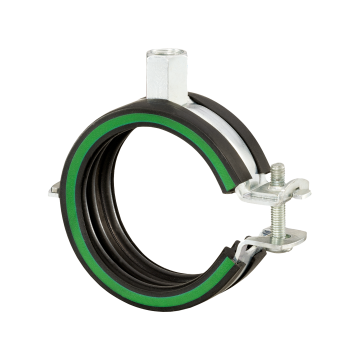

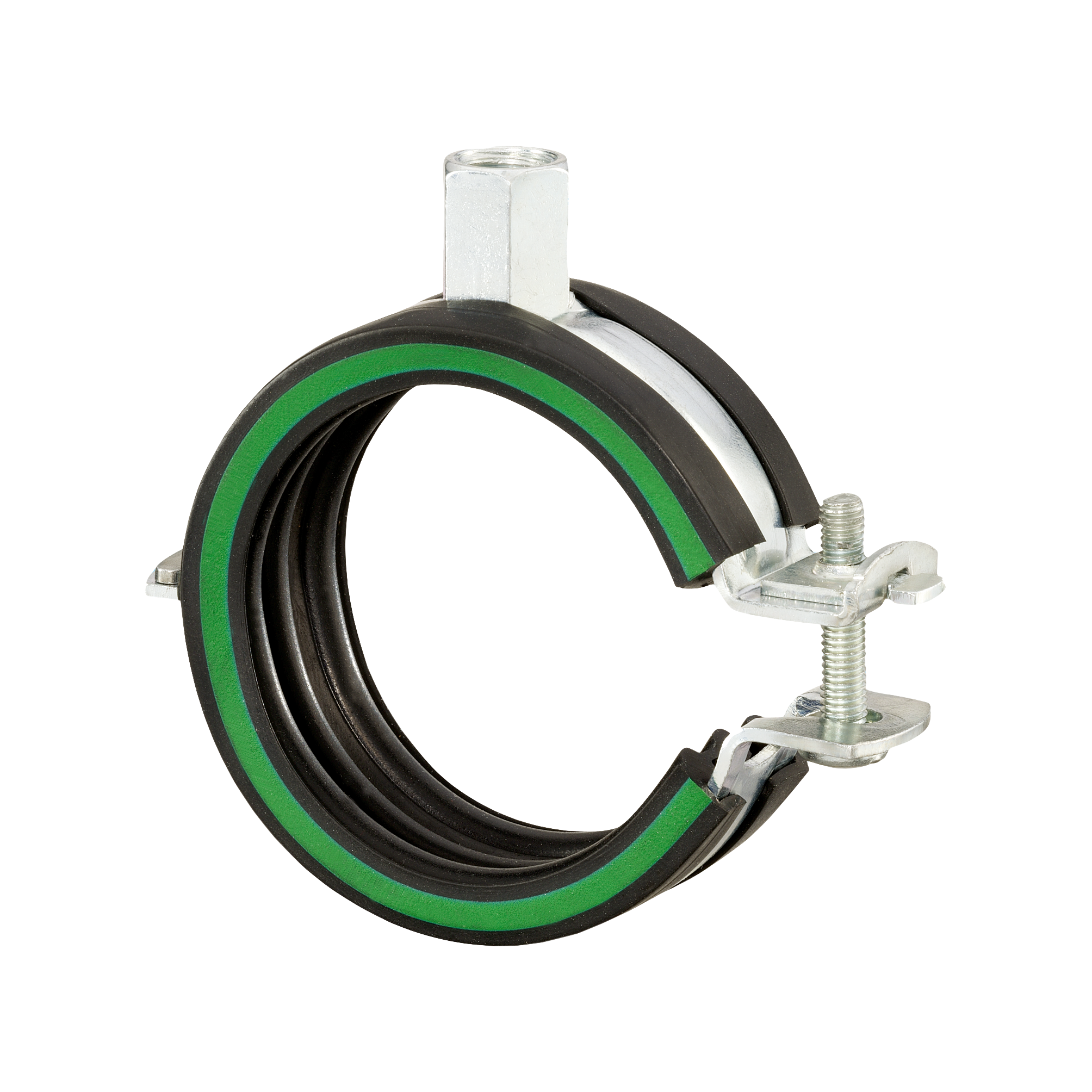

Vibration control lining
DÄMMGULAST® green
Locking technology
Quick locking
Material
Steel
Surface
galvanised
Average vibration reduction
18 dB(A)
Product type
Pipe clamps light load range
Further technical details can be found in the data sheet.
