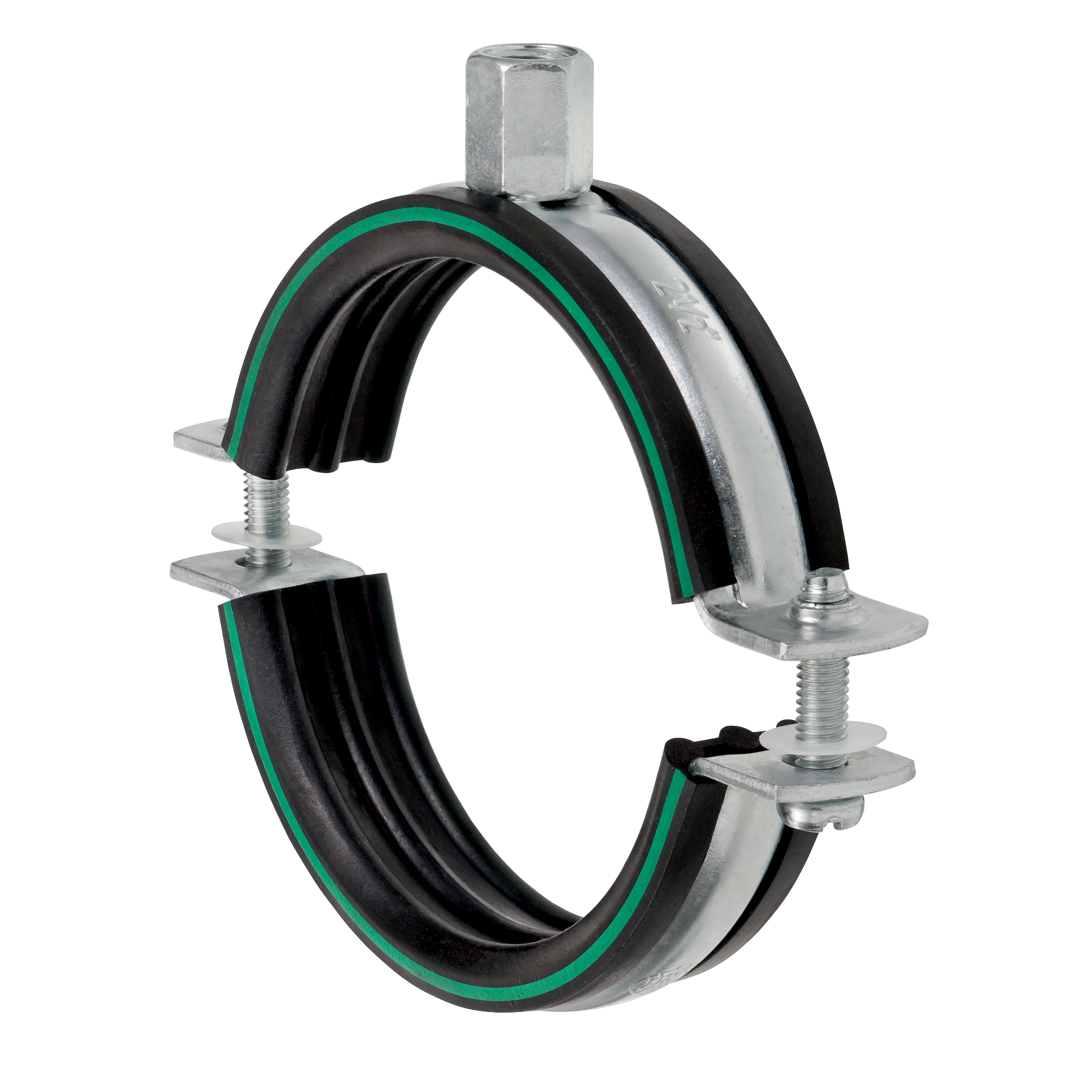

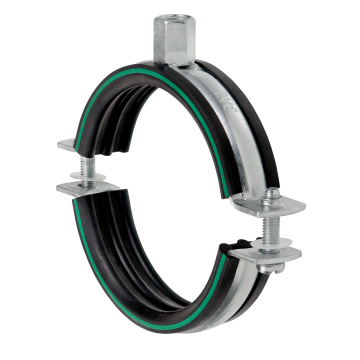

Single bossed clamps JUNIOR

Single bossed clamps JUNIOR

two-piece, galvanised

Display variants as list

Clamping range:

6 - 15 mm 15 - 19 mm 20 - 25 mm 25 - 30 mm 33 - 37 mm 42 - 46 mm 47 - 52 mm 54 - 58 mm 59 - 63 mm 68 - 73 mm 72 - 80 mm 82 - 85 mm 88 - 92 mm 99 - 103 mm 108 - 112 mm 112 - 118 mm 125 - 130 mm 133 - 137 mm 137 - 142 mm 159 - 164 mm 164 - 169 mm

Content:

100 pieces 50 pieces 25 pieces 200 pieces/box

Field of application

Suitable for fixings in shipbuilding and industrial areas
Suitable for fastening of drinking water and heating pipes
For indoor use

Advantages

Proven two-piece clamp
High stiffness due to reinforcing bead
The 2 locking screws allow adjustment to accommodate a greater variation in pipe diameter
Tightening bolts with combination cross-head convenient for power driver
Fastener screws with captive washer
Connecting thread with combithread M8/M10
DÄMMGULAST® vibration control lining with green identification stripe: average sound level improvement up to 18 dB(A)
Vibration control tested

Average vibration reduction:: 18 dB(A)
Surface:: galvanised
Vibration control lining:: DÄMMGULAST® green
Product type:: Pipe clamps medium load range

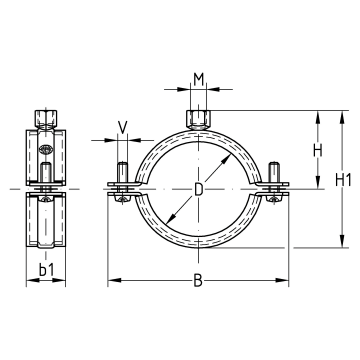

Single bossed clamps JUNIOR, two-piece, galvanised

	Product number	Clamping range	Content
	142357	6 - 15 mm	100 pieces
	142358	15 - 19 mm	100 pieces
	142359	20 - 25 mm	100 pieces
	142360	25 - 30 mm	100 pieces
	142361	33 - 37 mm	100 pieces
	142362	42 - 46 mm	50 pieces
	142363	47 - 52 mm	50 pieces
	142364	54 - 58 mm	50 pieces
	142365	59 - 63 mm	50 pieces
	142366	68 - 73 mm	50 pieces
	142367	72 - 80 mm	50 pieces
	142368	82 - 85 mm	50 pieces
	142369	88 - 92 mm	50 pieces
	142370	99 - 103 mm	50 pieces
	142371	108 - 112 mm	50 pieces
	142372	112 - 118 mm	50 pieces
	142373	125 - 130 mm	25 pieces
	142374	133 - 137 mm	25 pieces
	142375	137 - 142 mm	25 pieces
	142376	159 - 164 mm	25 pieces
	142377	164 - 169 mm	25 pieces
	143958	15 - 19 mm	200 pieces/box
	143959	20 - 25 mm	200 pieces/box
	143960	25 - 30 mm	200 pieces/box
	143961	33 - 37 mm	200 pieces/box
