Field of application

  • Suitable combination for pipelines with dynamic loads with expansion points
  • Suitable for fixings in shipbuilding and industrial areas
  • Suitable for fixings in air-conditioning, ventilation and sanitary areas
  • For indoor use

Advantages

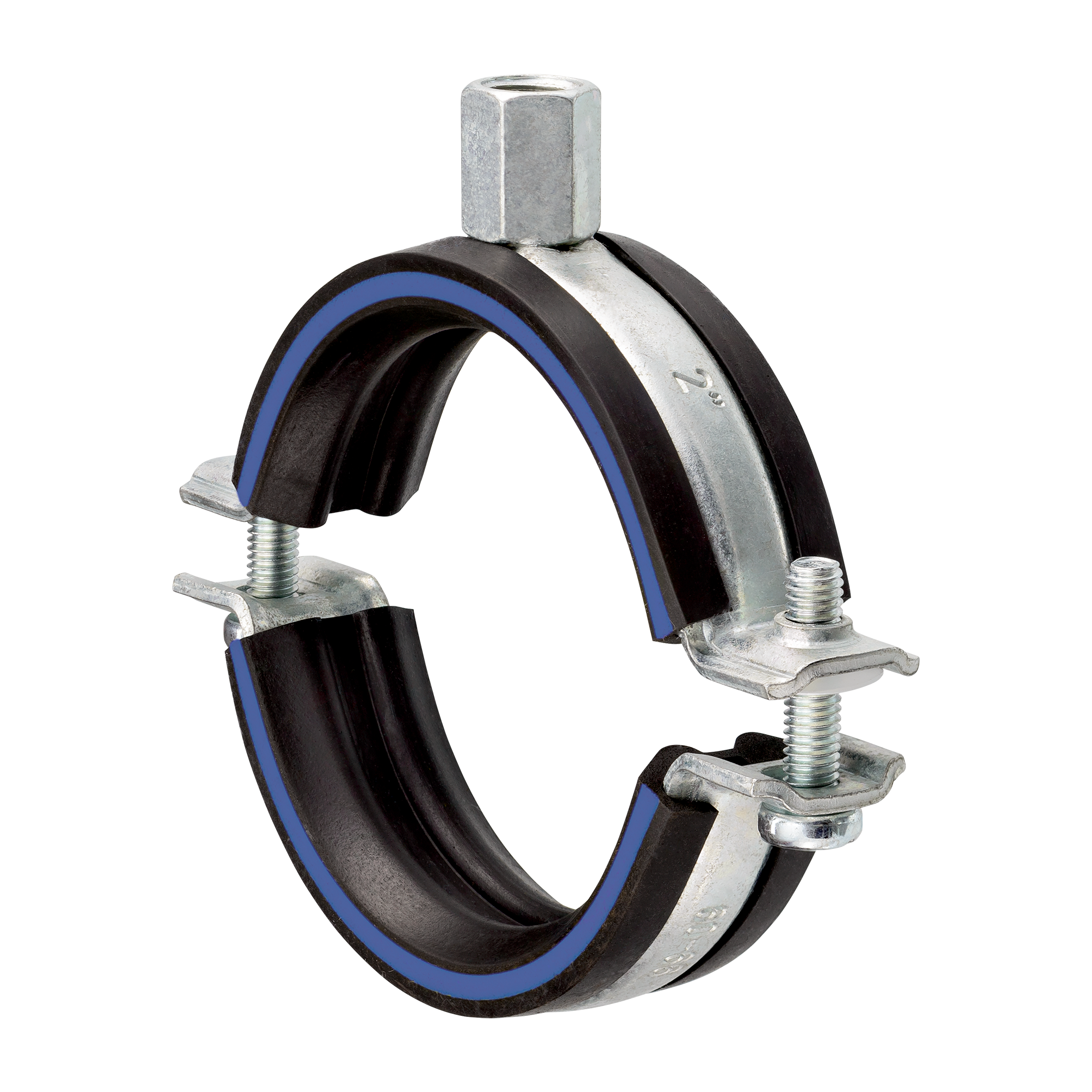

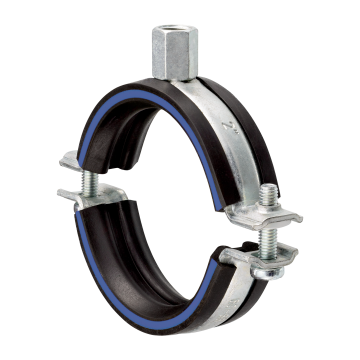

  • Proven two-piece single bossed clamp
  • The 2 locking screws allow adjustment to accommodate a greater variation in pipe diameter
  • DÄMMGULAST® Vibration control lining with blue indicator stripe, fire class B1 in accordance with DIN 4102, non-dripping in a fire
  • Average sound level improvement up to 16.5 dB(A)
  • Tightening bolts with combination cross-head convenient for power driver
  • Tightening bolts secured with captive washers
  • Heavy-duty type with high load capacity due to creased shape
  • Acoustic insulation, positive-fit liner with wide clip-over edges prevent the lining from slipping out of the pipe clamp
  • This product is awarded with the "Gütezeichen Rohrbefestigung" (quality mark of pipe support) up to size ≤ 200 mm and is submitted to controls according to RAL-GZ 655-B
Product type:
Pipe clamps medium load range
Surface:
galvanised
Vibration control lining:
DÄMMGULAST® blue
Average vibration reduction:
16.5 dB(A)
