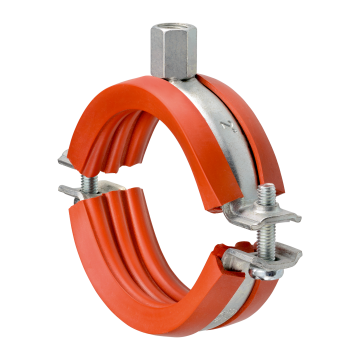

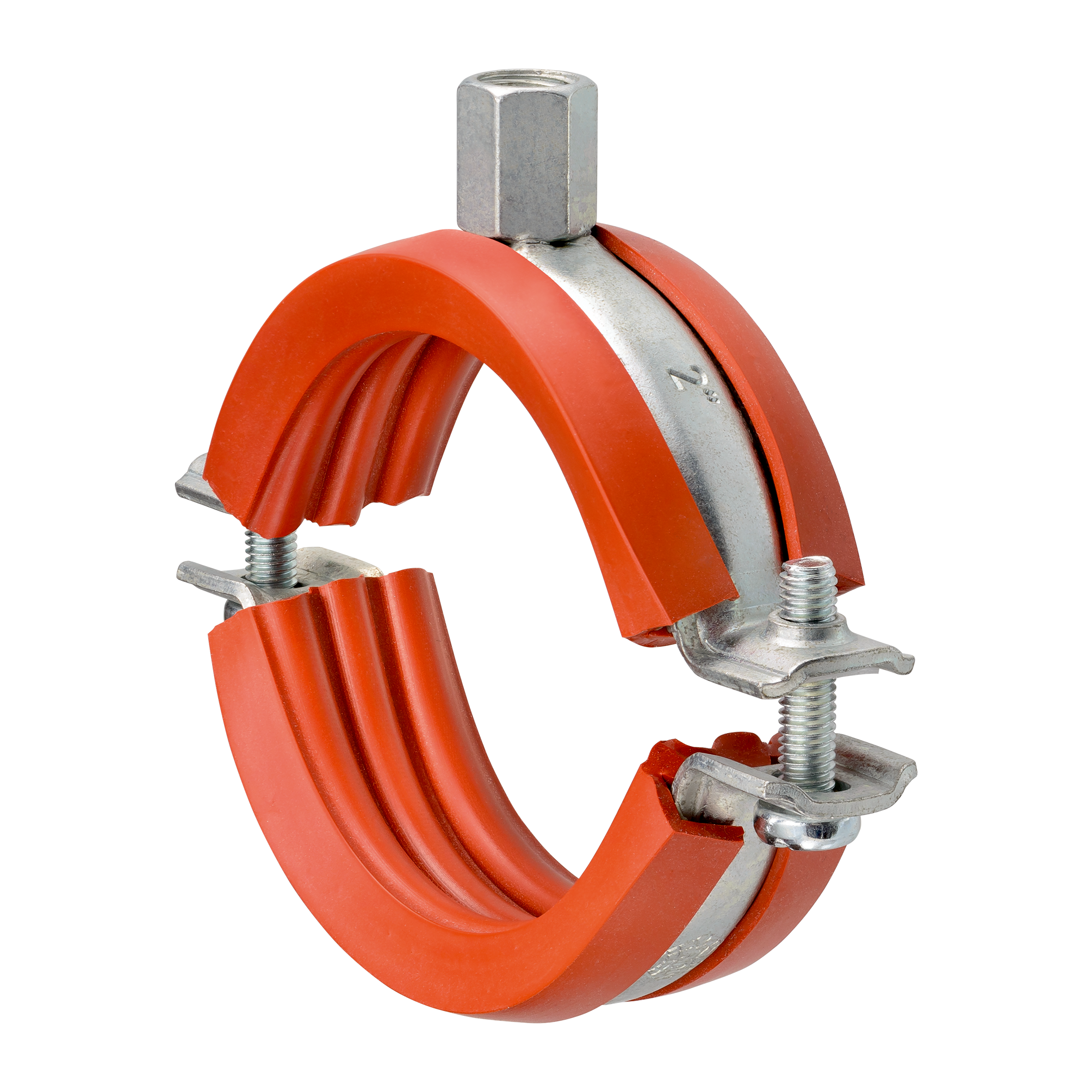

Single bossed clamps

with DÄMMGULAST® red, galvanised

Display variants as list

Connecting thread:

M8/M10 M10/M12

Vibration control lining:

DÄMMGULAST® red

Clamping range:

14 - 20 mm 21 - 26 mm 26 - 30 mm 31 - 38 mm 40 - 47 mm 48 - 54 mm 54 - 60 mm 60 - 66 mm 68 - 73 mm 73 - 80 mm 82 - 87 mm 87 - 94 mm 99 - 104 mm 105 - 112 mm 112 - 118 mm 122 - 128 mm 132 - 137 mm 137 - 142 mm 142 - 148 mm 149 - 156 mm 159 - 164 mm 164 - 169 mm 169 - 172 mm 177 - 183 mm 197 - 203 mm 208 - 214 mm 217 - 225 mm

Field of application

Suitable combination for pipelines with dynamic loads with expansion points
Suitable for fixings in shipbuilding and industrial areas
Suitable for fastening of drinking water and heating pipes as well as for thermical oil pipes
Attachment of pipelines in increased temperature ranges
For indoor use

Advantages

Proven two-piece single bossed clamp
The 2 locking screws allow adjustment to accommodate a greater variation in pipe diameter
With high-temperature resistant DÄMMGULAST® Vibration control lining red
The high-quality DÄMMGULAST® section maintains its properties in the temperature range -60 °C to +200 °C
Average sound level improvement up to 24 dB(A)
Tightening bolts with combination cross-head convenient for power driver
Tightening bolts secured with captive washers
Heavy-duty type with high load capacity due to creased shape
Acoustic insulation, positive-fit liner with wide clip-over edges prevent the lining from slipping out of the pipe clamp
This product is awarded with the "Gütezeichen Rohrbefestigung" (quality mark of pipe support) up to size ≤ 200 mm and is submitted to controls according to RAL-GZ 655-B

Surface:: galvanised
Vibration control lining:: DÄMMGULAST® red
Material:: Steel
Average vibration reduction:: 24 dB(A)
Product type:: Pipe clamps medium load range

Single bossed clamps, with DÄMMGULAST® red, galvanised

Product number	Connecting thread	Vibration control lining	Clamping range
151532	M8/M10	DÄMMGULAST® red	14 - 20 mm
151533	M8/M10	DÄMMGULAST® red	21 - 26 mm
151534	M8/M10	DÄMMGULAST® red	26 - 30 mm
151535	M8/M10	DÄMMGULAST® red	31 - 38 mm
151537	M8/M10	DÄMMGULAST® red	40 - 47 mm
151538	M8/M10	DÄMMGULAST® red	48 - 54 mm
151539	M8/M10	DÄMMGULAST® red	54 - 60 mm
151540	M8/M10	DÄMMGULAST® red	60 - 66 mm
151542	M8/M10	DÄMMGULAST® red	68 - 73 mm
151543	M8/M10	DÄMMGULAST® red	73 - 80 mm
151544	M8/M10	DÄMMGULAST® red	82 - 87 mm
151545	M8/M10	DÄMMGULAST® red	87 - 94 mm
151546	M8/M10	DÄMMGULAST® red	99 - 104 mm
151547	M8/M10	DÄMMGULAST® red	105 - 112 mm
151548	M8/M10	DÄMMGULAST® red	112 - 118 mm
151549	M8/M10	DÄMMGULAST® red	122 - 128 mm
151550	M8/M10	DÄMMGULAST® red	132 - 137 mm
151551	M8/M10	DÄMMGULAST® red	137 - 142 mm
151552	M8/M10	DÄMMGULAST® red	142 - 148 mm
151553	M8/M10	DÄMMGULAST® red	149 - 156 mm
151554	M8/M10	DÄMMGULAST® red	159 - 164 mm
151555	M8/M10	DÄMMGULAST® red	164 - 169 mm
151560	M10/M12	DÄMMGULAST® red	31 - 38 mm
151562	M10/M12	DÄMMGULAST® red	40 - 47 mm
151563	M10/M12	DÄMMGULAST® red	48 - 54 mm
151564	M10/M12	DÄMMGULAST® red	54 - 60 mm
151565	M10/M12	DÄMMGULAST® red	60 - 66 mm
151567	M10/M12	DÄMMGULAST® red	68 - 73 mm
151568	M10/M12	DÄMMGULAST® red	73 - 80 mm
151569	M10/M12	DÄMMGULAST® red	82 - 87 mm
151570	M10/M12	DÄMMGULAST® red	87 - 94 mm
151571	M10/M12	DÄMMGULAST® red	99 - 104 mm
151572	M10/M12	DÄMMGULAST® red	105 - 112 mm
151573	M10/M12	DÄMMGULAST® red	112 - 118 mm
151574	M10/M12	DÄMMGULAST® red	122 - 128 mm
151575	M10/M12	DÄMMGULAST® red	132 - 137 mm
151576	M10/M12	DÄMMGULAST® red	137 - 142 mm
151577	M10/M12	DÄMMGULAST® red	142 - 148 mm
151578	M10/M12	DÄMMGULAST® red	149 - 156 mm
151579	M10/M12	DÄMMGULAST® red	159 - 164 mm
151580	M10/M12	DÄMMGULAST® red	164 - 169 mm
151581	M10/M12	DÄMMGULAST® red	169 - 172 mm
151582	M10/M12	DÄMMGULAST® red	177 - 183 mm
151583	M10/M12	DÄMMGULAST® red	197 - 203 mm
151584	M10/M12	DÄMMGULAST® red	208 - 214 mm
151585	M10/M12	DÄMMGULAST® red	217 - 225 mm
