Field of application

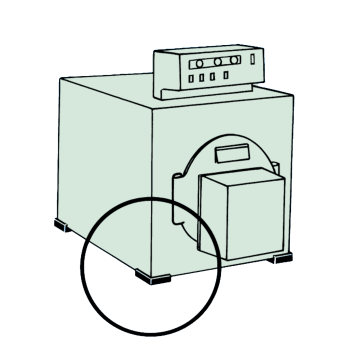

  • For the structure-borne vibration control of boilers, air-conditioning and ventilation systems
  • Simply slip under item to be supported: no fixings on floor or equipment are necessary

Advantages

  • Dampens the transfer of structureborne noise to the building structure
  • Low overall height
  • Highly elastic rubber pad absorbs up to 95 % of its own and external vibrations
  • Oil-resistant, synthetic rubber
  • Resistant to temperatures from -50 °C to +120 °C
  • Aluminium base plate

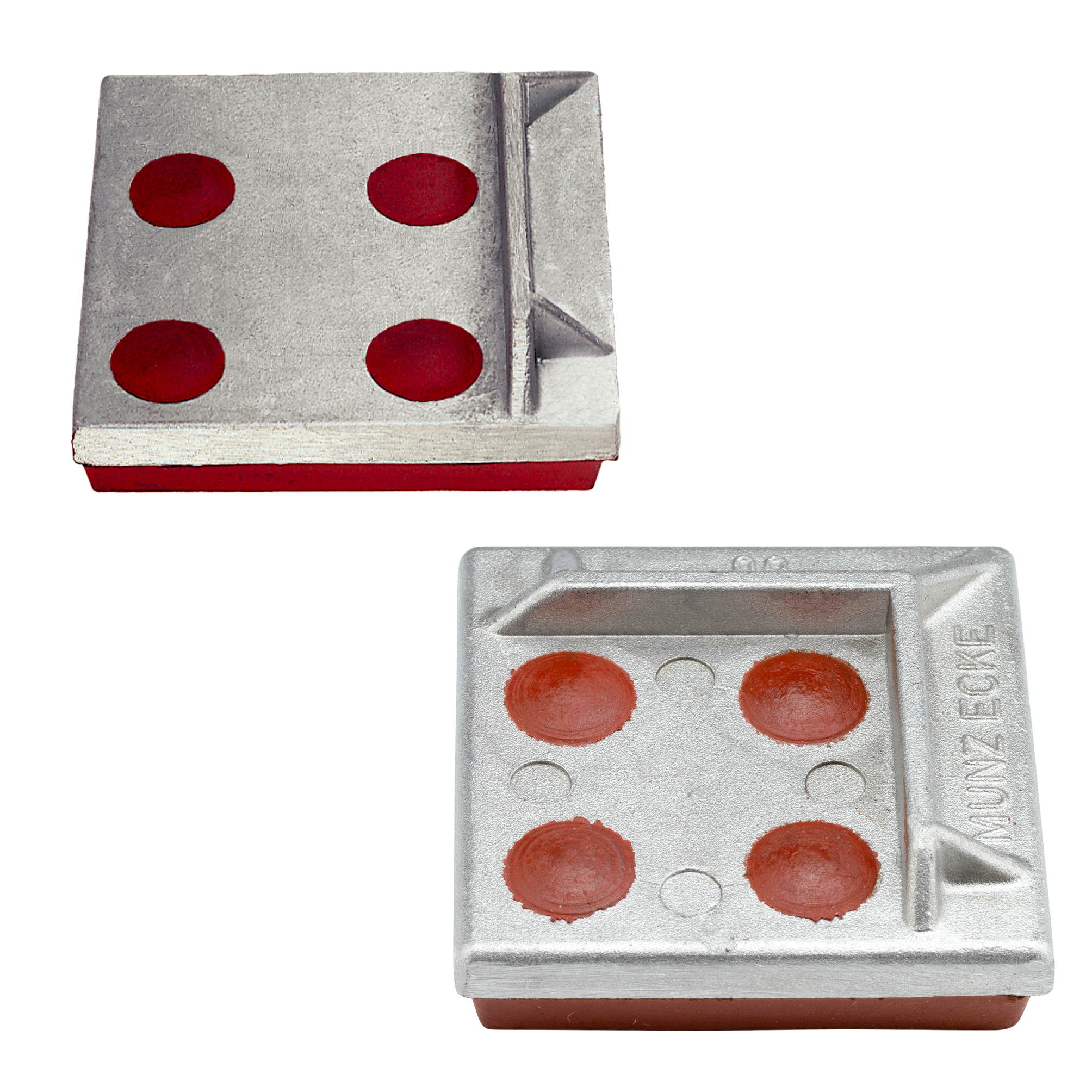

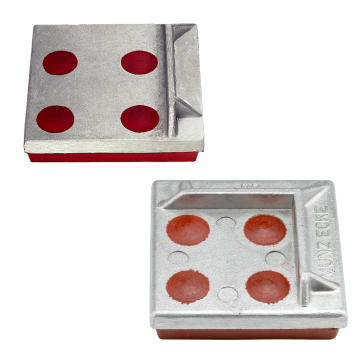

  • Available with side stop or with angle stop
Surface:
galvanised
Vibration control tested:
Yes
eCl@ss 7.1:
25-02-04-12
