PHONOLYT® Button

PHONOLYT® Button

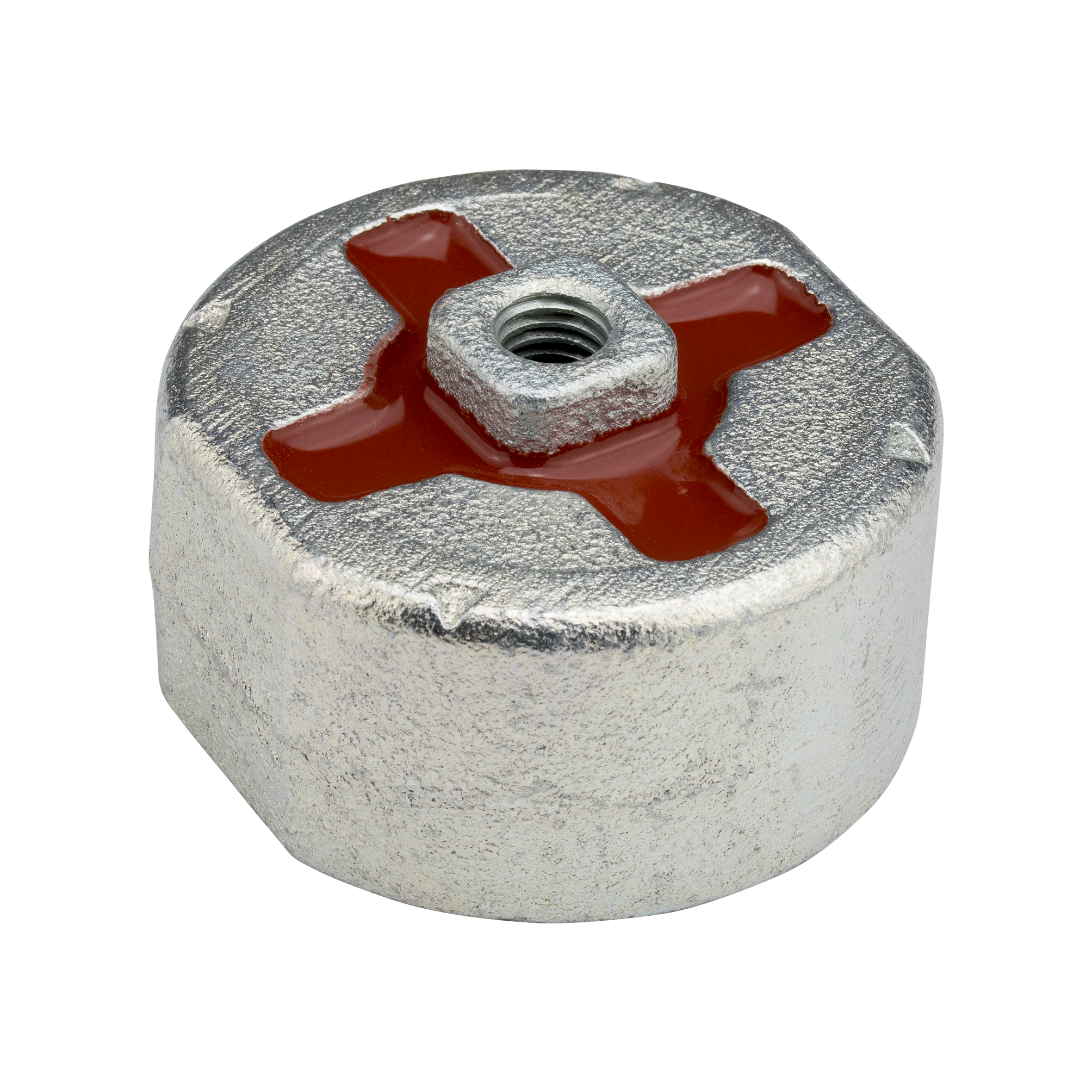

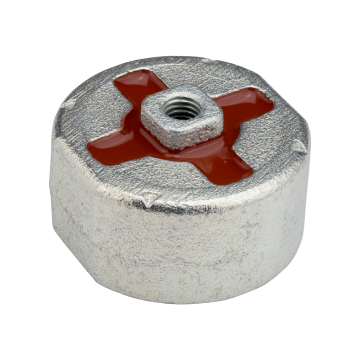

PHONOLYT® Button, M10, galvanised

Art.no.: 120442
Sales unit: 1 Pieces
Weight/item: 0.368 kg

Field of application

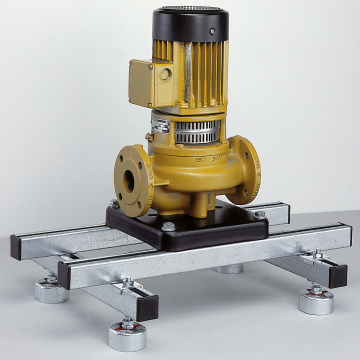

  • Ideal for vibration controlled fixing of devices such as boilers, pumps, motors, air-conditioning and ventilation systems, also vessels, MPC-Support channels, etc.

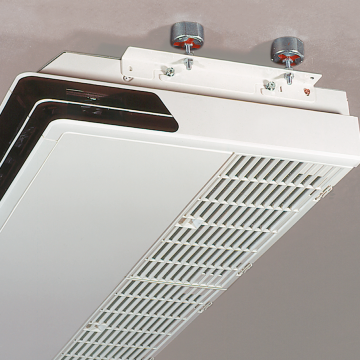

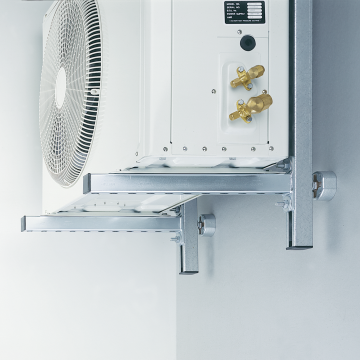

  • Suitable for ceiling, wall or floor mounting
  • For sound-decoupled pipeline fixed points
  • The ideal component for vibration controlled elevating devices to meet the vibration control requirements of DIN 4109 and VDI 4100
  • Various mounting options when used with cross beams and frames made of MPC-Support channels: stable, versatile  and optionally expandable

Advantages

  • High-performance anchor point attachments with outstanding structure-borne noise reduction of up to 30 dB(A)
  • High loading capacity in all directions
  • Time-saving fitting due to only one connection thread on each side
  • Adjustment using threaded pins or rods
  • Security provided by undercut vulcanised-in anchor
  • Effective isolation of vibration coupling using vulcanised-in MÜPROLAN
  • Silicone-free
Material:
Steel
Customs tariff number:
73269060
eCl@ss 11.1:
23-18-90-90
eCl@ss 7.1:
25-02-04-12
Surface:
galvanised
Vibration control tested:
Yes

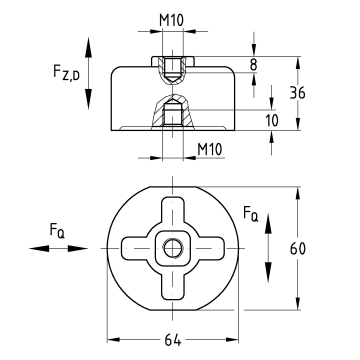

Max. recommended compression load:
1500 N
Max. recommended tensile load:
1500 N

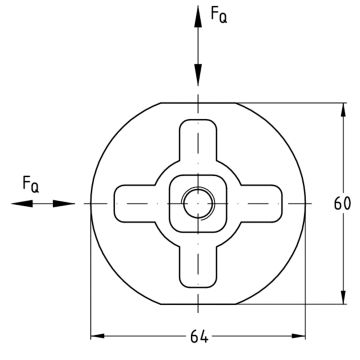

Max. recommended load lateral:
1500 N

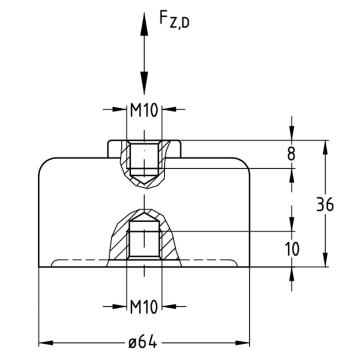

Connecting thread:
M10
Basic data text:
PHONOLYT® Button, M10, galvanised
Average vibration reduction:
30 dB(A)
