Field of application

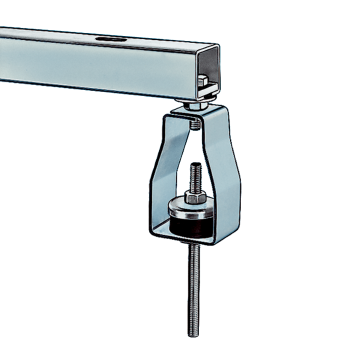

  • Vibration control of traverses and pipe bridges made of MPC-Support channels

Advantages

  • Noise decoupling integrated into the hanger
  • Very good vibration improvement of up to 17 dB(A) due to the highly elastic DÄMMGULAST® Spring element
  • Attachment for threaded rods M8, M10 or alternatively for stripmounting, depending on type
  • The design for strip-mounting is also suitable for suspension attachment by means of hanger sockets
  • Subsequent height adjustment of the threaded rods is possible
Surface:
galvanised
Average vibration reduction:
17 dB(A)
Vibration control tested:
Yes
