Duct fixing bracket Type I

Duct fixing bracket

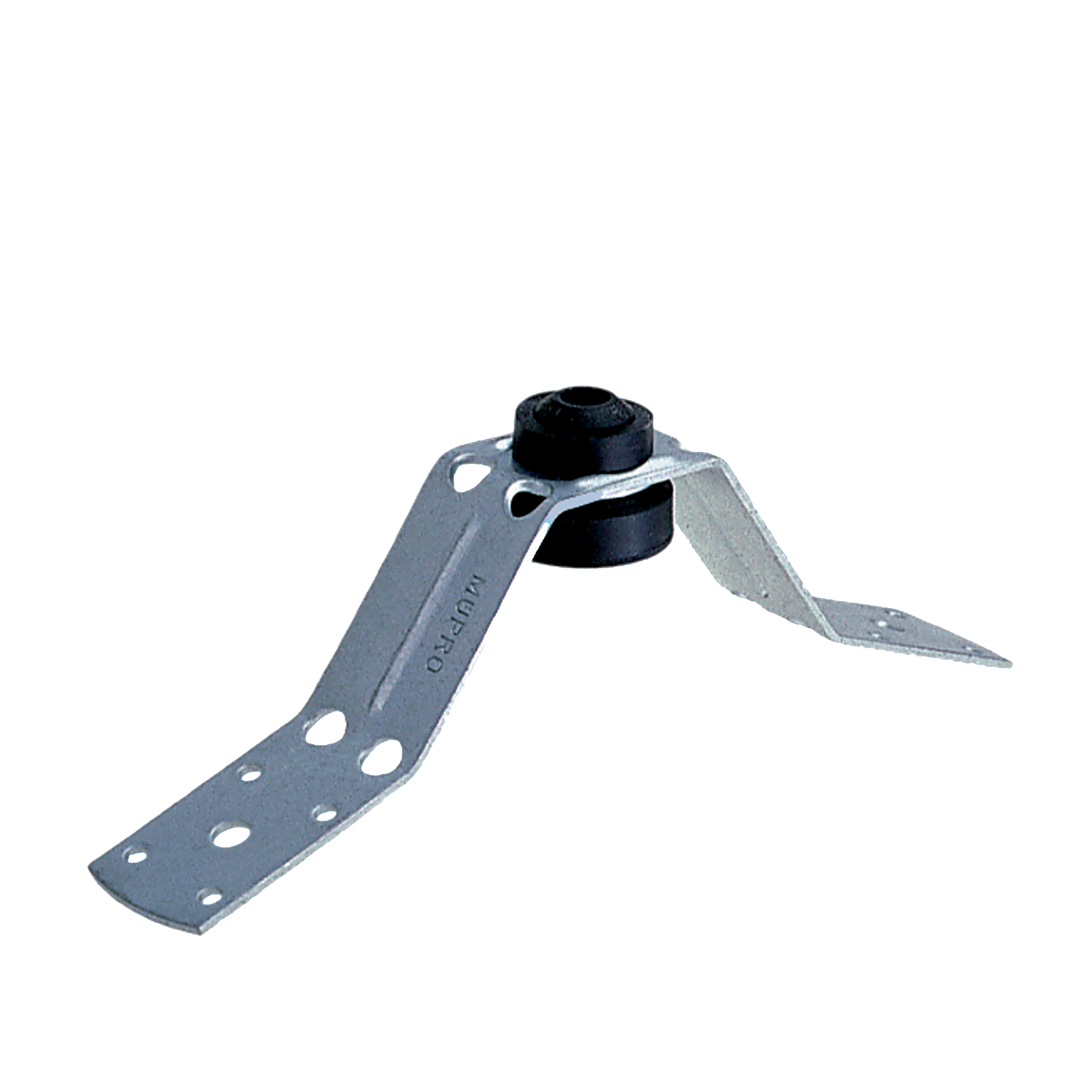

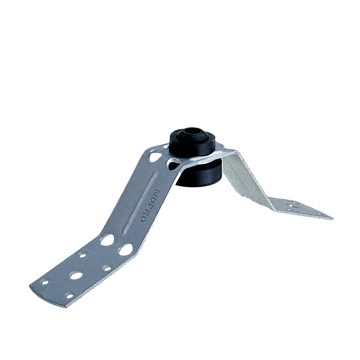

Duct fixing bracket with insulator, galvanised

Art.no.: 116516
Sales unit: 100 Pieces
Weight/item: 0.113 kg

Field of application

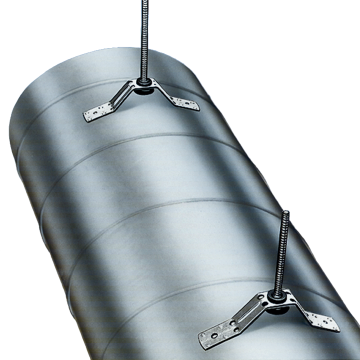

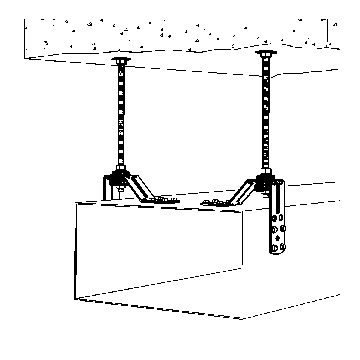

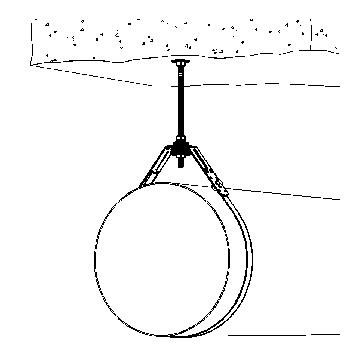

  • For vibration-isolated suspension of round and rectangular air ducts

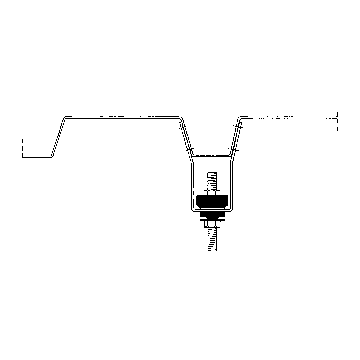

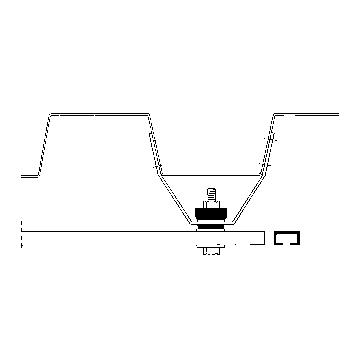

  • Versatile application options, e.g. on trapezoidal corrugated metal sheeting for the suspension of MPC-Support channels

Advantages

  • DÄMMGULAST® Spring element integrated in the duct fixing bracket
  • Average vibration reduction of 16 dB(A)

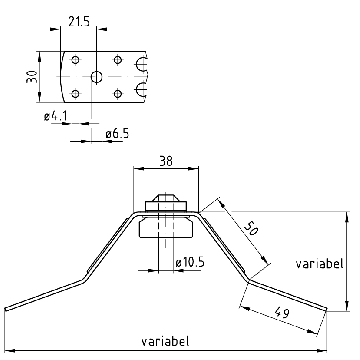

  • Ideal adaptation to all duct diameters and cross-sections due to pre-determined bending points
  • Simple attachment to the air duct with rivets or self-drilling screws
  • Suspension of the duct fixing bracket from threaded rods or direct attachment to the structure
Max. recommended load:
230 N
Material:
Steel
eCl@ss 7.1:
22-41-15-90
Product type:
Ventilation mounting suspensions
Average vibration reduction:
16 dB(A)
Customs tariff number:
73269060
Basic data text:
Duct fixing bracket with insulator, galvanised
eCl@ss 11.1:
22-41-15-90
Vibration control tested:
Yes
Surface:
galvanised
Type:
Type I
